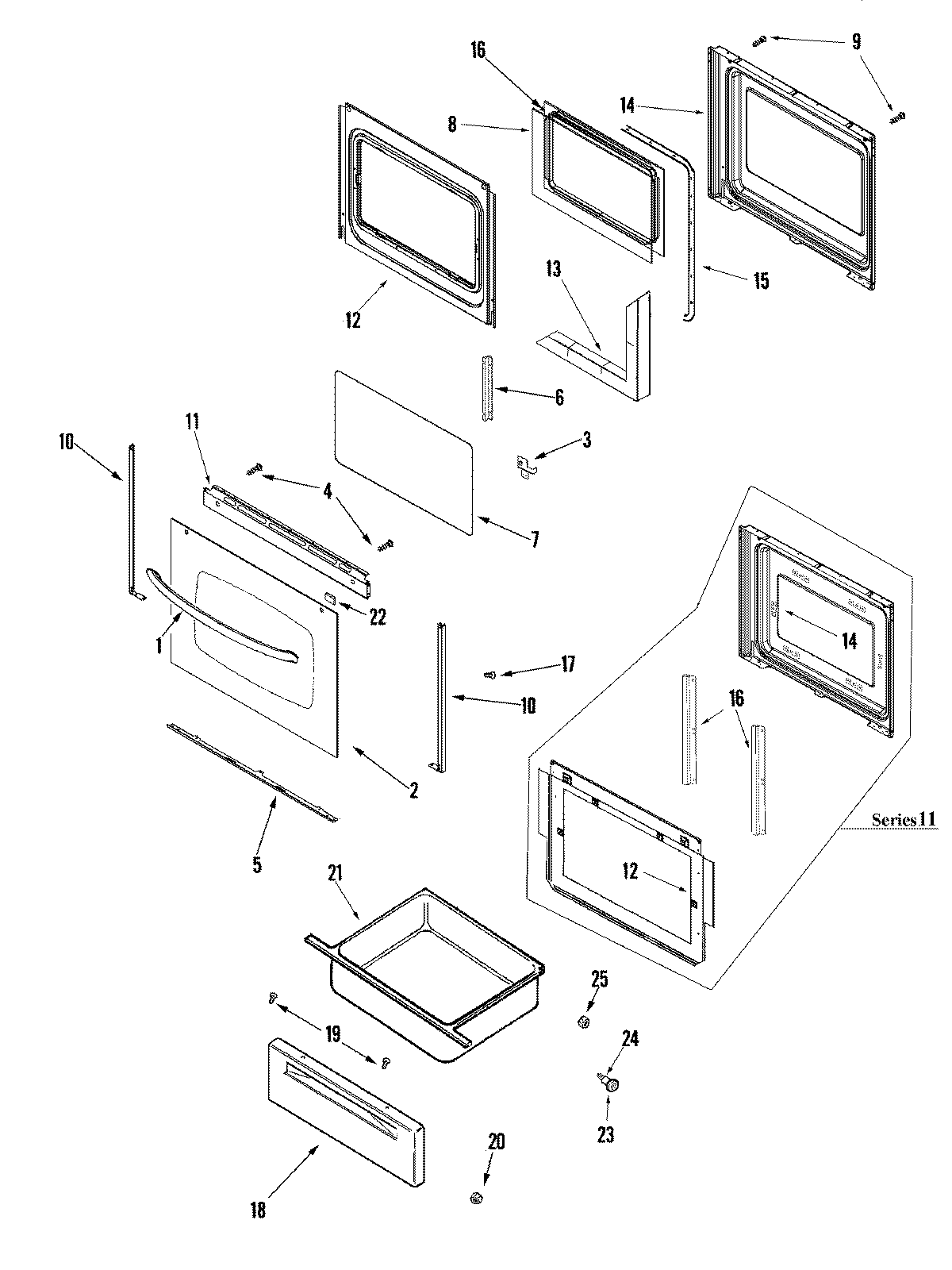

AER5722BAW 03 – DOOR/DRAWER

Products

Position	Product
1	HANDLE, DOOR (WHT)
2	TAPE, FOIL 29“ X 2“
2	MAY 74009732
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP74004224 Whirlpool Tape
10	WP3608F117-71 Whirlpool Door Trim
10	WP3608F116-71 Whirlpool Door Trim
10	TRIM, DOOR (BSQ-LT)
10	TRIM, DOOR (BSQ-RT)
11	WP3608F141-71 Whirlpool Door Trim
12	MAY 74011339
12	MAY 7101P356-60
12	3601F373-51 Whirlpool Baffle
13	INSULATION, OVEN DOOR
14	SCREW
14	WP74005546 Whirlpool RU Spacer
14	LINING, DOOR
14	MAY 74003642
15	GASKT-DOOR OVEN
16	3801F886-51 Whirlpool Mounting Bracket
16	SCREW, 8 X 1/2
16	FRAME, GLASS
17	WP98008544 Whirlpool Screw Assembly
18	MAY 74003399
20	WPW10131078 Whirlpool Nut Assembly
21	MAY 74008337
22	SPACER, RUBBER (BLK-SQUARE)
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
