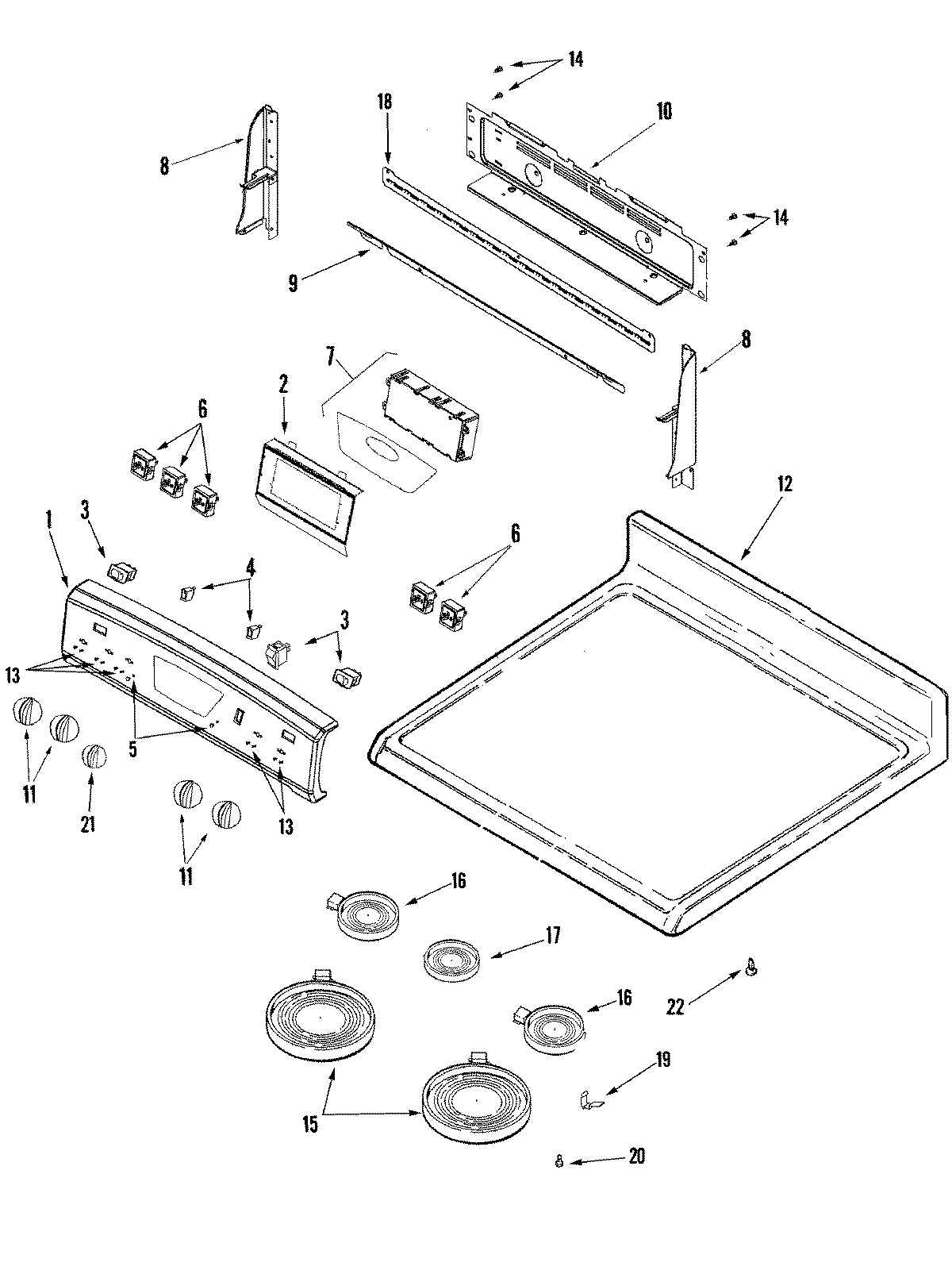

AER5722CAS 02 – CONTROL PANEL/TOP ASSEMBLY

AER5722CAS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5722CAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011343
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
674011070 Whirlpool Infinite Switch
6MAY 74006589
75701M760-60 Whirlpool Electronic Control Board
8WP74003976 Whirlpool Screw
8MAY 74010202
8MAY 74010201
8WP98008545 Whirlpool Screw
9MAY 74009978
10MAY 74010983
10WP90767 Whirlpool Screw
11MAY 74008731
12MAY 74011404
13SCREW
14SCREW (6ABX.25-ZN)
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74008571
18MAY 74009701
198004P093-60 Whirlpool Support C
20SCREW (10ABX1.0-ZN)
20MAY 71001394
21MAY 74008892
22W11189172 Whirlpool Glide Drawer
