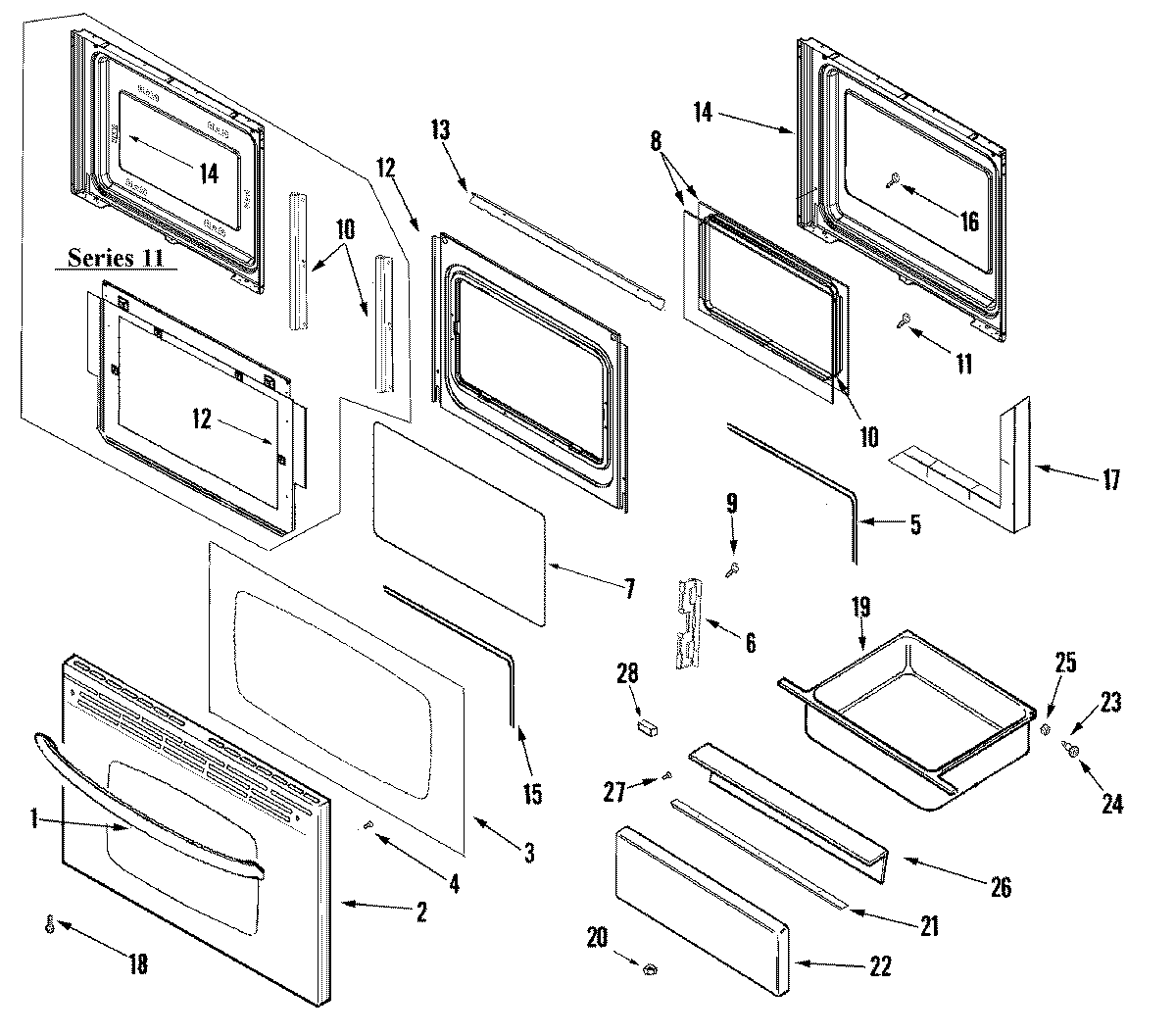

AER5722CAS 03 – DOOR/DRAWER (STL)

AER5722CAS 03 – DOOR/DRAWER (STL)

Written by

in

AER5722CAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74010924
2MAY 74011227
2MAY 74010233
3MAY 74010042
4NUT, SNAP (ROUND-BLK)
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
10SCREW, 8 X 1/2
103801F886-51 Whirlpool Mounting Bracket
10FRAME, GLASS
123601F373-51 Whirlpool Baffle
12MAY 74011339
13MAY 74010040
14LINING, DOOR
14MAY 74003642
15GASKT-DOOR OVEN
17INSULATION, OVEN DOOR
18SCREW
19MAY 74008337
20WPW10131078 Whirlpool Nut Assembly
21HANDLE, DRAWER (STL)
22MAY 74009842
23SHAFT, STORAGE DRAWER ROLLER
24WP74004078 Whirlpool Door Roller
25WP488130 Whirlpool Air Conditioner Nut
26LINING, DRAWER PANEL
