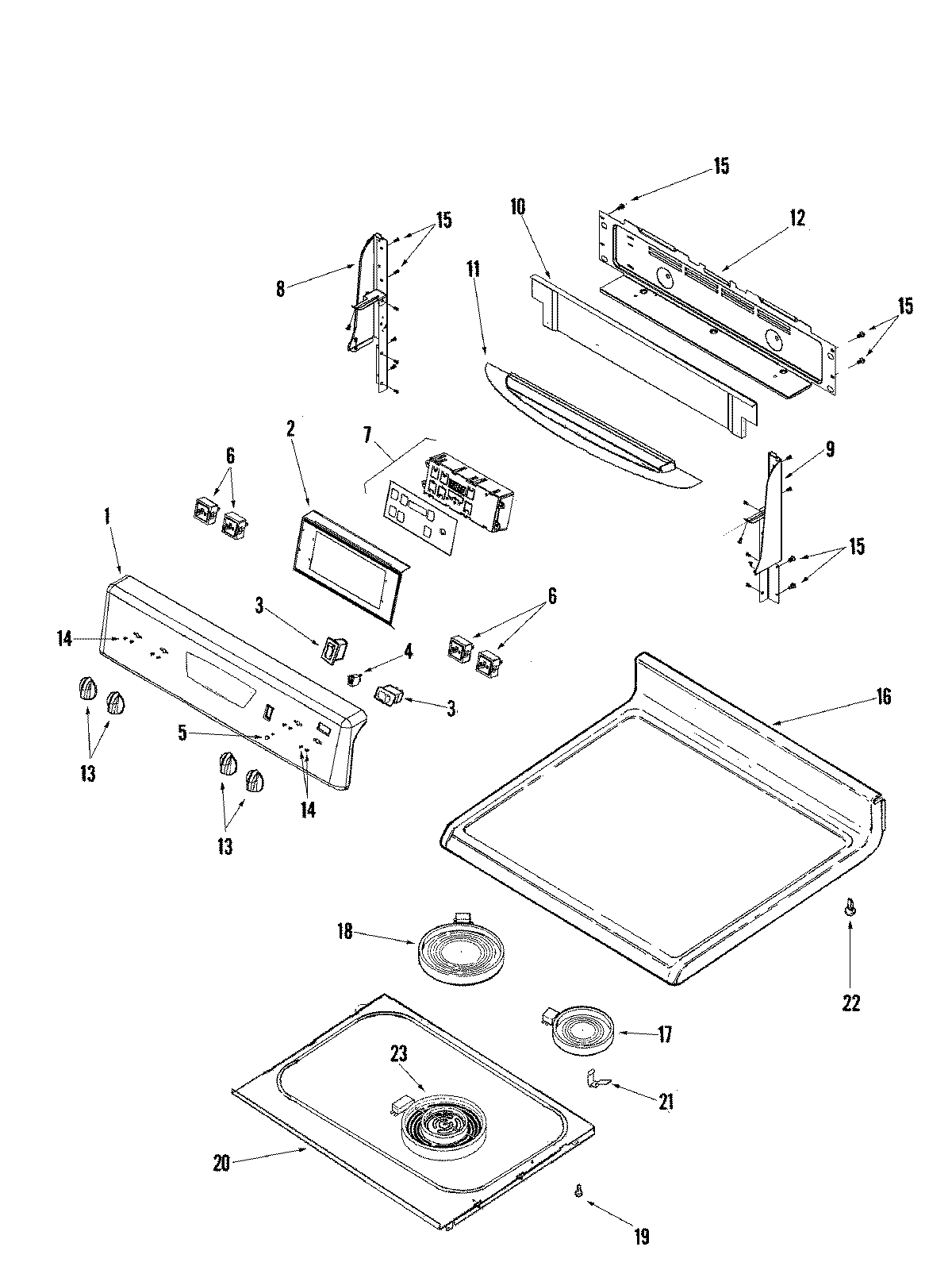

AER5725QAF 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009046
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M719-60 Whirlpool Electronic Control Board
7WP5701M717-60 Whirlpool Electronic Control Board
8Latch Assembly
9END CAP (RT-WHT)
10MAY 74008726
10MAY 74009206
11MAY 74008728
11MAY 74009203
12MAY 74008836
12MAY 74008730
14SCREW
16MAY 74008525
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18W10823696 Whirlpool Radiant Surface Element
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
