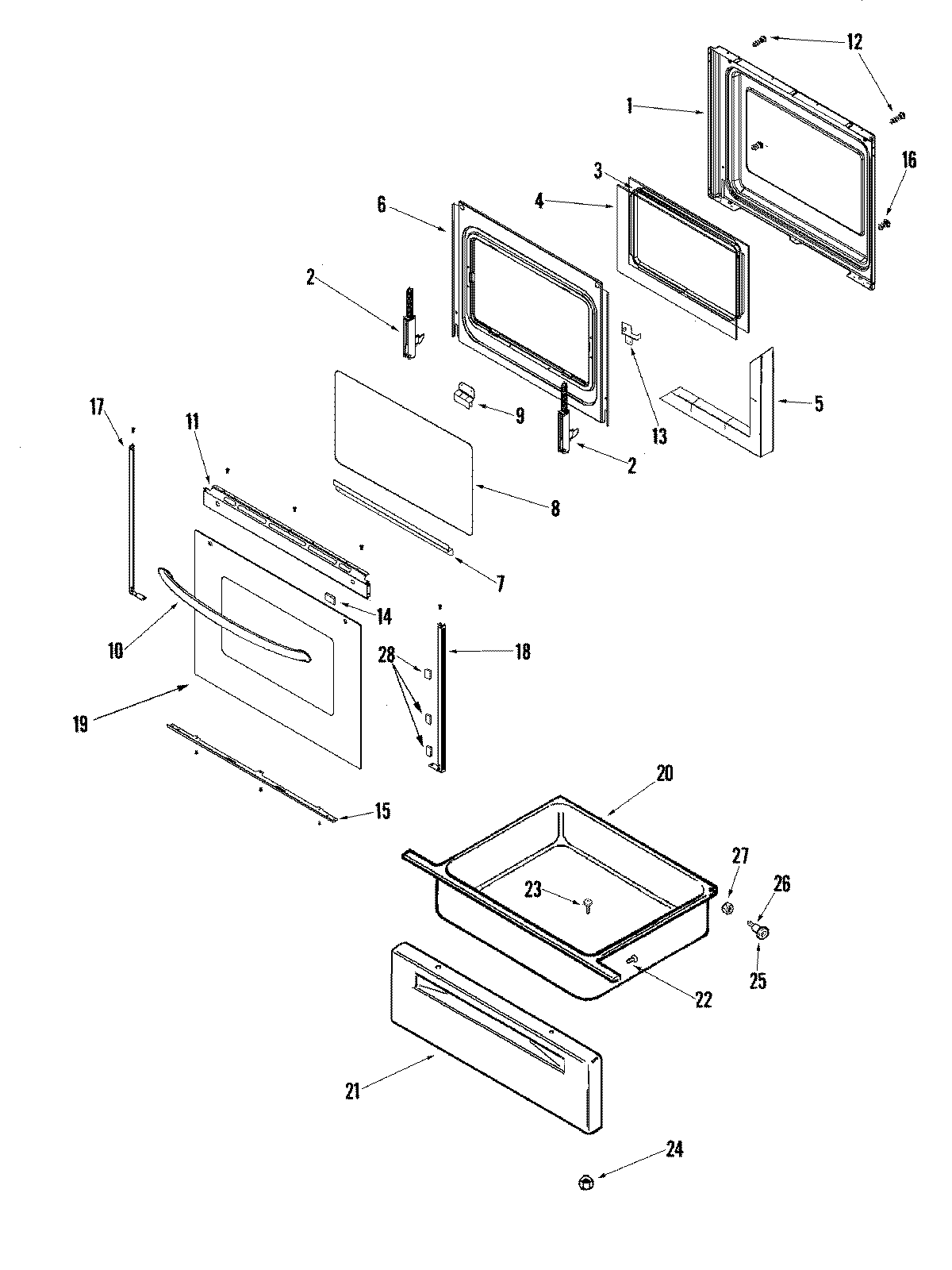

AER5725QAF 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008742
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10HANDLE, DOOR (WHT)
11WP98008544 Whirlpool Screw Assembly
11MAY 74008747
12WP74006515 Whirlpool Washer Screw
13MAY 74008749
13MAY 74008750
14WP74004224 Whirlpool Tape
15WP3608F092-71 Whirlpool Bottom Trim
16SCREW (10-24X5/16-NI)
17MAY 74008753
17TRIM, SIDE (BSQ)
18MAY 74010561
18MAY 74008751
19Glass, Door (White)
20DRAWER, STORAGE
21Panel, Drawer (White)
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28WP74009014 Whirlpool Double Tape
