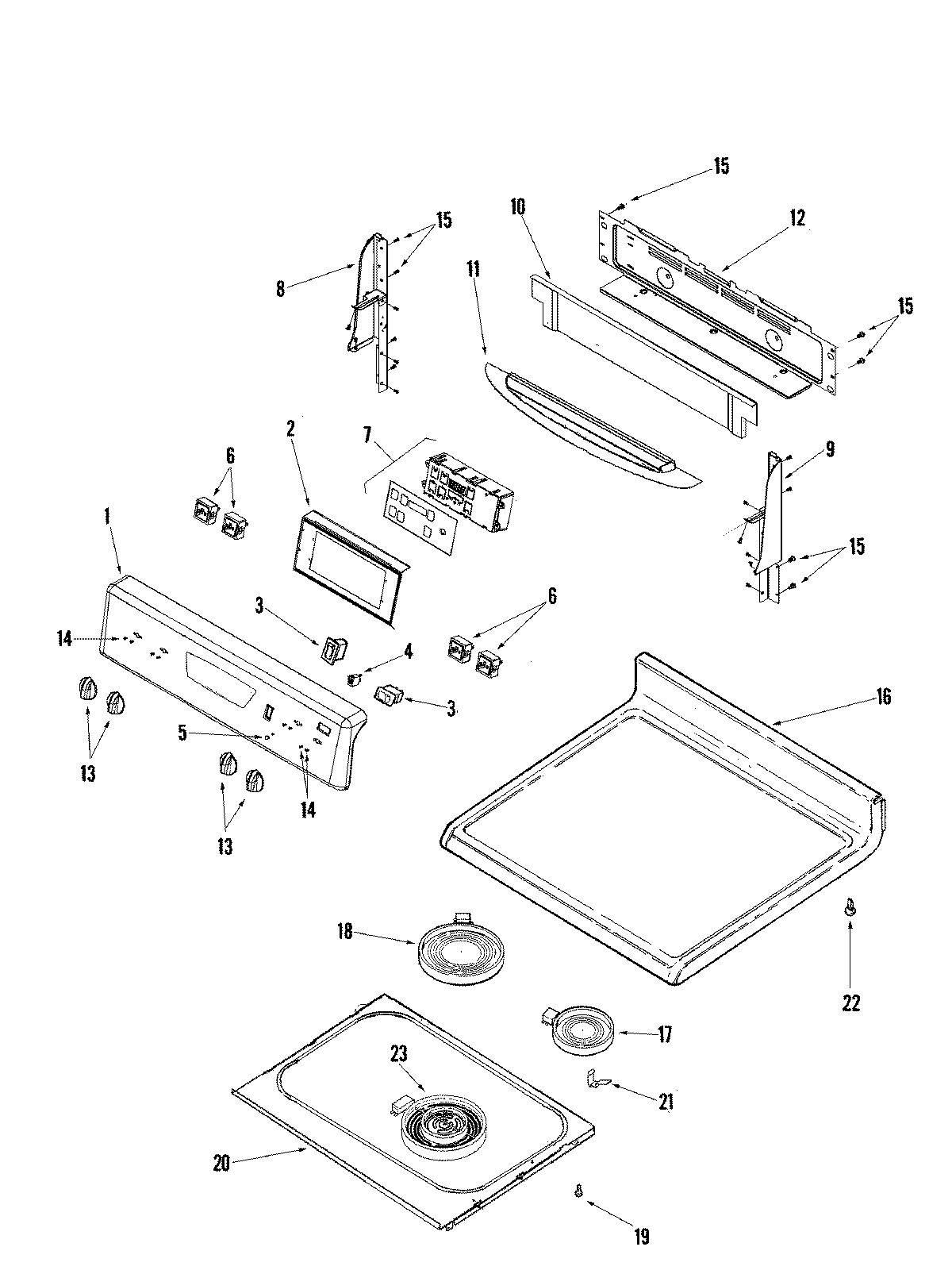

AER5725QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009047
2	MAY 74008716
3	74008765 Whirlpool Range Oven Rocker Switch Bisque
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74008633
7	MAY 74009212
8	END CAP (LT-BSQ)
9	END CAP (RT-BSQ)
9	END CAP (RT-WHT)
10	MAY 74008727
10	MAY 74009207
11	SHIELD, HEAT VISOR (BSQ)
11	MAY 74008729
12	MAY 74008730
12	MAY 74008836
13	MAY 74008732
14	SCREW
16	MAY 74008526
17	W10823711 Whirlpool Surface Element Left Front and Right Rear
18	W10823696 Whirlpool Radiant Surface Element
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
