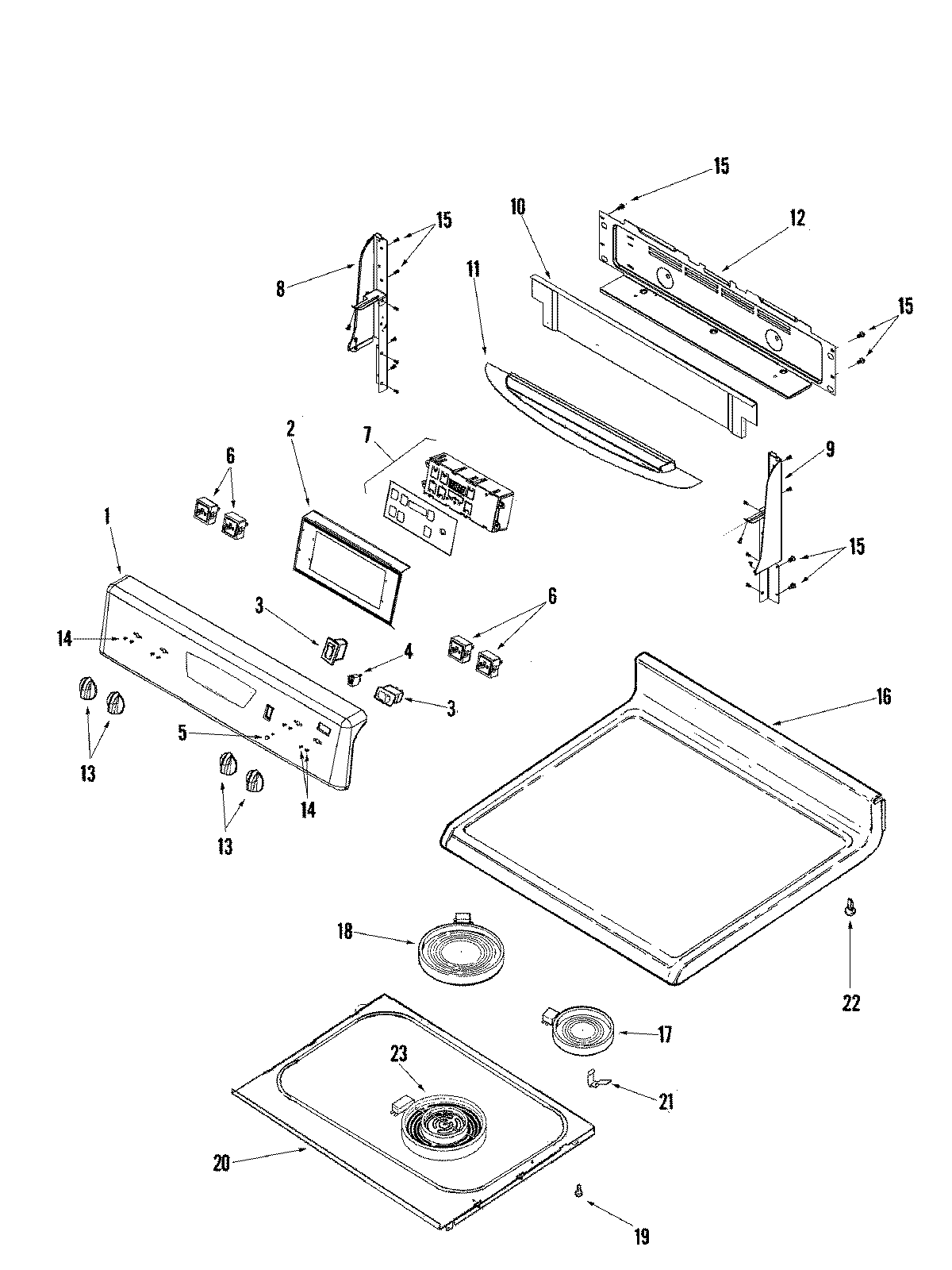

AER5725QAW 03 – CONTROL PANEL/TOP ASSEMBLY

AER5725QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5725QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009046
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7WP5701M719-60 Whirlpool Electronic Control Board
7WP5701M717-60 Whirlpool Electronic Control Board
8Latch Assembly
10MAY 74009206
10MAY 74008726
11MAY 74008728
11MAY 74009203
12MAY 74008730
12MAY 7002P361-60
12MAY 74008836
14SCREW
16MAY 74008527
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18W10823696 Whirlpool Radiant Surface Element
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
