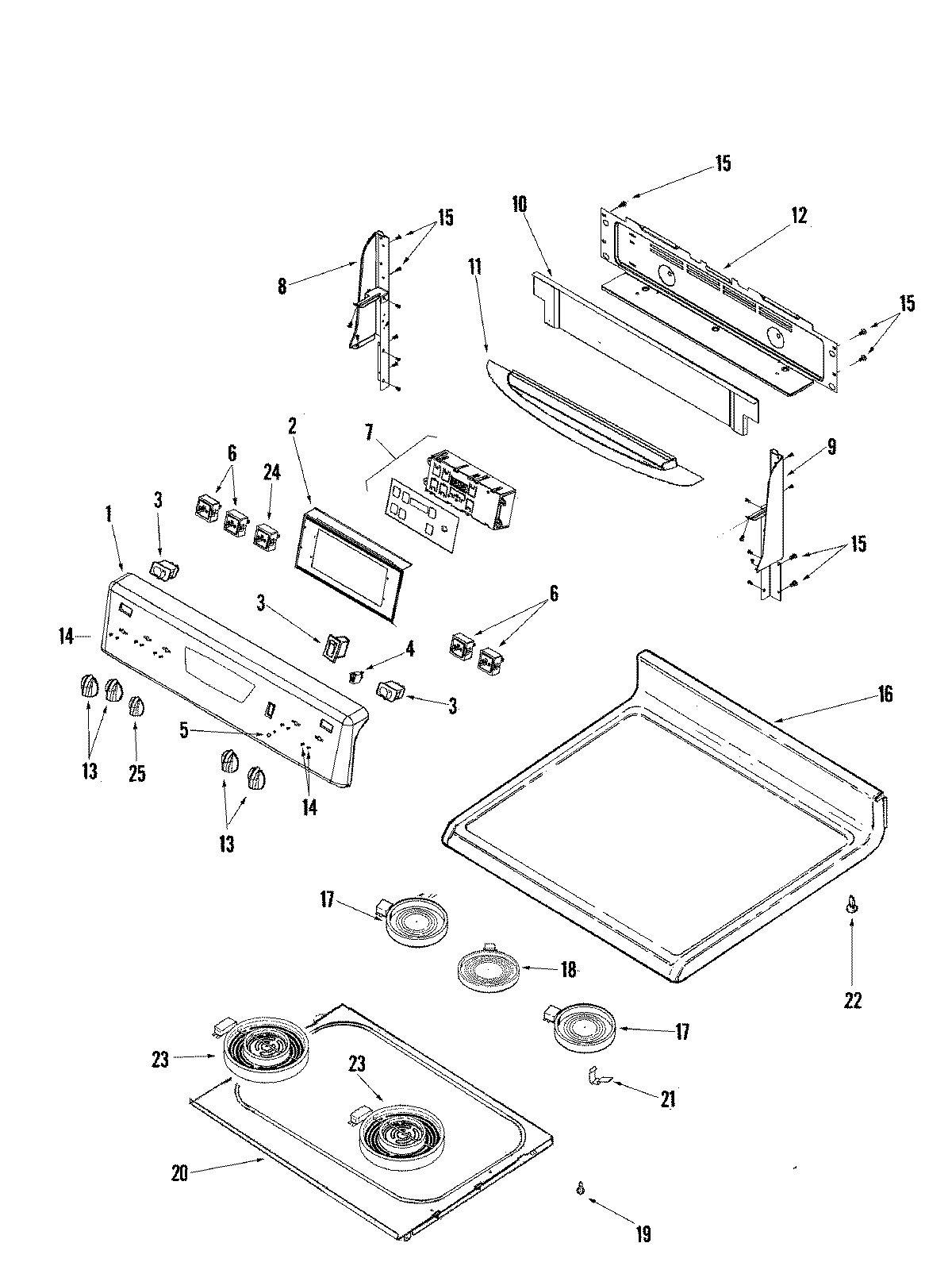

AER5735QAB 03 – CONTROL PANEL/TOP ASSEMBLY (BLK/STL)

Products

PositionProduct
1MAY 74009113
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74008637
7MAY 74009220
8MAY 74008719
9MAY 74008722
10MAY 74009205
10MAY 74008725
11MAY 74009202
11MAY 74008891
12MAY 74008836
12MAY 74008730
13MAY 74008731
14SCREW
16MAY 74008533
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18MAY 74008898
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24MAY 74006589
25MAY 74008892
