AER5735QAF 03 – CONTROL PANEL/TOP ASSEMBLY

AER5735QAF 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

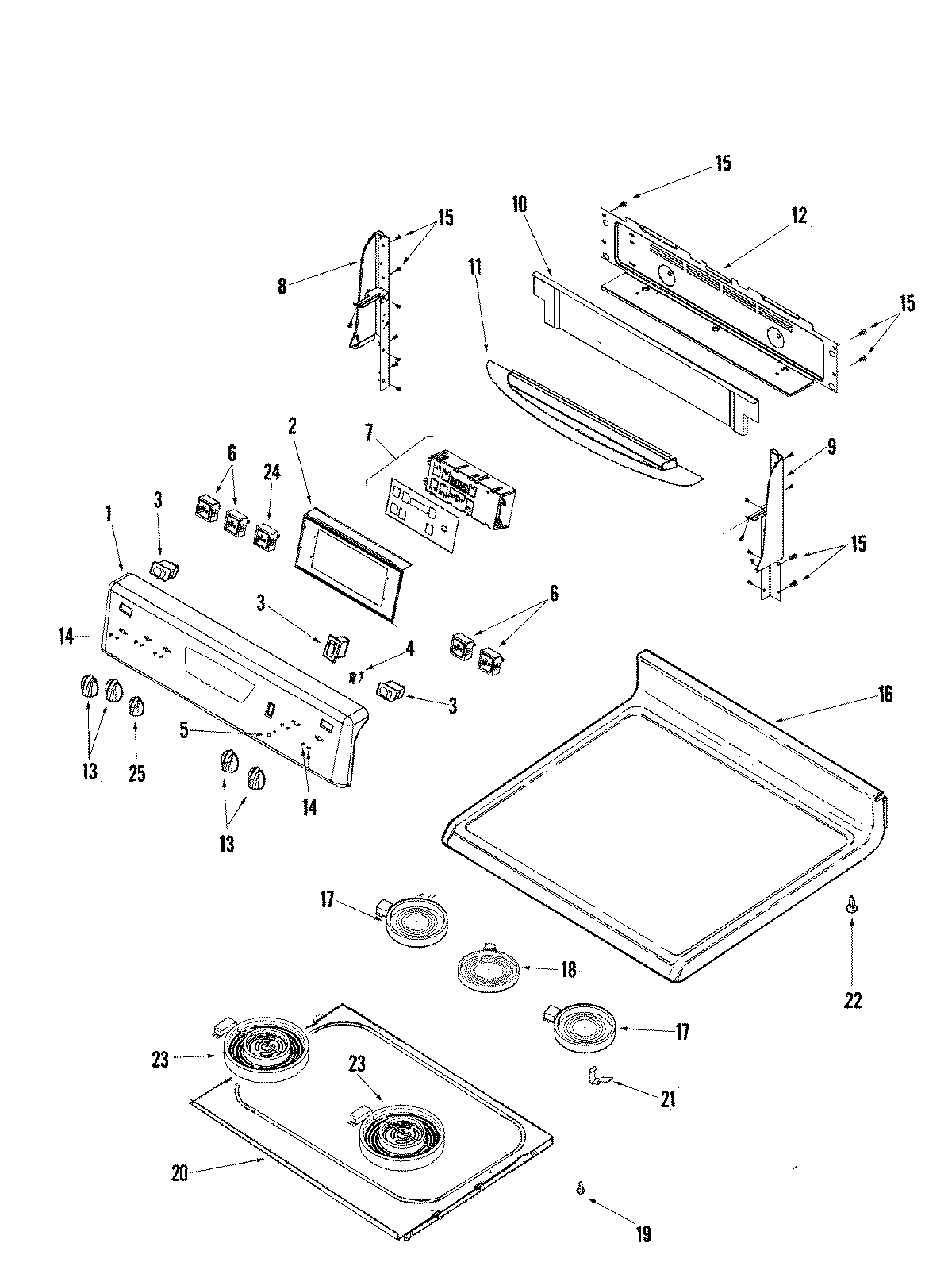

AER5735QAF 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009111
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74009218
7MAY 74008635
8Latch Assembly
9END CAP (RT-WHT)
10MAY 74009206
10MAY 74008726
11MAY 74009203
11MAY 74008728
12MAY 74008836
12MAY 74008730
14SCREW
16MAY 74008535
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18MAY 74008898
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24MAY 74006589
25MAY 74008911
