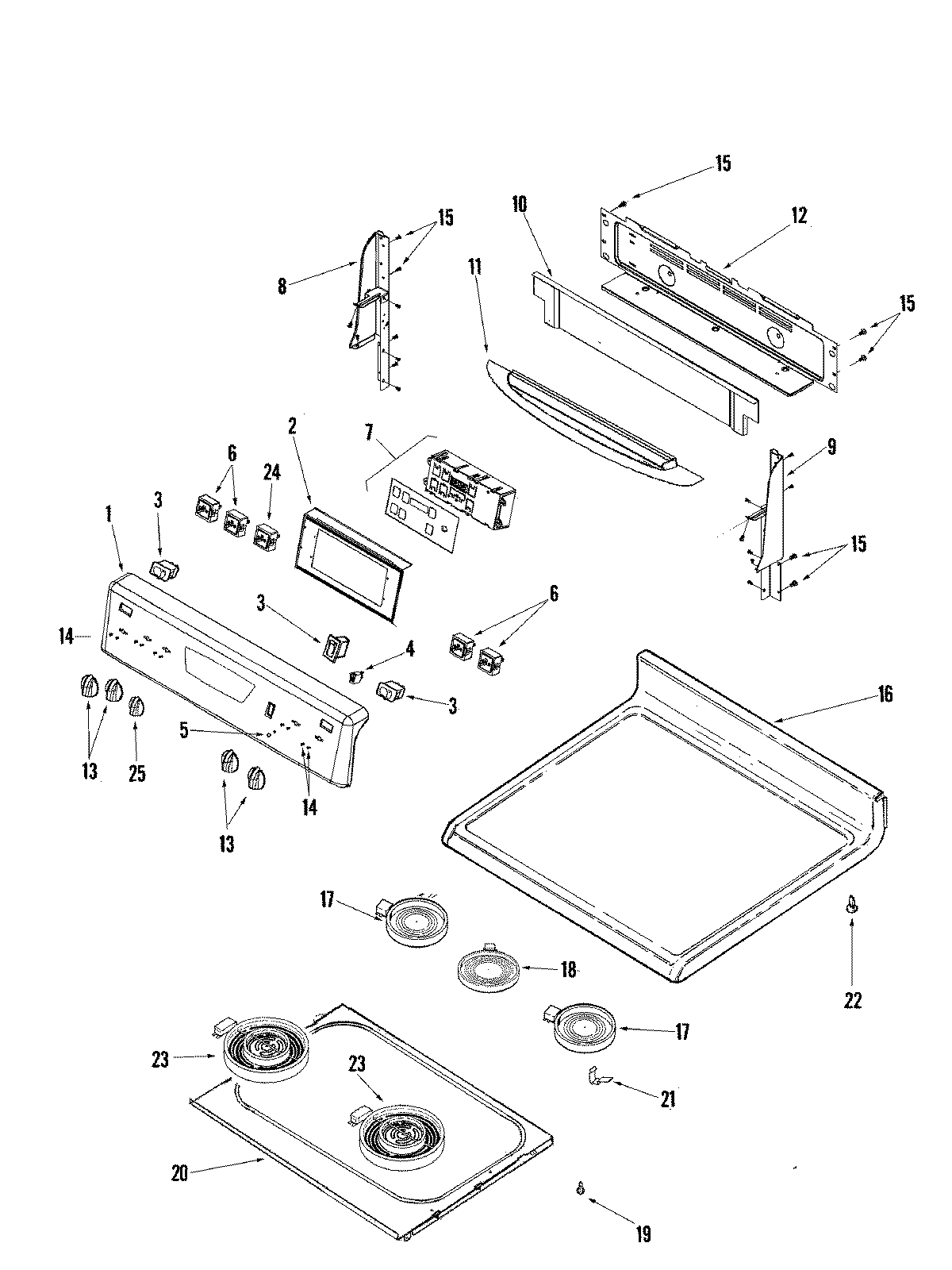

AER5735QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009112
2	MAY 74008716
3	74008765 Whirlpool Range Oven Rocker Switch Bisque
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74008636
7	MAY 74009219
8	END CAP (LT-BSQ)
9	END CAP (RT-BSQ)
10	MAY 74009207
10	MAY 74008727
11	MAY 74008729
11	SHIELD, HEAT VISOR (BSQ)
12	MAY 74008730
12	MAY 74008836
13	MAY 74008732
14	SCREW
16	MAY 74008534
17	W10823711 Whirlpool Surface Element Left Front and Right Rear
18	MAY 74008898
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74006589
25	MAY 74008910
