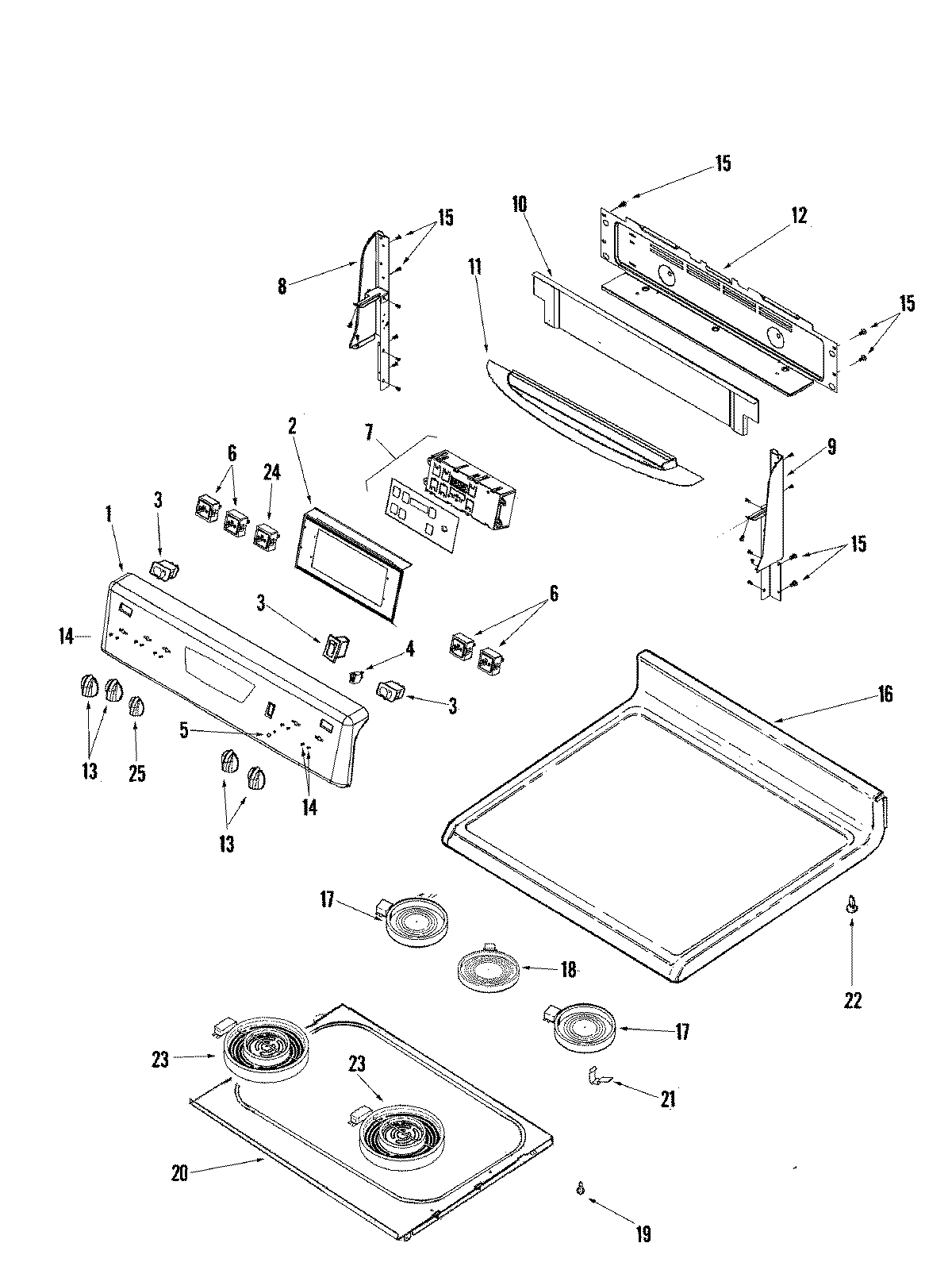

AER5735QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

AER5735QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AER5735QAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009112
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74008636
7MAY 74009219
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74009207
10MAY 74008727
11SHIELD, HEAT VISOR (BSQ)
11MAY 74008729
12MAY 74008730
12MAY 74008836
13MAY 74008732
14SCREW
16MAY 74008536
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18MAY 74008898
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24MAY 74006589
25MAY 74008910
