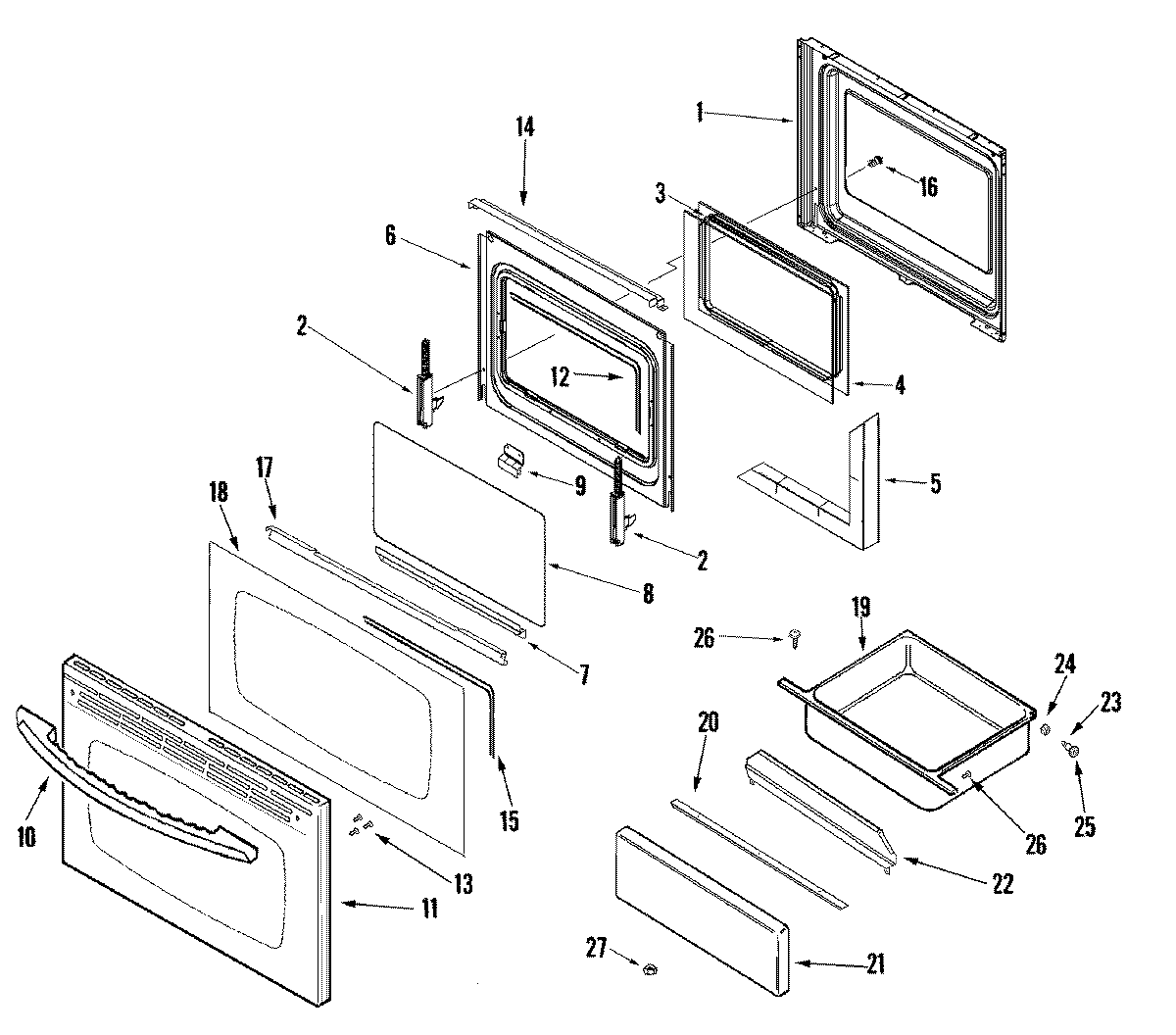

AER5735QAS 04 – DOOR/DRAWER (STL)

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	MAY 74008324
11	MAY 74008913
12	Gasket, Window
13	WP74006515 Whirlpool Washer Screw
14	Baffel, Door
15	WP74009029 Whirlpool Door Gasket
16	SCREW (10-24X5/16-NI)
17	Bracket, Glass
18	MAY 74008855
19	MAY 74008337
20	MAY 74008909
21	12002306 Whirlpool Air Conditioner Drawer Panel Kit
21	MAY 74008912
22	WP3604F390-51 Whirlpool Shield
22	MAY 74009105
22	SCREW
23	SHAFT, STORAGE DRAWER ROLLER
24	WP488130 Whirlpool Air Conditioner Nut
25	WP74004078 Whirlpool Door Roller
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
