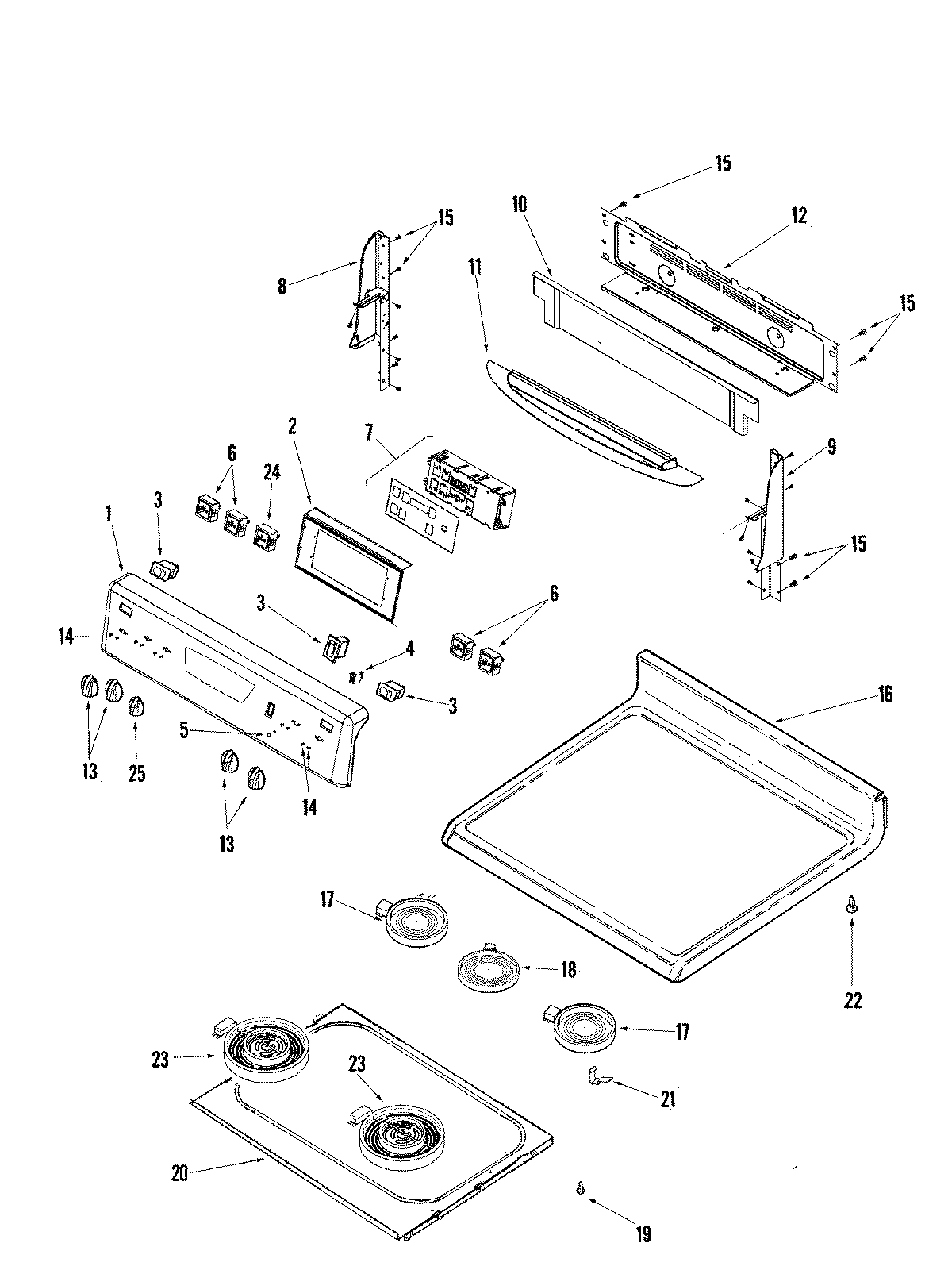

AER5735QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009111
2	MAY 74008716
3	74008717 Whirlpool White Rocker Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74009218
7	MAY 74008635
8	Latch Assembly
9	END CAP (RT-WHT)
10	MAY 74009206
10	MAY 74008726
11	MAY 74009203
11	MAY 74008728
12	MAY 74008836
12	MAY 74008730
14	SCREW
16	MAY 74008537
17	W10823711 Whirlpool Surface Element Left Front and Right Rear
18	MAY 74008898
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74006589
25	MAY 74008911
