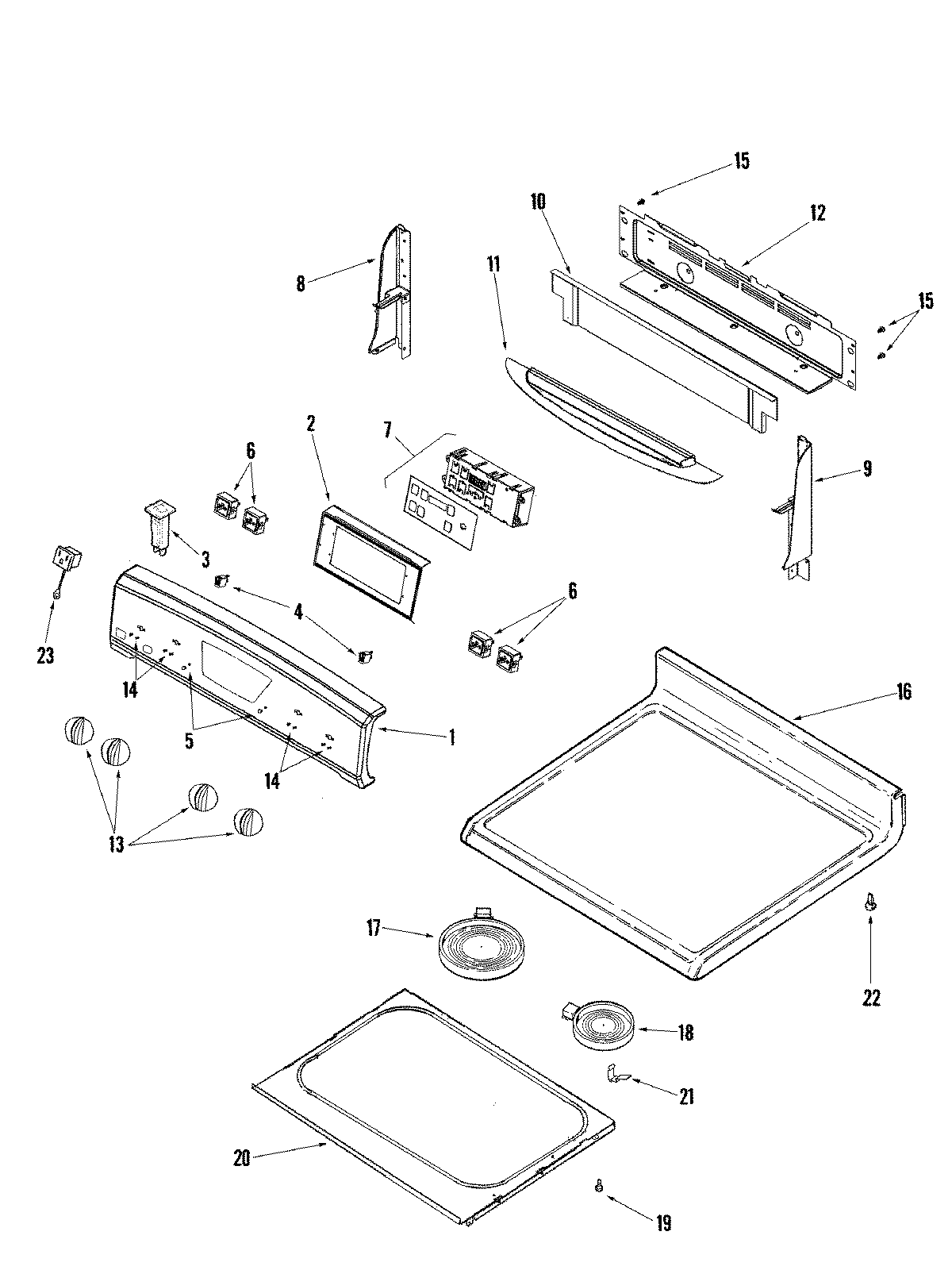

AER5815RCS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011442
2	MAY 74008716
3	MAY 71003070
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74008644
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009444
11	MAY 74009202
12	MAY 7002P361-60
12	MAY 74010983
12	MAY 74008836
13	MAY 74008731
14	SCREW
16	MAY 74008528
17	W10823696 Whirlpool Radiant Surface Element
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	MAY 71003068
