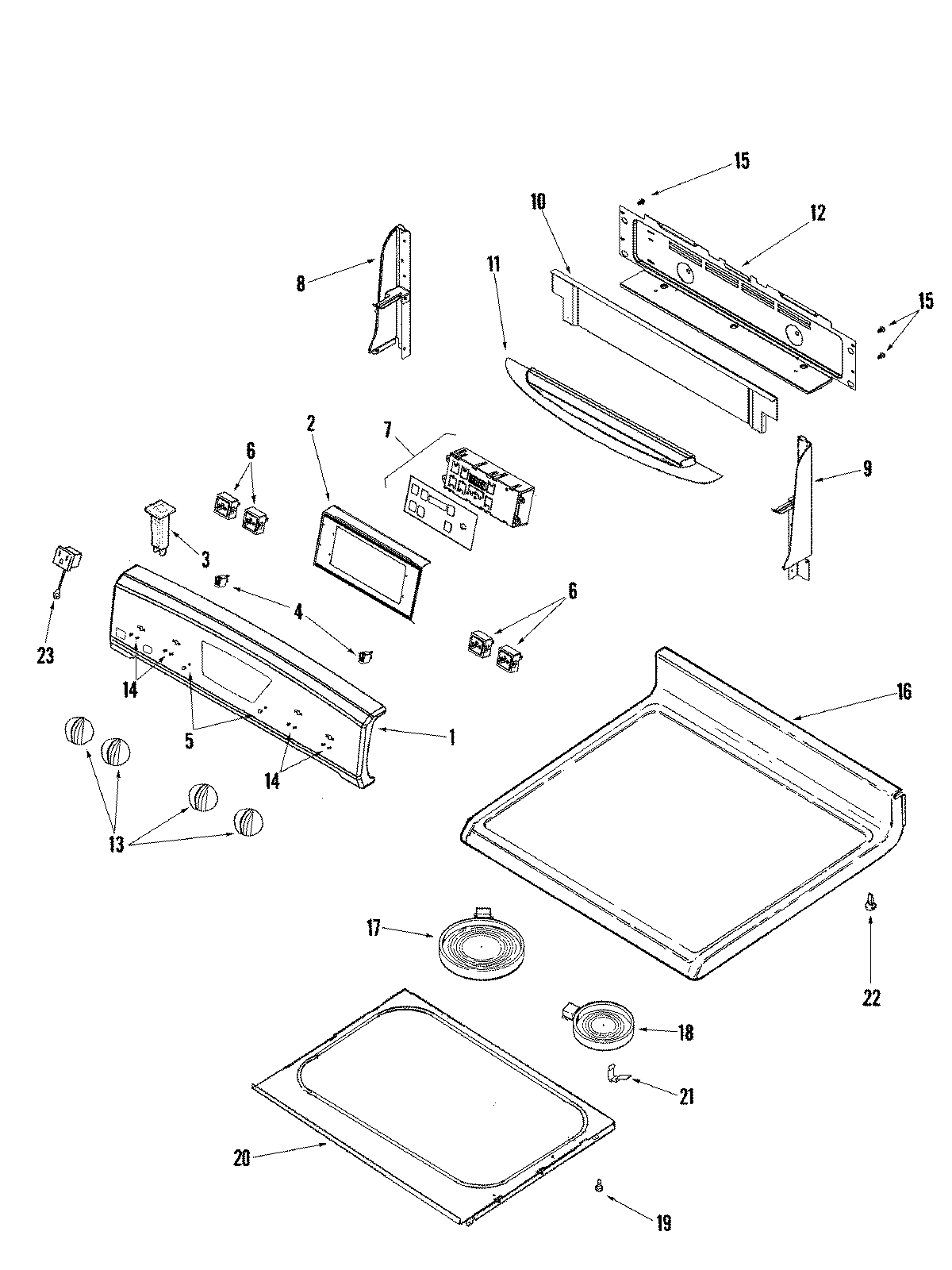

AER5815RCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011441
2	MAY 74008716
3	MAY 74009322
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	MAY 74008638
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009444
11	MAY 74009203
12	MAY 7002P361-60
12	MAY 74008836
12	MAY 74010983
14	SCREW
16	MAY 74008530
17	W10823696 Whirlpool Radiant Surface Element
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	MAY 71003069
