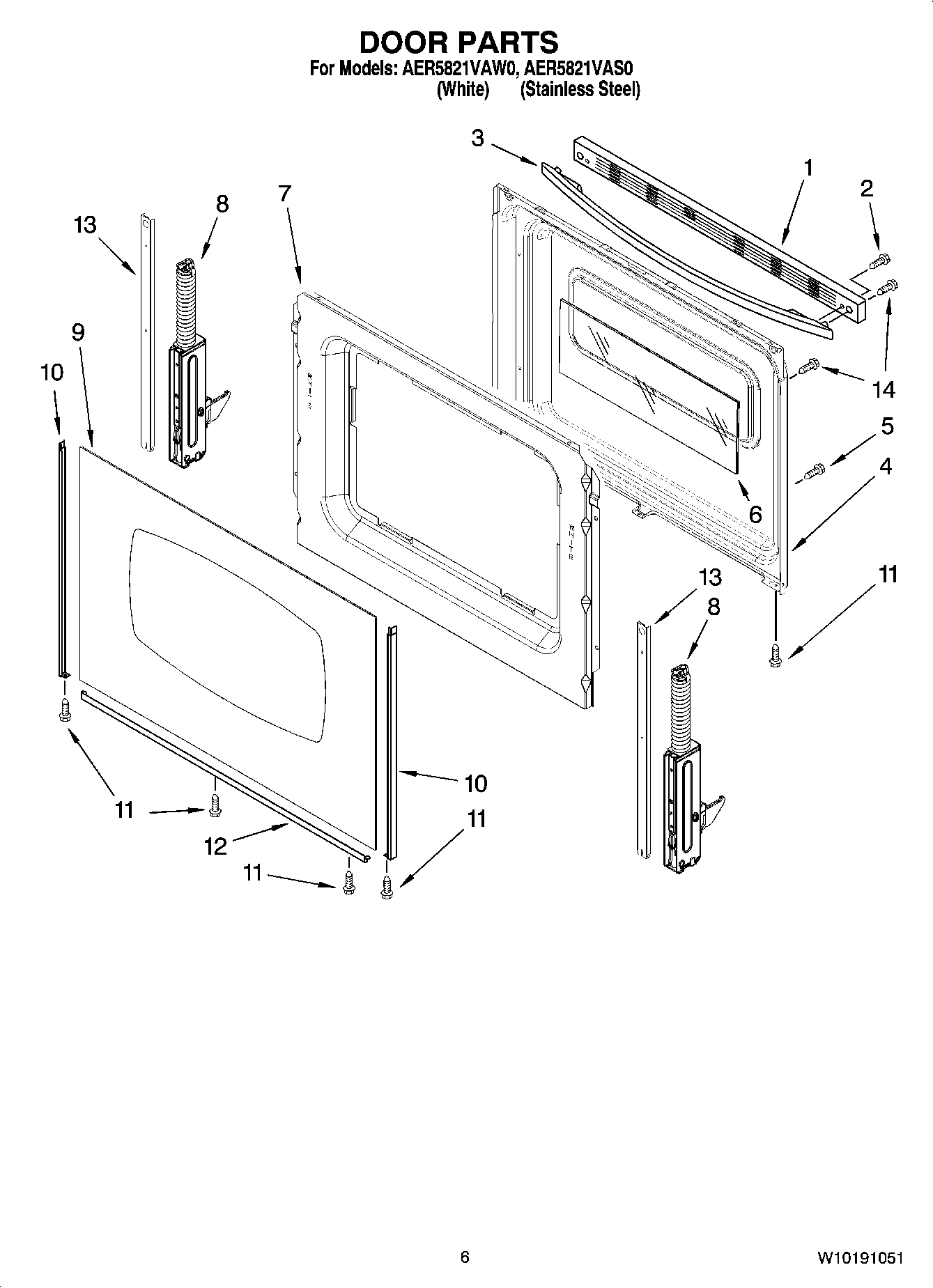

AER5821VAS0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	MAY W10111776
	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
	PAINT, BULK (1 qt.) (Almond (Uncut))
	TIE, CABLE
	MAY W10017440
	MAY 8523279
	MAY 72107
	WIRE, 25â€™ ROLL (RED 14 GA.)
	PAINT, SPRAY (ALMOND)
	WIRING HARNESS PARTS, CLIP, WIRE GROUND
	REFINISHING MATERIAL (GREASE)
	Wire, Blue 14 Ga. 150 c
	MAY W10111770
	MAY W10111769
	Wire, Red 14 Ga. 200 c
	Wire, Brown 14 Ga. 200 c
	Wire, Black 12 Ga. 150 c
	Wire, Yellow 14 Ga. 150 c
	Wire, Orange 14 Ga. 150 c
	Wire, Green 14 Ga. 150 c
	Wire, Brown 14 Ga. 150 c
	HARNESS, SENSOR
	ACCESSORY PARTS, GRID, BROILER PAN AND
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	ACCESSORY PARTS, GLASS CLEANER
	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
	INSULATION (1-1/2" X 24" X 120")
	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
	ACCESSORY PARTS, ALUMINUM FOIL
	INSULATION (2-1/2" X 22" X 120")
	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
	SCREW
	PAINT, BULK (1 QT. WHITE (UNCUT))
	SCREW
	SCREW
1	MAY W10067400
1	Trim, Top (White)
2	MAY 8534065
3	MAY 9758341
3	MAY 9758339
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	Hinge, Door
8	Hinges (2) (Hinge, (Reg. Door))
9	MAY W10175470
9	Glass, Outer (Black / Stainless)
10	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (WHITE (LEFT))
10	TRIM, SIDE (BLACK, RIGHT HAND)
10	TRIM, SIDE (BLACK, LEFT HAND)
11	MAY 3196160
12	TRIM, LOWER (WHITE)
12	Trim, Lower (Black)
13	STRAP, DOOR
14	MAY W10031780
