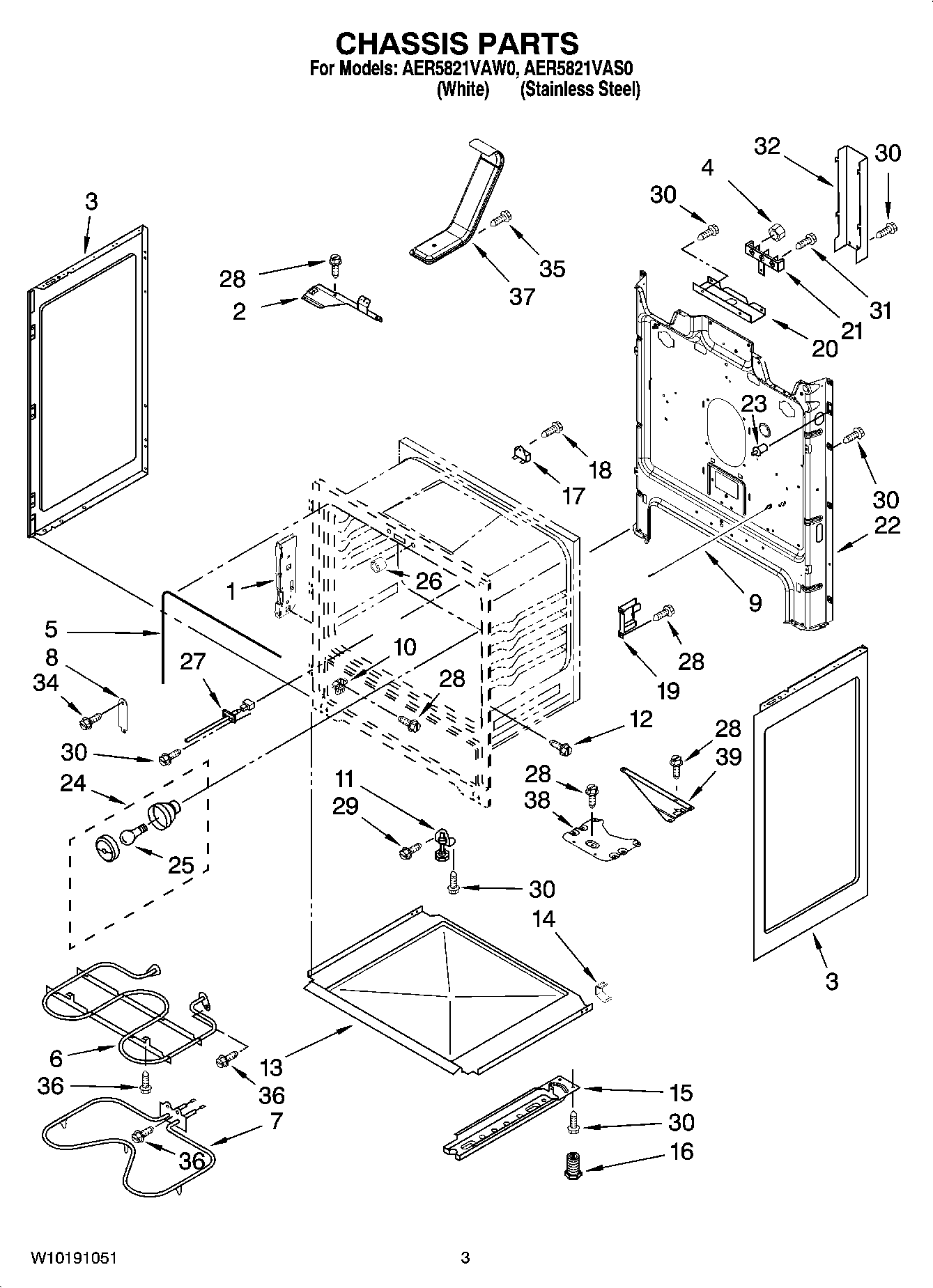

AER5821VAW0 03 – CHASSIS PARTSadmin2025-04-26T08:56:19+00:00AER5821VAW0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| INSULATION, WRAP |
| INSULATION, BACK |
| MAY 8272613 |
| 1 | BRKT - MOUNTING |
| 2 | MAY 8273905 |
| 3 | Panel, Side (2) (White) |
| 3 | MAY 8053832 |
| 4 | WP7103P027-60 Whirlpool Nut |
| 5 | SEAL, DOOR |
| 6 | ELEMENT, BROIL |
| 7 | Element, Bake (Hidden) |
| 8 | Clip,Door Mntg(2) |
| 9 | ROD, DOOR SWITCH |
| 10 | Glide, Drawer |
| 11 | MAY 3196037 |
| 12 | SCREW |
| 13 | RETAINER, INSULATION |
| 14 | MAY 3196576 |
| 15 | RAIL, BASE |
| 16 | FOOT, LEVELING |
| 17 | FUSE, THERMAL |
| 18 | SCREW |
| 19 | MAY 3186116 |
| 20 | BRACKET, SERVICE |
| 21 | Block, Terminal |
| 22 | MAY 8274034 |
| 23 | MAY 9757262 |
| 24 | MAY 3196701 |
| 25 | BULB, OVEN LIGHT |
| 26 | SPACER, DOOR |
| 27 | SENSOR, OVEN |
| 28 | SCREW |
| 29 | Screw |
| 30 | SCREW |
| 31 | SCREW |
| 32 | MAY W10134127 |
| 34 | MAY W10031780 |
| 35 | MAY 3196566 |
| 36 | SCREW |
| 37 | Flue |
| 38 | MAY 3195736 |
| 39 | MAY 3195987 |
