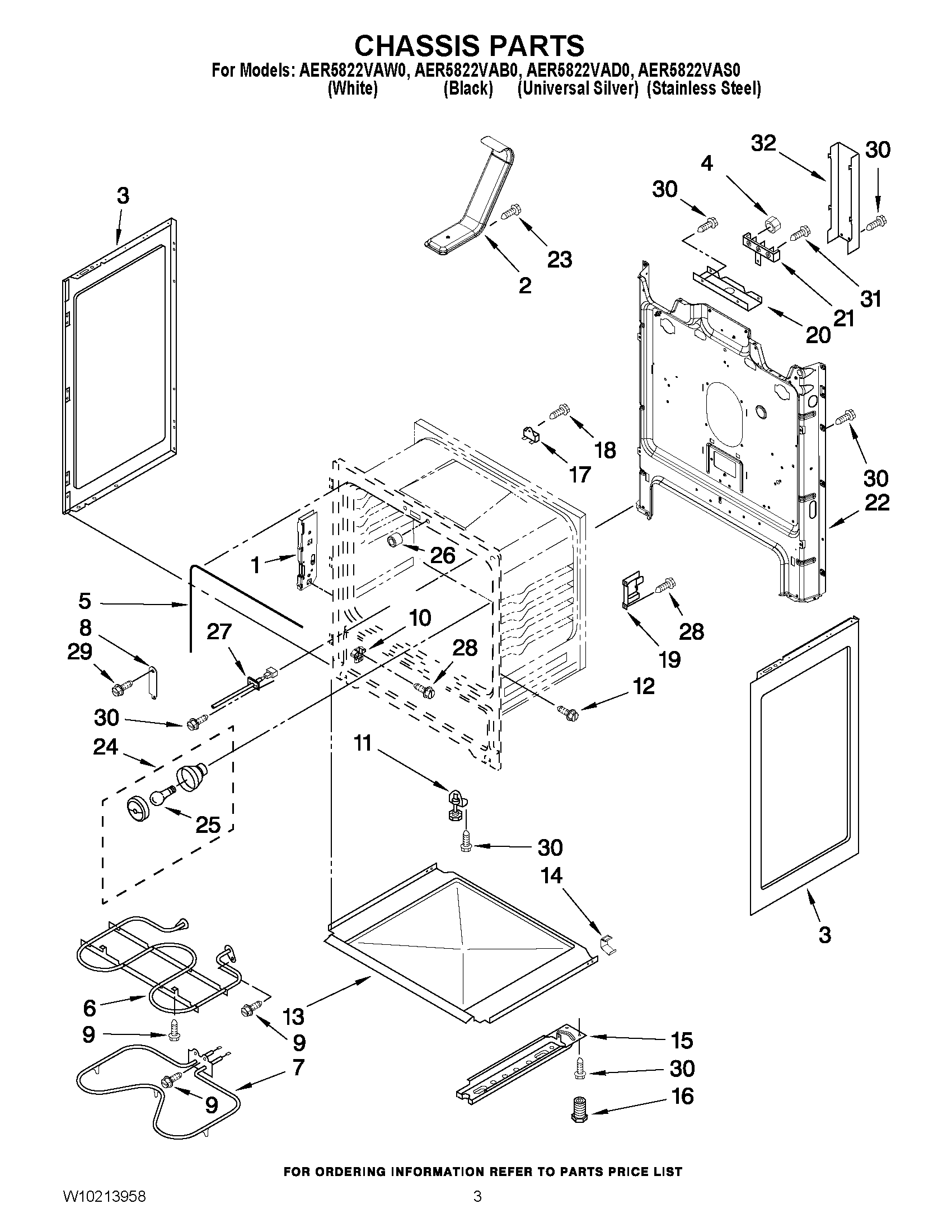

AER5822VAD0 03 – CHASSIS PARTSadmin2025-04-26T08:56:20+00:00AER5822VAD0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | MAY 8272613 |
| NI | INSULATION, WRAP |
| 1 | BRKT - MOUNTING |
| 2 | TUBE, VENT |
| 3 | Panel, Side (2) (White) |
| 3 | MAY 8053832 |
| 4 | WP7103P027-60 Whirlpool Nut |
| 5 | SEAL, DOOR |
| 6 | ELEMENT, BROIL |
| 7 | Element, Bake (Hidden) |
| 8 | Clip,Door Mntg(2) |
| 9 | SCREW |
| 10 | Glide, Drawer |
| 11 | MAY 3196037 |
| 12 | SCREW |
| 13 | RETAINER, INSULATION |
| 14 | CLIP, PANEL |
| 15 | RAIL, BASE |
| 16 | FOOT, LEVELING |
| 17 | FUSE, THERMAL |
| 18 | SCREW |
| 19 | MAY 3186116 |
| 20 | BRACKET, SERVICE |
| 21 | Block, Terminal |
| 22 | MAY 8274034 |
| 23 | MAY 3196566 |
| 24 | MAY 3196701 |
| 25 | BULB, OVEN LIGHT |
| 26 | SPACER, DOOR |
| 27 | SENSOR, OVEN |
| 28 | SCREW |
| 29 | MAY W10031780 |
| 30 | SCREW |
| 31 | SCREW |
| 32 | MAY 9758283 |
