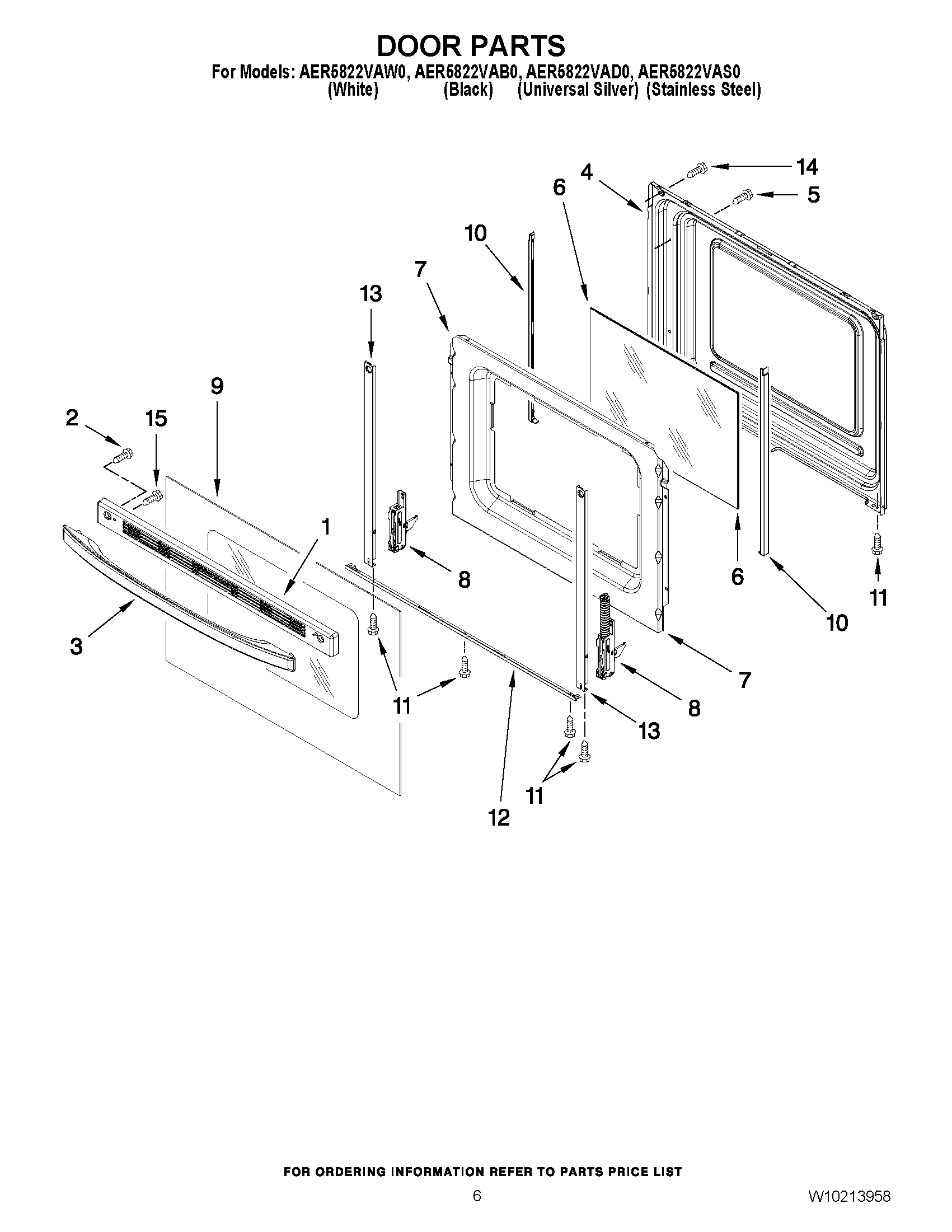

AER5822VAD0 05 – DOOR PARTS

AER5822VAD0 05 – DOOR PARTS

Written by

in

AER5822VAD0 05 – DOOR PARTS

Products

Position	Product
1	MAY W10144869
1	Trim, Top (Black)
2	SCREW
3	MAY W10144889
3	MAY W10144890
3	MAY W10144888
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, DOOR (PASSIVE)
8	HINGE, ACTIVE
8	HINGE, ACTIVE
8	HINGE, ACTIVE (WITH SPRING)
9	Glass, Outer (Black)
9	Glass, Outer (White)
9	GLASS, OUTER (STAINLESS)
10	TRIM, SIDE (WHITE (LEFT))
10	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (BLACK, LEFT HAND)
10	TRIM, SIDE (BLACK, RIGHT HAND)
11	MAY 3196160
12	TRIM, LOWER (WHITE)
12	TRIM, LOWER (BLACK)
12	TRIM, LOWER (UNIVERSAL SILVER)
13	STRAP, DOOR
14	MAY W10031780
15	MAY W10178143
