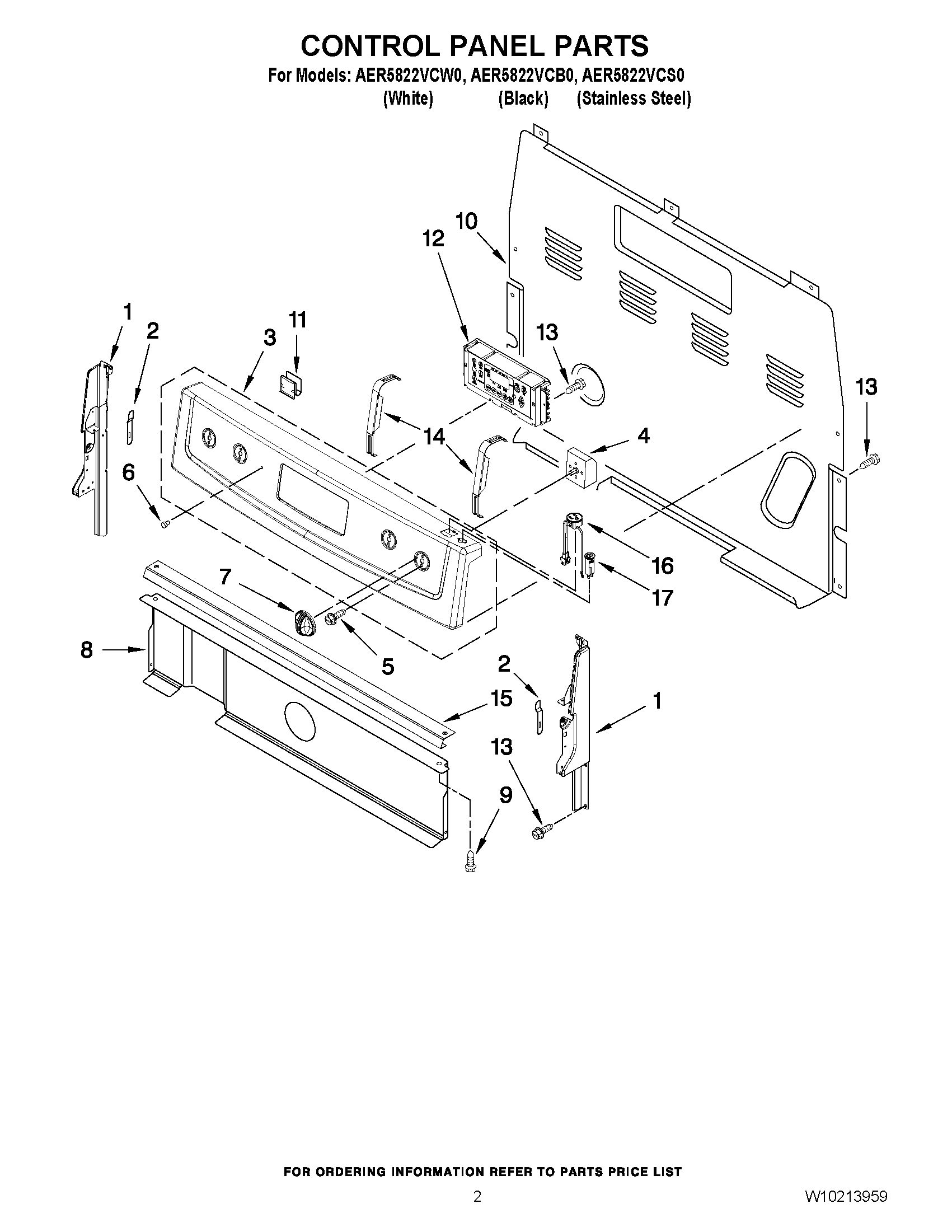

AER5822VCB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (RIGHT))
2CLIP, SPRING
3MAY W10170031
3PANEL, BACKGUARD (WHITE)
3PANEL, BACKGUARD (STAINLESS)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
5SCREW
6MAY 3196068
7KNOB, INFINITE (BLACK)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9Screw (White)
10COVER, UPPER REAR
11MAY 8273564
12MAY W10363661
12CONTROL, RANGE (BLACK)
13SCREW
14BRACKET, MOUNTING, EOC
15Bracket, Console
16RECEPTACLE (WHITE)
16RECEPTACLE (BLACK)
17BREAKER, CIRCUIT (WHITE)
17BREAKER, CIRCUIT (BLACK)
