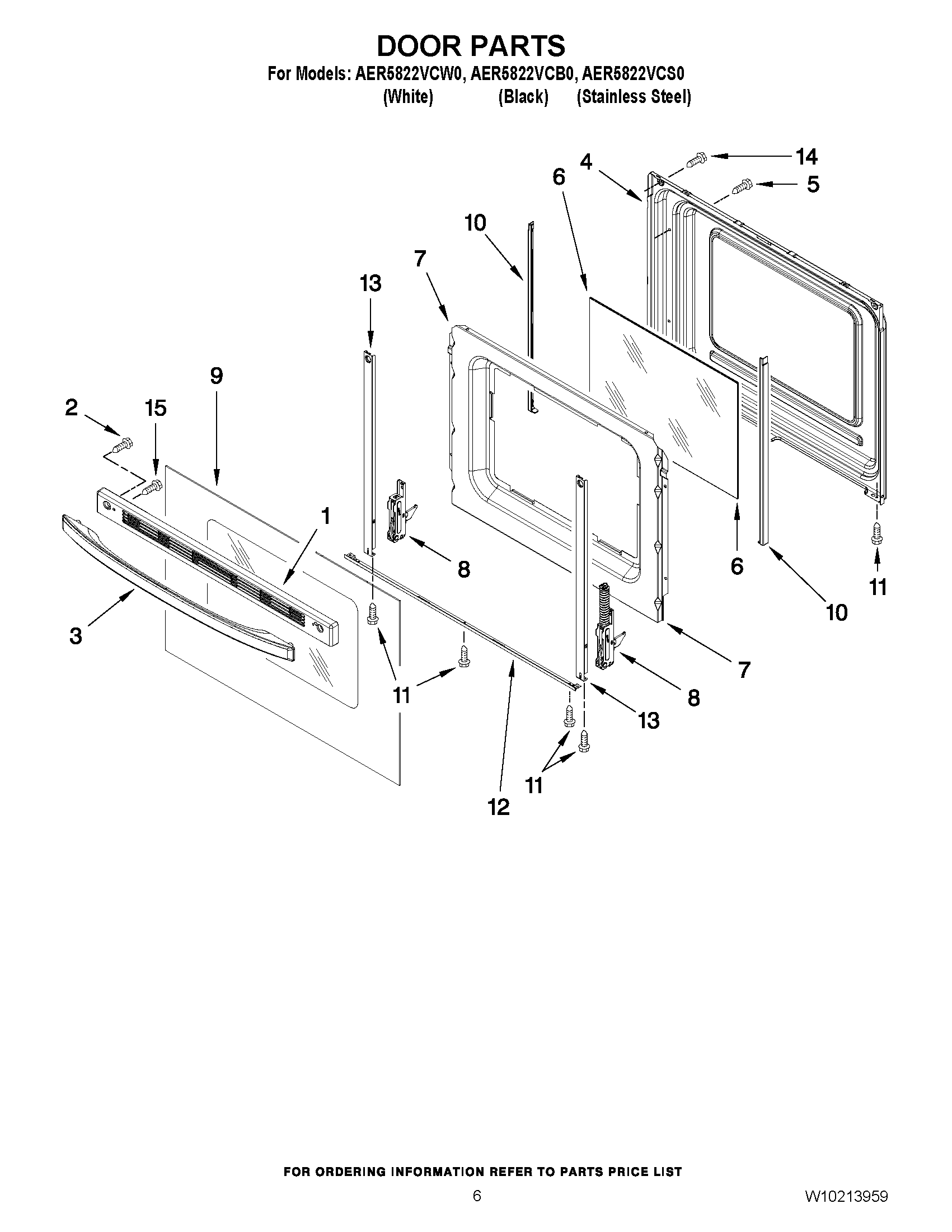

AER5822VCW0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10144889
3	MAY W10144890
3	MAY W10144888
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8	HINGE, ACTIVE
8	HINGE, DOOR (PASSIVE)
9	Glass, Outer (Black)
9	Glass, Outer (White)
9	GLASS, OUTER (STAINLESS)
10	TRIM, SIDE (WHITE (LEFT))
10	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (BLACK, RIGHT HAND)
10	TRIM, SIDE (BLACK, LEFT HAND)
11	MAY 3196160
12	TRIM, LOWER (BLACK)
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	MAY W10031780
15	MAY W10178143
