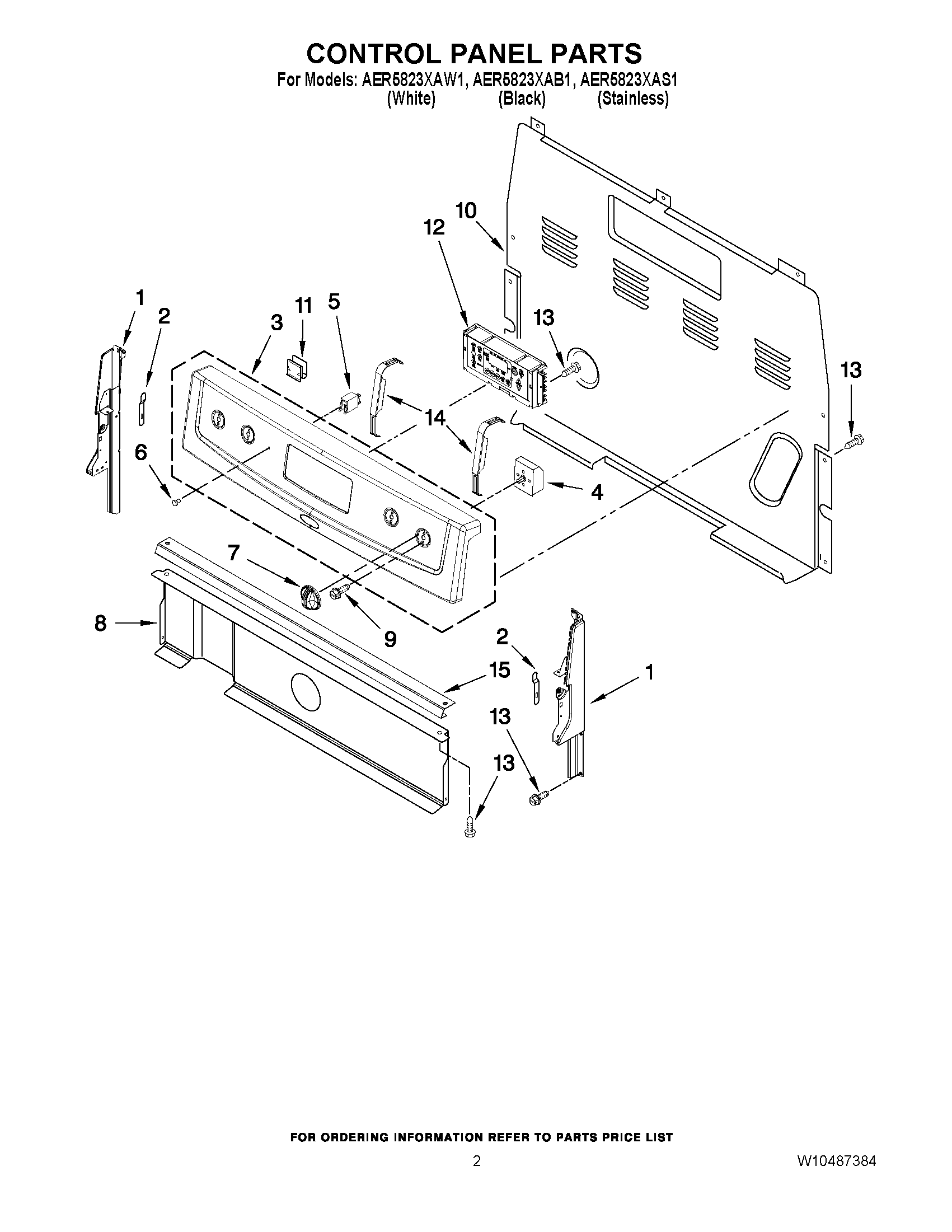

AER5823XAB1 02 – CONTROL PANEL PARTS

AER5823XAB1 02 – CONTROL PANEL PARTS

Written by

in

AER5823XAB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2CLIP, SPRING
3MAY W10170012
3MAY W10170011
3MAY W10170014
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (BLACK)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11MAY 8273564
12MAY W10363661
12CONTROL, RANGE (BLACK)
13SCREW
14BRACKET, MOUNTING, EOC
15Bracket, Console
