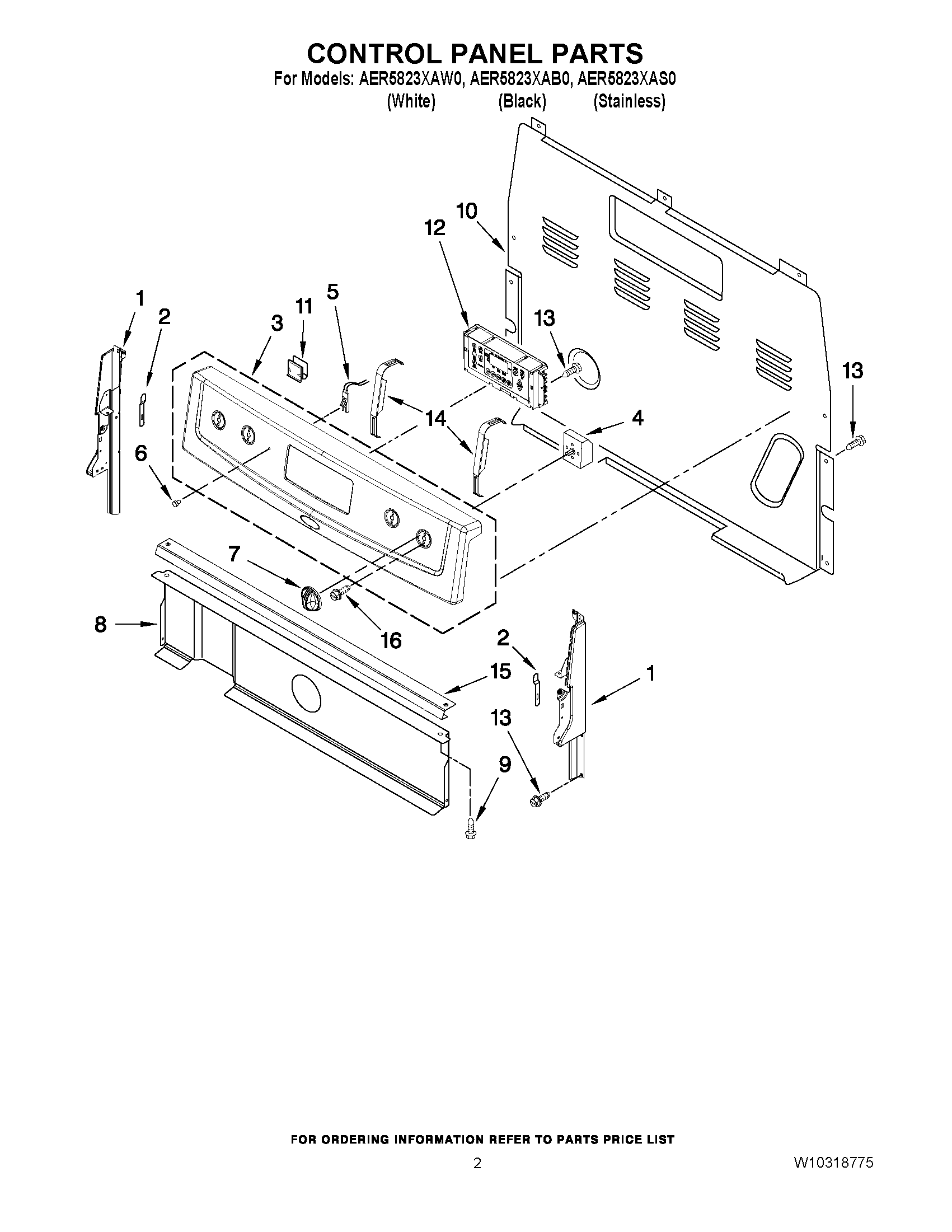

AER5823XAW0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:56:26+00:00AER5823XAW0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 2 | CLIP, SPRING |
| 3 | MAY W10170011 |
| 3 | MAY W10170012 |
| 3 | MAY W10170014 |
| 4 | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR) |
| 5 | MAY 8523265 |
| 6 | MAY 3196068 |
| 7 | KNOB, INFINITE (WHITE) |
| 7 | KNOB, INFINITE (BLACK) |
| 8 | SHIELD, HEAT |
| 9 | Screw (White) |
| 10 | COVER, UPPER REAR |
| 11 | MAY 8273564 |
| 12 | MAY W10173504 |
| 12 | Control, Range (Black) |
| 13 | SCREW |
| 14 | BRACKET, MOUNTING, EOC |
| 15 | Bracket, Console |
| 16 | SCREW |
