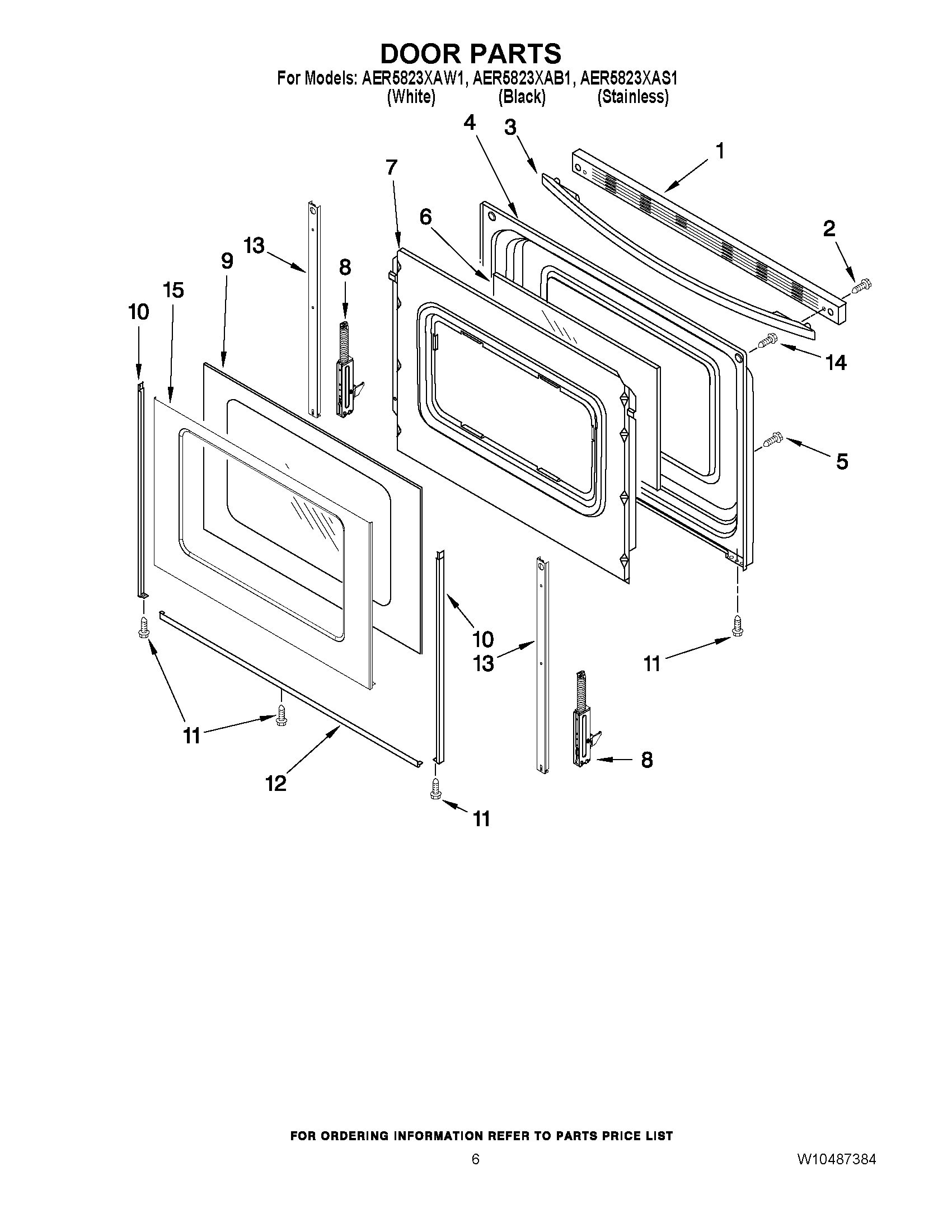

AER5823XAW1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10144888
3	MAY W10144890
3	MAY W10144889
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8	HINGE, DOOR (PASSIVE)
9	Glass, Outer (White)
9	Glass, Outer (Black)
10	TRIM, SIDE (WHITE (LEFT))
10	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (BLACK, LEFT HAND)
10	TRIM, SIDE (BLACK, RIGHT HAND)
11	MAY 3196160
12	TRIM, LOWER (BLACK)
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	SCREW
15	GLASS, OUTER (STAINLESS)
