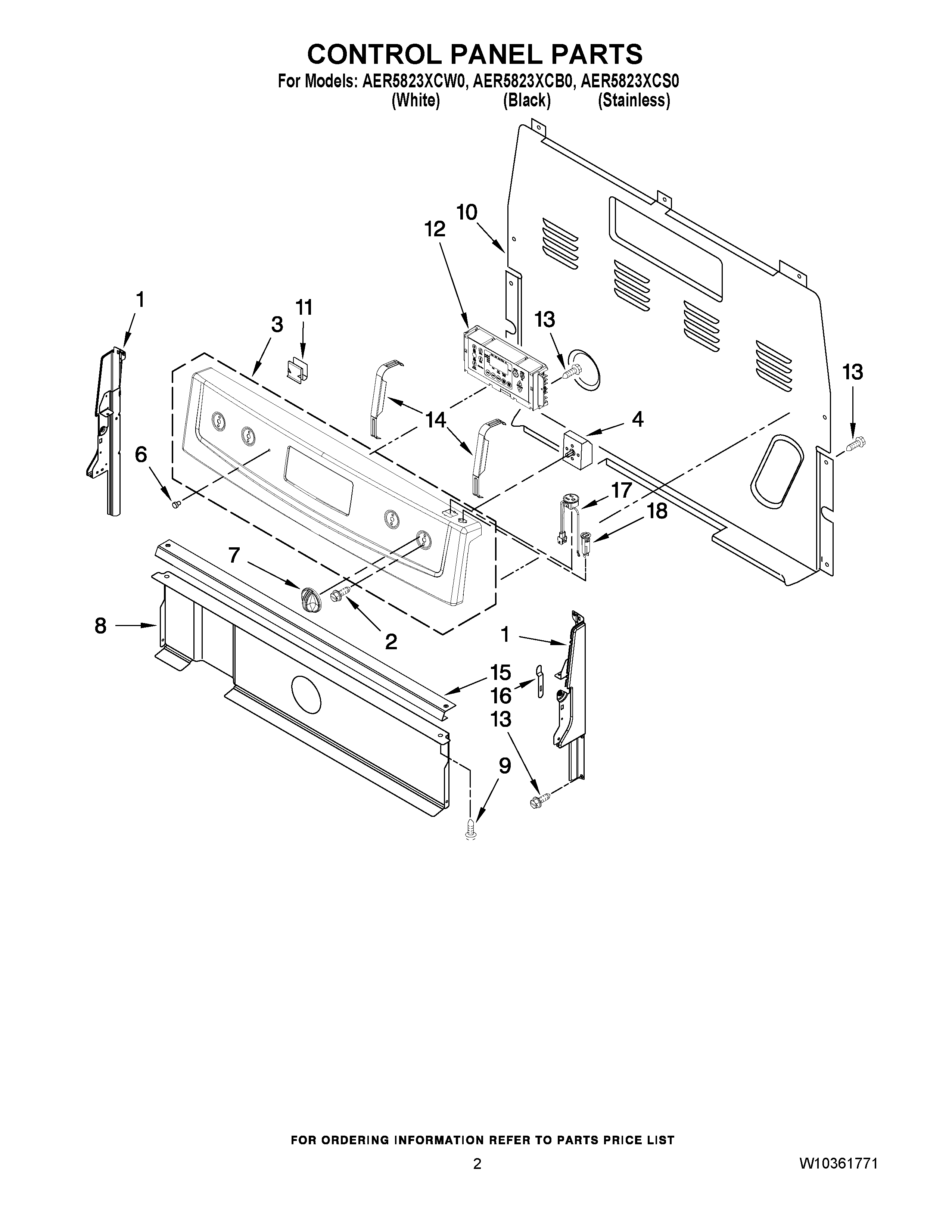

AER5823XCB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2SCREW
3MAY W10170031
3PANEL, BACKGUARD (STAINLESS)
3PANEL, BACKGUARD (WHITE)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
6MAY 3196068
7KNOB, INFINITE (BLACK)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9Screw (White)
10COVER, UPPER REAR
11MAY 8273564
12MAY W10271728
12MAY W10271727
13SCREW
14BRACKET, MOUNTING, EOC
15Bracket, Console
16CLIP, SPRING
17RECEPTACLE (BLACK)
17RECEPTACLE (WHITE)
18BREAKER, CIRCUIT (WHITE)
18BREAKER, CIRCUIT (BLACK)
