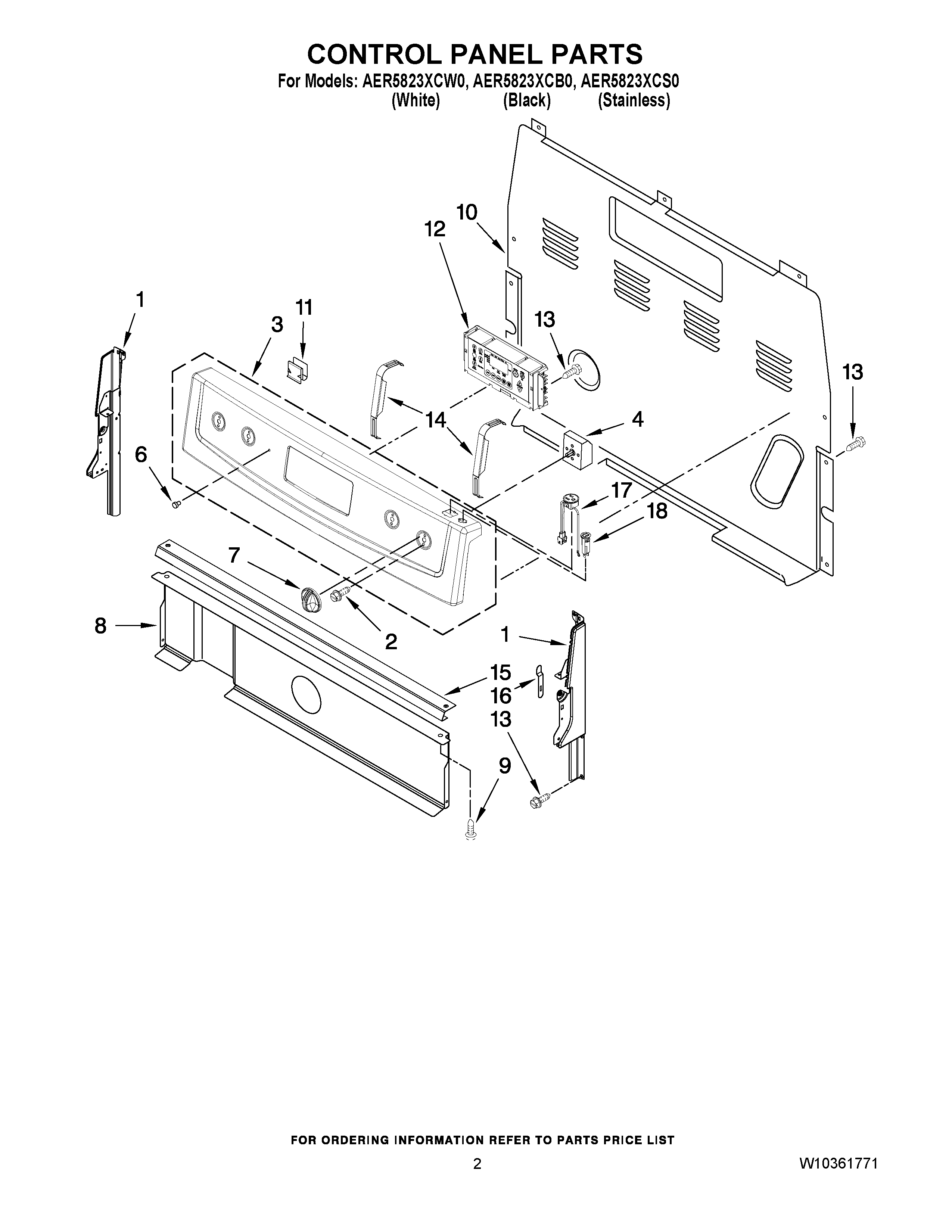

AER5823XCS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	SCREW
3	MAY W10170031
3	PANEL, BACKGUARD (STAINLESS)
3	PANEL, BACKGUARD (WHITE)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
6	MAY 3196068
7	KNOB, INFINITE (BLACK)
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	Screw (White)
10	COVER, UPPER REAR
11	MAY 8273564
12	MAY W10271728
12	MAY W10271727
13	SCREW
14	BRACKET, MOUNTING, EOC
15	Bracket, Console
16	CLIP, SPRING
17	RECEPTACLE (BLACK)
17	RECEPTACLE (WHITE)
18	BREAKER, CIRCUIT (WHITE)
18	BREAKER, CIRCUIT (BLACK)
