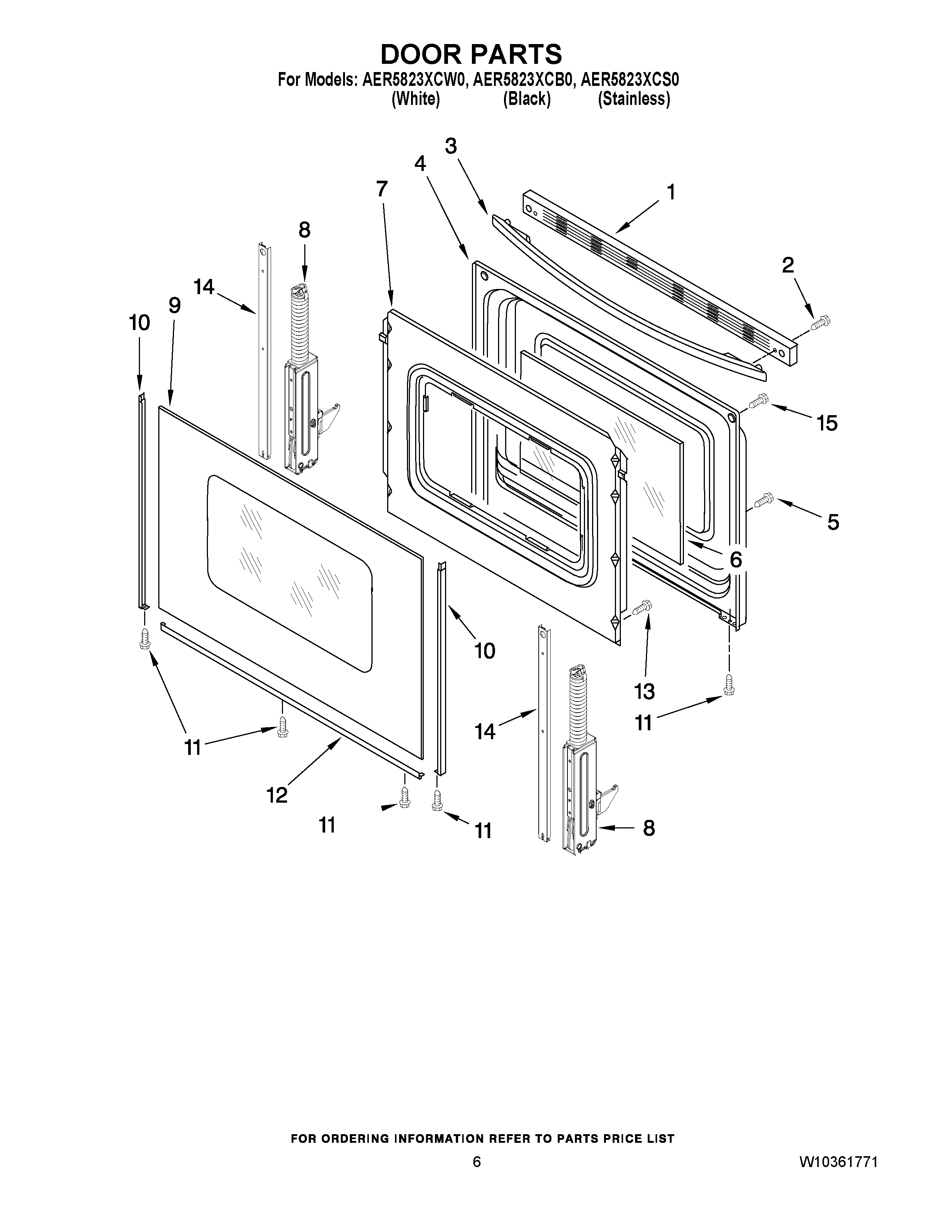

AER5823XCS0 05 – DOOR PARTS

AER5823XCS0 05 – DOOR PARTS

Written by

in

AER5823XCS0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2MAY W10178143
3MAY W10144889
3MAY W10144890
3MAY W10144888
4LINER, DOOR
5SCREW
6GLASS, INNER
7RETAINER, INSULATION
8HINGE, ACTIVE
8HINGE, DOOR (PASSIVE)
9Glass, Outer (Black)
9Glass, Outer (White)
10TRIM, SIDE (WHITE (RIGHT))
10TRIM, SIDE (WHITE (LEFT))
10TRIM, SIDE (BLACK, LEFT HAND)
10TRIM, SIDE (BLACK, RIGHT HAND)
11MAY 3196160
12TRIM, LOWER (BLACK)
12TRIM, LOWER (WHITE)
13MAY W10031780
14STRAP, DOOR
15SCREW
