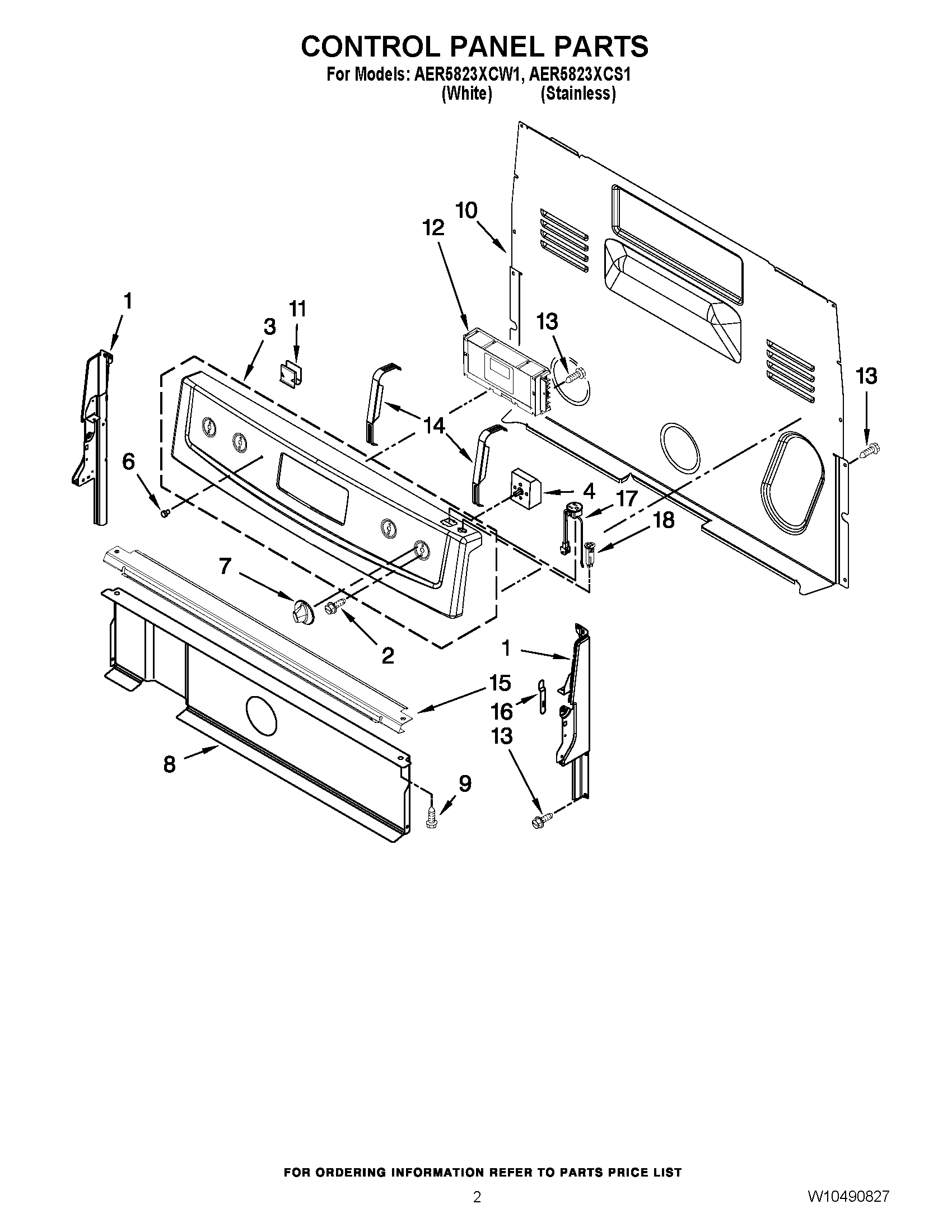

AER5823XCS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
2	SCREW
3	PANEL, BACKGUARD (STAINLESS)
3	PANEL, BACKGUARD (WHITE)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (YELLOW) (RIGHT FRONT AND LEFT REAR)
6	MAY 3196068
7	KNOB, INFINITE (WHITE)
7	KNOB, INFINITE (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11	MAY 8273564
12	MAY W10363661
12	CONTROL, RANGE (BLACK)
13	SCREW
14	BRACKET, MOUNTING, EOC
15	Bracket, Console
16	CLIP, SPRING
17	RECEPTACLE (BLACK)
17	RECEPTACLE (WHITE)
18	BREAKER, CIRCUIT (WHITE)
18	BREAKER, CIRCUIT (BLACK)
