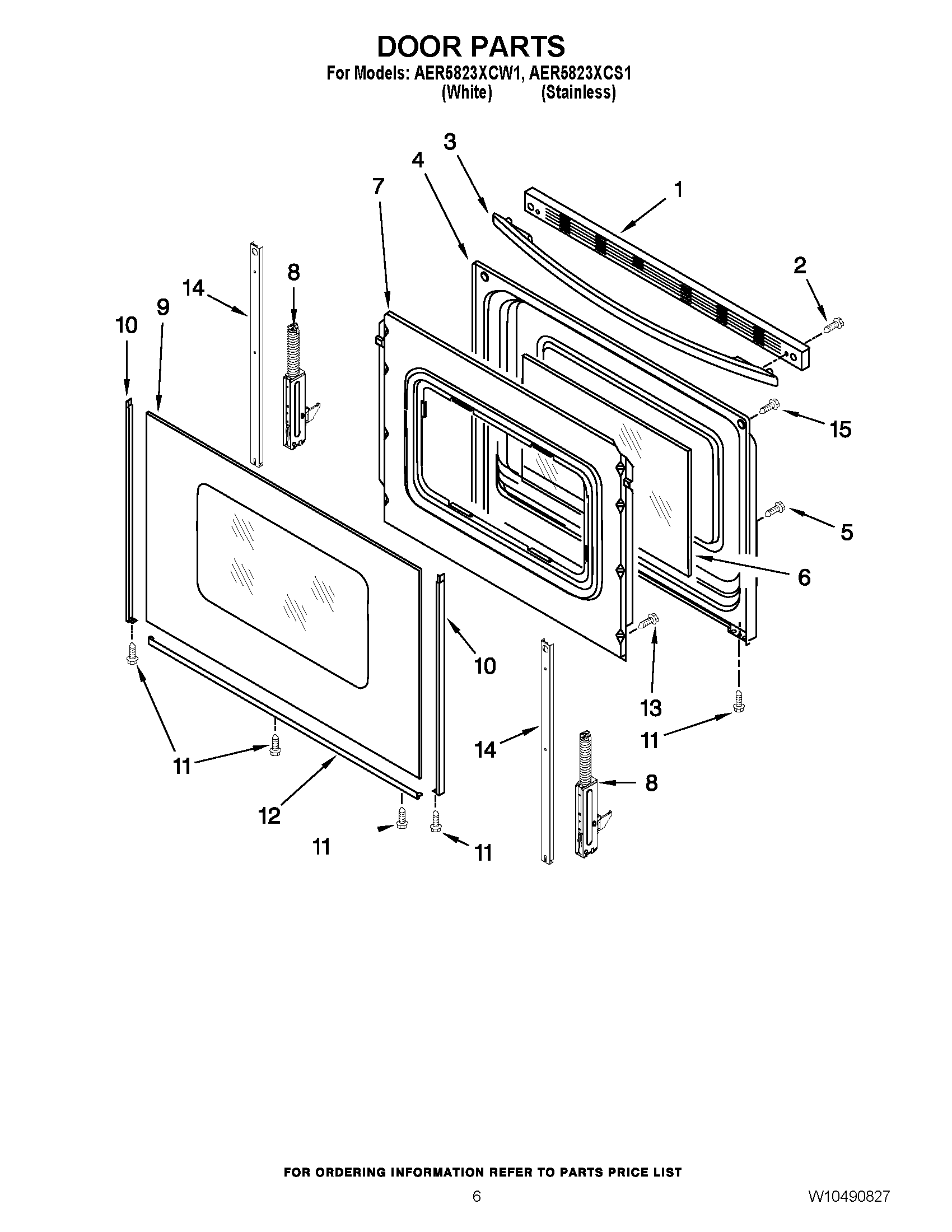

AER5823XCW1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	MAY W10178143
3	MAY W10144890
3	MAY W10144888
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE
8	HINGE, DOOR (PASSIVE)
8	HINGE, ACTIVE
9	Glass, Outer (Black)
9	Glass, Outer (White)
10	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (WHITE (LEFT))
10	TRIM, SIDE (BLACK, LEFT HAND)
10	TRIM, SIDE (BLACK, RIGHT HAND)
11	MAY 3196160
12	TRIM, LOWER (WHITE)
13	MAY W10031780
14	STRAP, DOOR
15	SCREW
