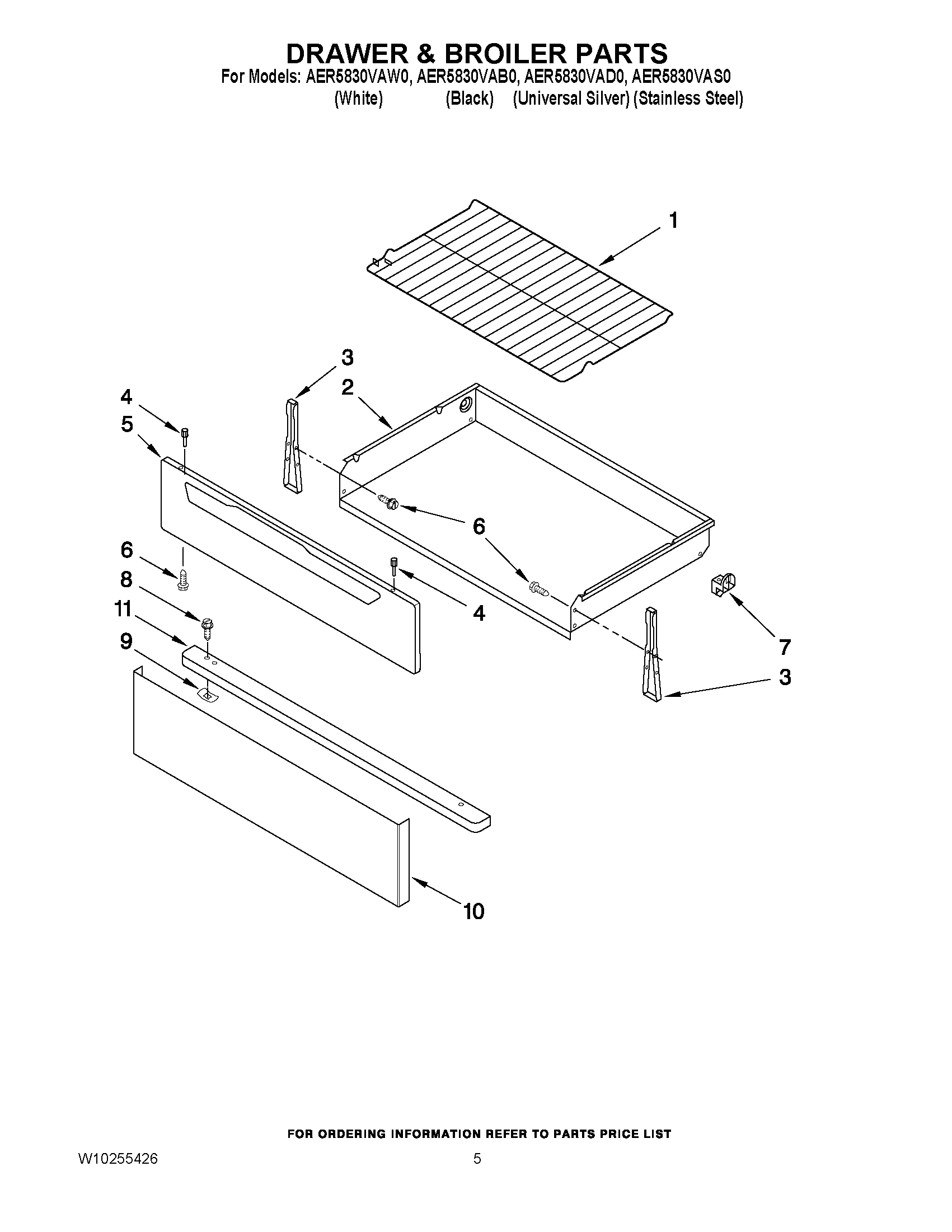

AER5830VAB0 04 – DRAWER & BROILER PARTS

Written by

Products

Position	Product
1	MAY W10179196
2	MAY 9761031
3	WHITE
4	RIVET, PUSH (WHITE)
4	RIVET, PUSH (BLACK)
5	PANEL, DRAWER FRONT (BLACK)
5	Panel, Drawer Frnt (Universal Silver)
5	PANEL, DRAWER FRONT (WHITE)
6	Screw (Black)
7	GLIDE, DRAWER
8	SCREW
9	CLIP(STLS.MODEL)
10	Panel(Stls. Model)
11	Handle(Stls.Model)
