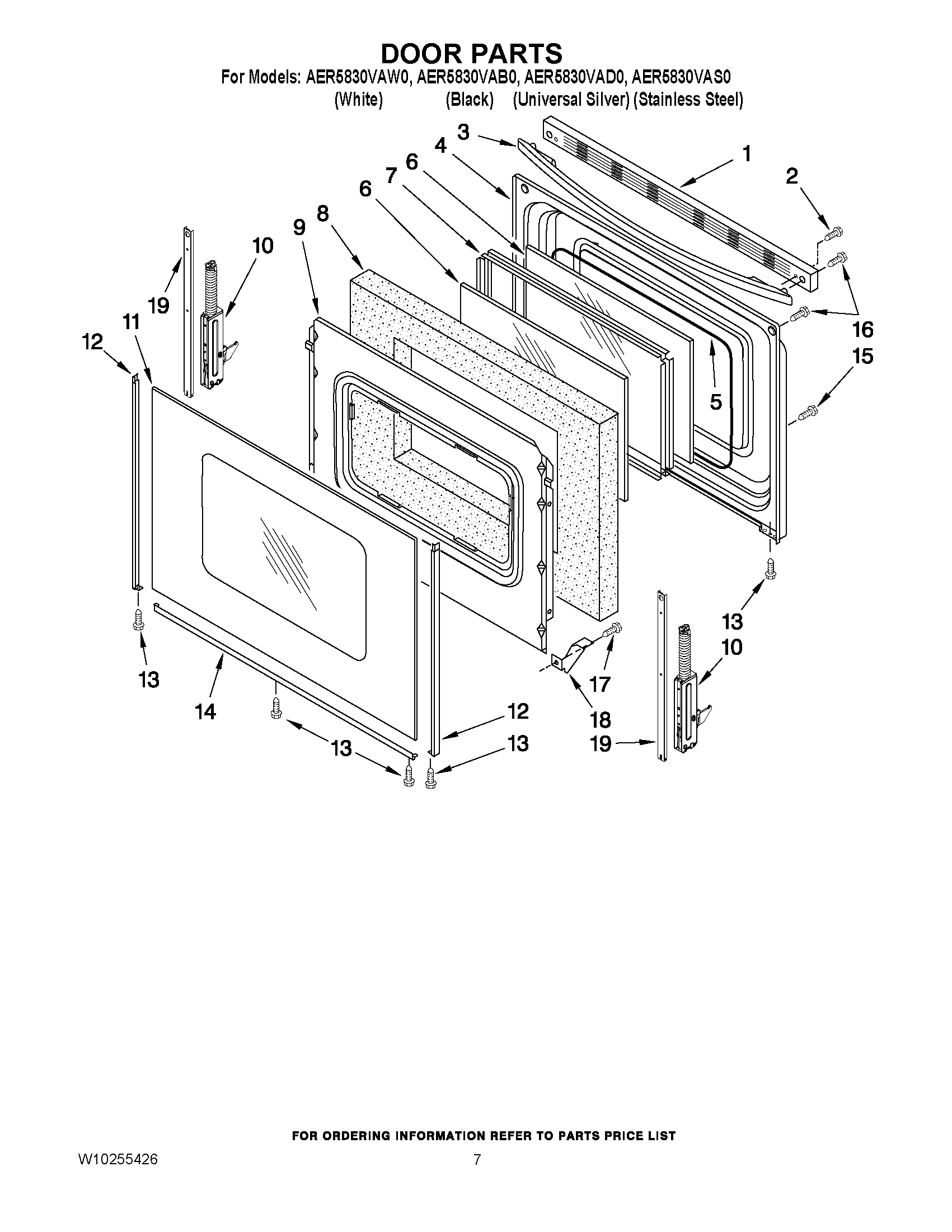

AER5830VAB0 05 – DOOR PARTS
Written by
in
AER5830VAB0 05 – DOOR PARTS
Products
Position
Product
1
MAY W10144869
1
Trim, Top (Black)
2
SCREW
3
MAY W10144890
3
MAY W10144888
3
MAY W10144889
4
LINER, DOOR
5
MAY W10238912
6
GLASS, INNER
7
MAY 3186289
8
MAY 8272618
9
ROD, INSULATION RETAINER
10
Hinge, Door
10
Hinge, Door (2) (Stainless Model)
11
Glass, Outer (Black)
11
Glass, Outer (White)
11
GLASS, OUTER (STAINLESS)
11
GLASS, OUTER (BLACK)
12
TRIM, SIDE (BLACK, LEFT HAND)
12
TRIM, SIDE (BLACK, RIGHT HAND)
12
TRIM SIDE (STAINLESS LH)
12
TRIM SIDE (STAINLESS RH)
12
TRIM, SIDE (WHITE (RIGHT))
12
TRIM, SIDE (WHITE (LEFT))
13
MAY 3196160
14
TRIM, LOWER (WHITE)
14
TRIM, LOWER (BLACK)
15
SCREW
16
MAY W10031780
17
SCREW
18
CLIP, PANEL
19
STRAP, DOOR
←
