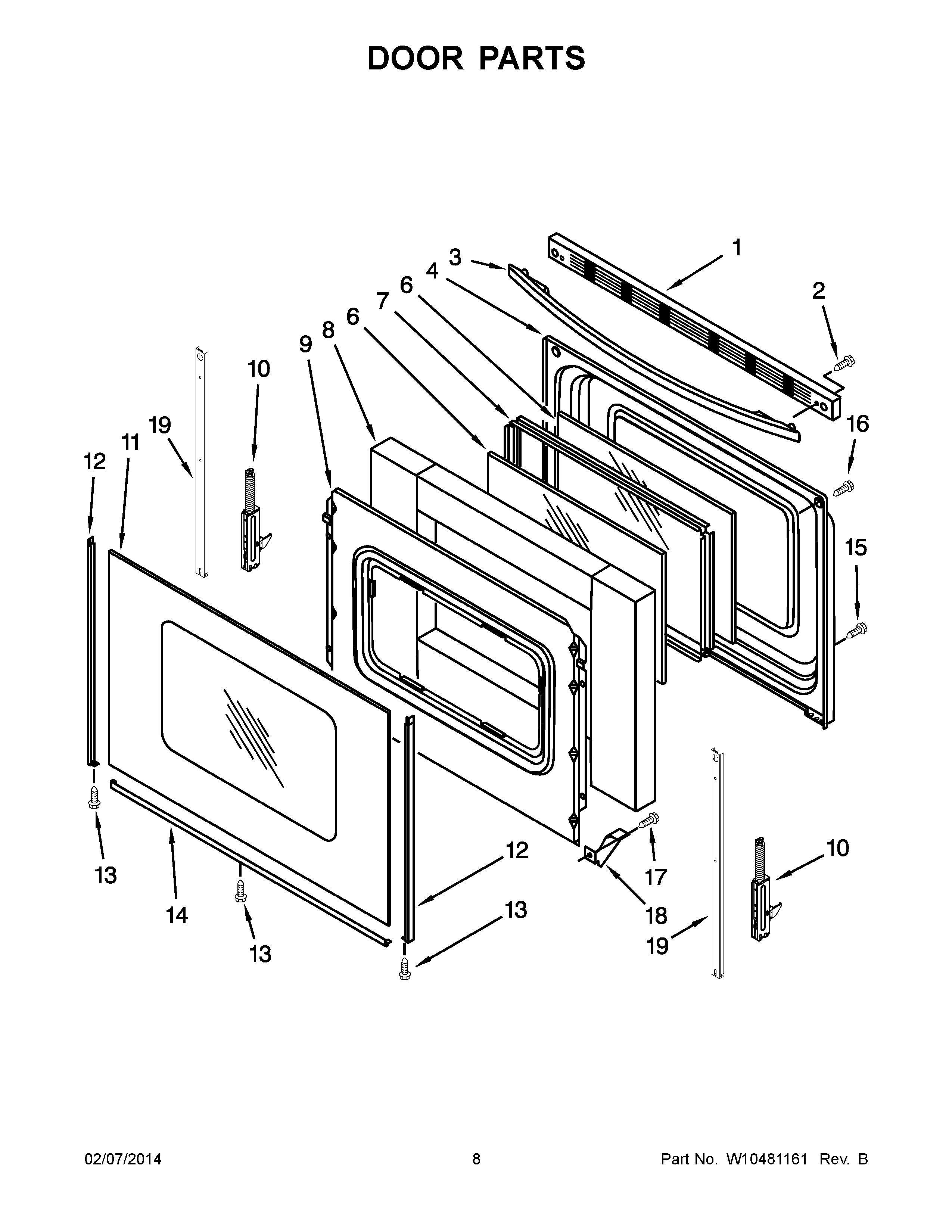

AER5830VAB1 05 – DOOR PARTS

AER5830VAB1 05 – DOOR PARTS

Written by

in

AER5830VAB1 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1TRIM, TOP (BLACK)
2MAY W10178143
3MAY W10144888
3MAY W10144890
3MAY W10144889
4LINER, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (STAINLESS)
11Glass, Outer (Black)
11Glass, Outer (White)
11GLASS, OUTER (BLACK)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (SILVER (LEFT))
12TRIM, SIDE (SILVER (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14TRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19STRAP, DOOR
