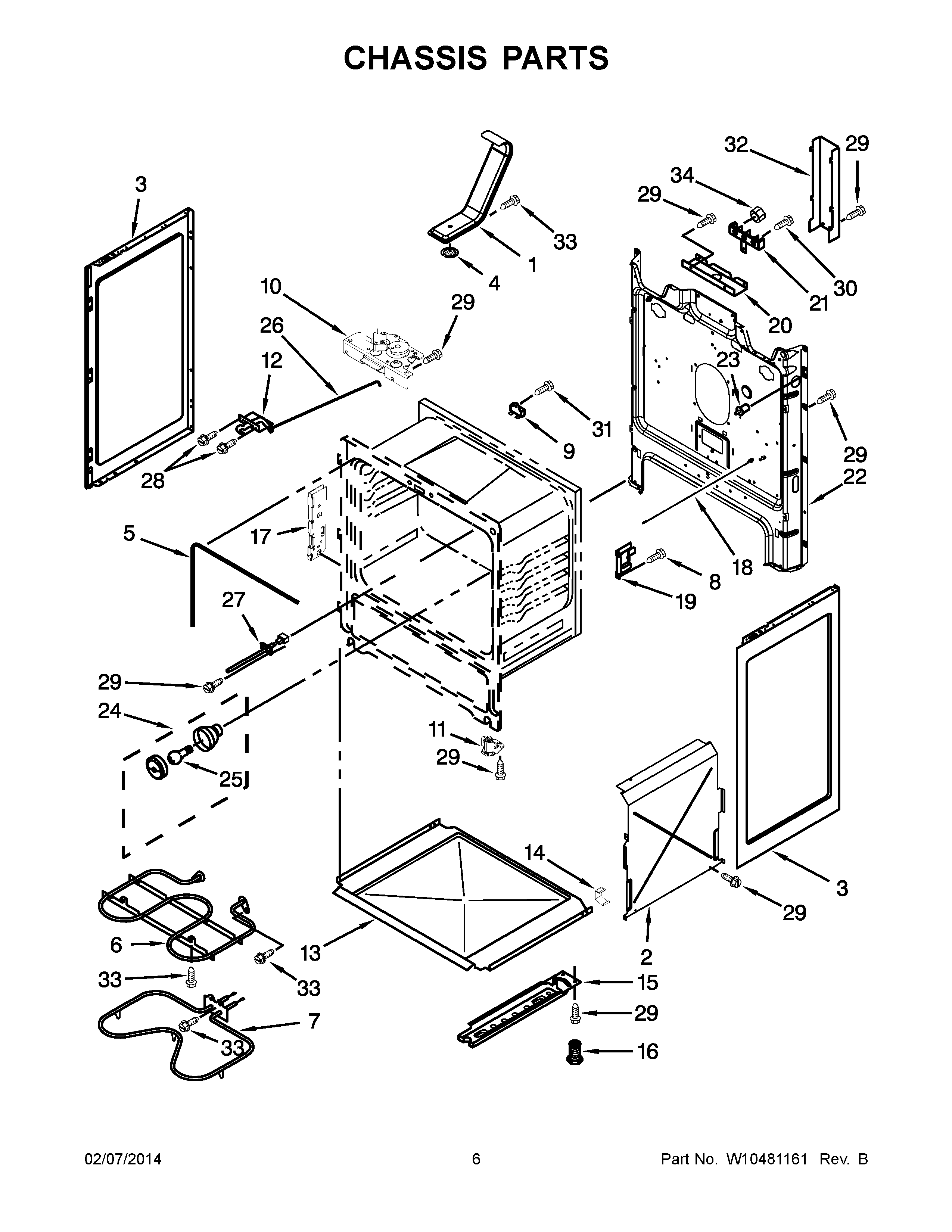

AER5830VAD1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, FLUE
NI	INSULATION, BACK
NI	MAY W10208653
1	TUBE, VENT
2	RETAINER, INSULATION
3	MAY W10322769
3	MAY W10322770
4	MAY 9761301
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	SCREW
9	FUSE, THERMAL
10	ASSEMBLY, DOOR LATCH (REAR)
11	ASSEMBLY, FRONT FOOT
12	ASSEMBLY, DOOR LATCH (FRONT)
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	RECEIVER, HINGE
18	ROD, DOOR SWITCH
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	ROD, LATCH
27	SENSOR, OVEN
28	SCREW
29	SCREW
30	SCREW
31	SCREW
32	COVER, TERMINAL BLOCK
33	SCREW
34	WP7103P027-60 Whirlpool Nut
