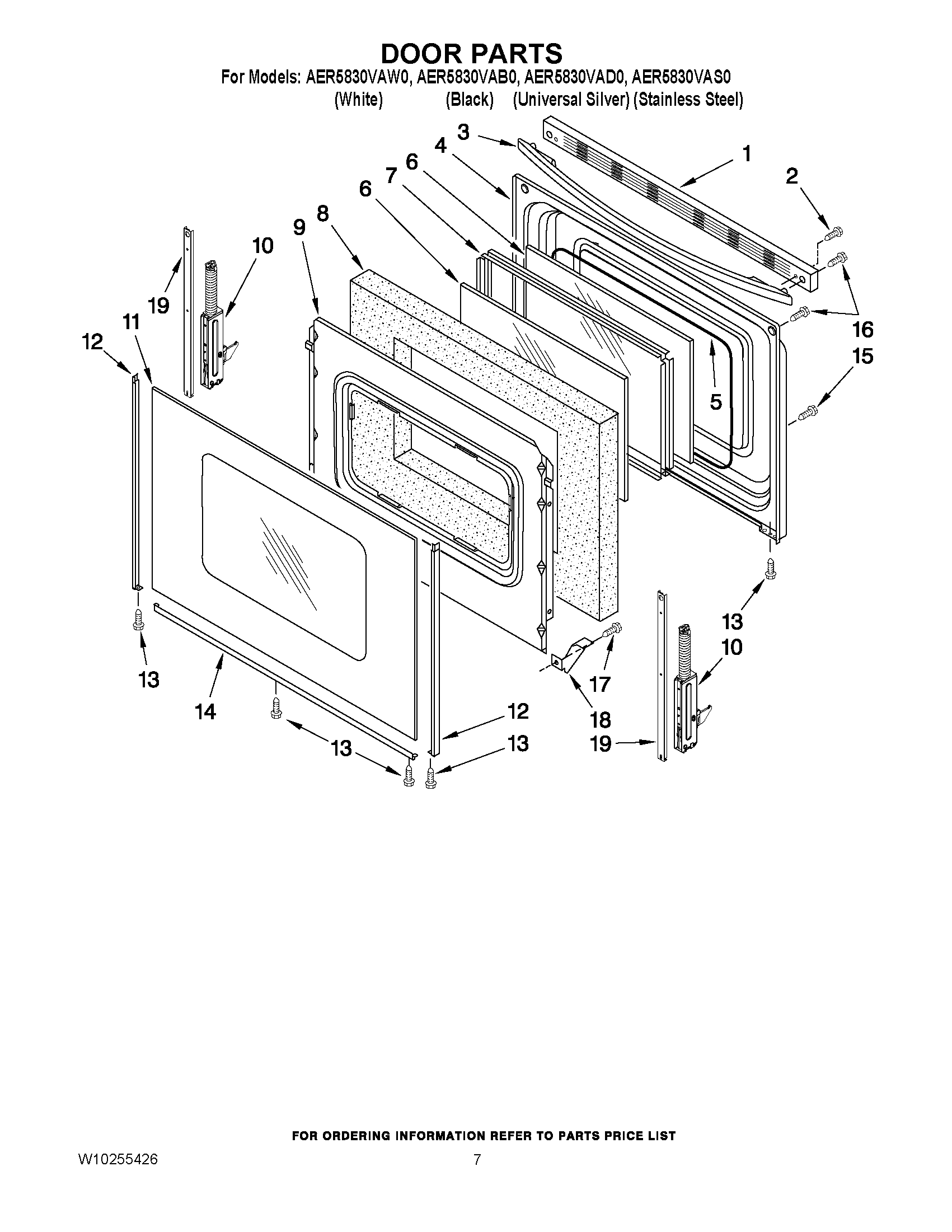

AER5830VAS0 05 – DOOR PARTS

AER5830VAS0 05 – DOOR PARTS

Written by

in

AER5830VAS0 05 – DOOR PARTS

Products

PositionProduct
1MAY W10144869
1Trim, Top (Black)
2SCREW
3MAY W10144890
3MAY W10144888
3MAY W10144889
4LINER, DOOR
5MAY W10238912
6GLASS, INNER
7MAY 3186289
8MAY 8272618
9ROD, INSULATION RETAINER
10Hinge, Door
10Hinge, Door (2) (Stainless Model)
11Glass, Outer (Black)
11Glass, Outer (White)
11GLASS, OUTER (STAINLESS)
11GLASS, OUTER (BLACK)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM SIDE (STAINLESS LH)
12TRIM SIDE (STAINLESS RH)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
13MAY 3196160
14TRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19STRAP, DOOR
