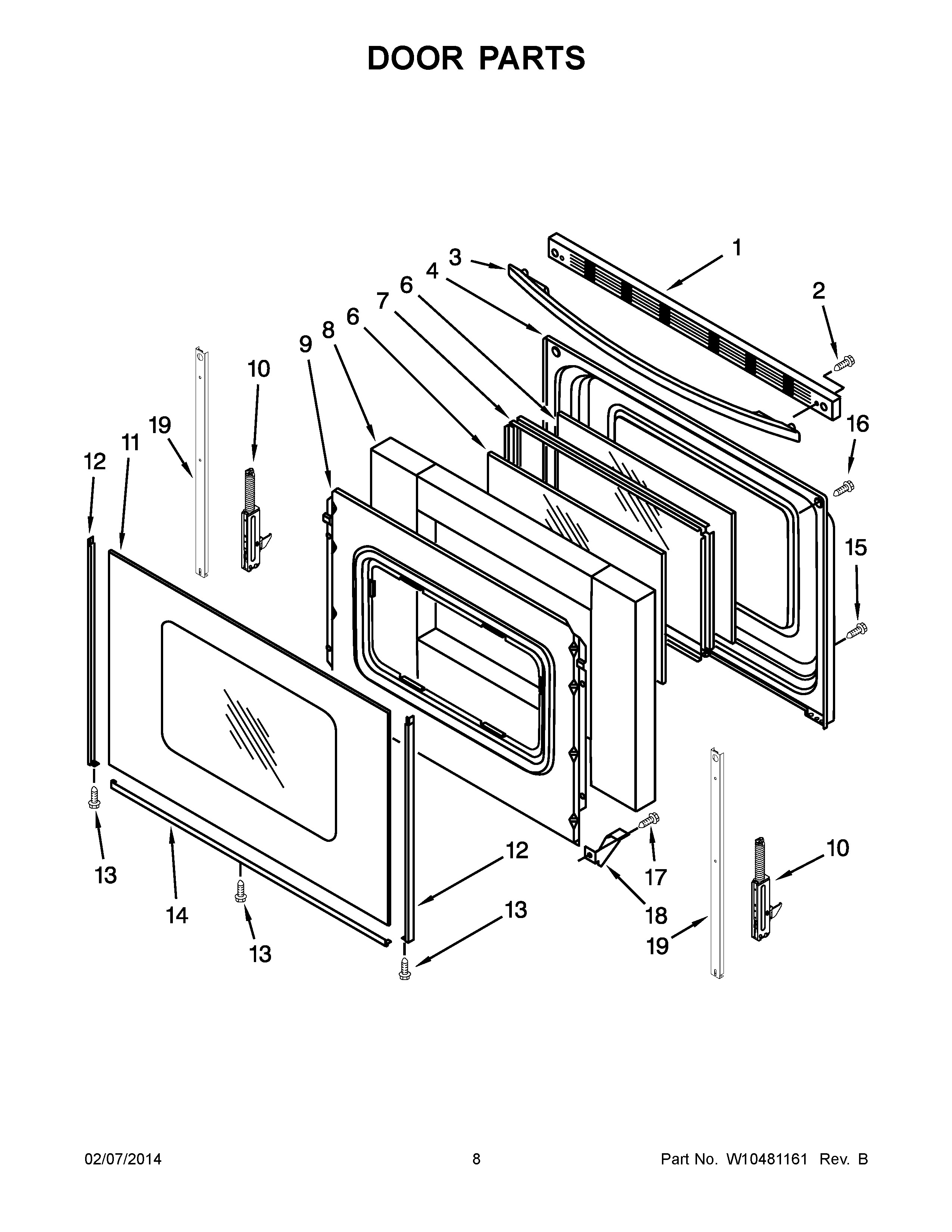

AER5830VAS1 05 – DOOR PARTSadmin2025-04-26T08:56:34+00:00AER5830VAS1 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (WHITE) |
| 1 | TRIM, TOP (BLACK) |
| 2 | MAY W10178143 |
| 3 | MAY W10144888 |
| 3 | MAY W10144890 |
| 3 | MAY W10144889 |
| 4 | LINER, DOOR |
| 6 | GLASS, INNER |
| 7 | FRAME, GLASS |
| 8 | INSULATION, DOOR STRIP |
| 9 | RETAINER, INSULATION |
| 10 | HINGE, ACTIVE (WITH SPRING) |
| 10 | HINGE, DOOR (PASSIVE) |
| 11 | GLASS, OUTER (STAINLESS) |
| 11 | Glass, Outer (Black) |
| 11 | Glass, Outer (White) |
| 11 | GLASS, OUTER (BLACK) |
| 12 | TRIM, SIDE (BLACK, LEFT HAND) |
| 12 | TRIM, SIDE (BLACK, RIGHT HAND) |
| 12 | TRIM, SIDE (SILVER (LEFT)) |
| 12 | TRIM, SIDE (SILVER (RIGHT)) |
| 12 | TRIM, SIDE (WHITE (LEFT)) |
| 12 | TRIM, SIDE (WHITE (RIGHT)) |
| 13 | MAY 3196160 |
| 14 | TRIM, LOWER (WHITE) |
| 14 | TRIM, LOWER (BLACK) |
| 15 | SCREW |
| 16 | MAY W10031780 |
| 17 | SCREW |
| 18 | CLIP, PANEL |
| 19 | STRAP, DOOR |
