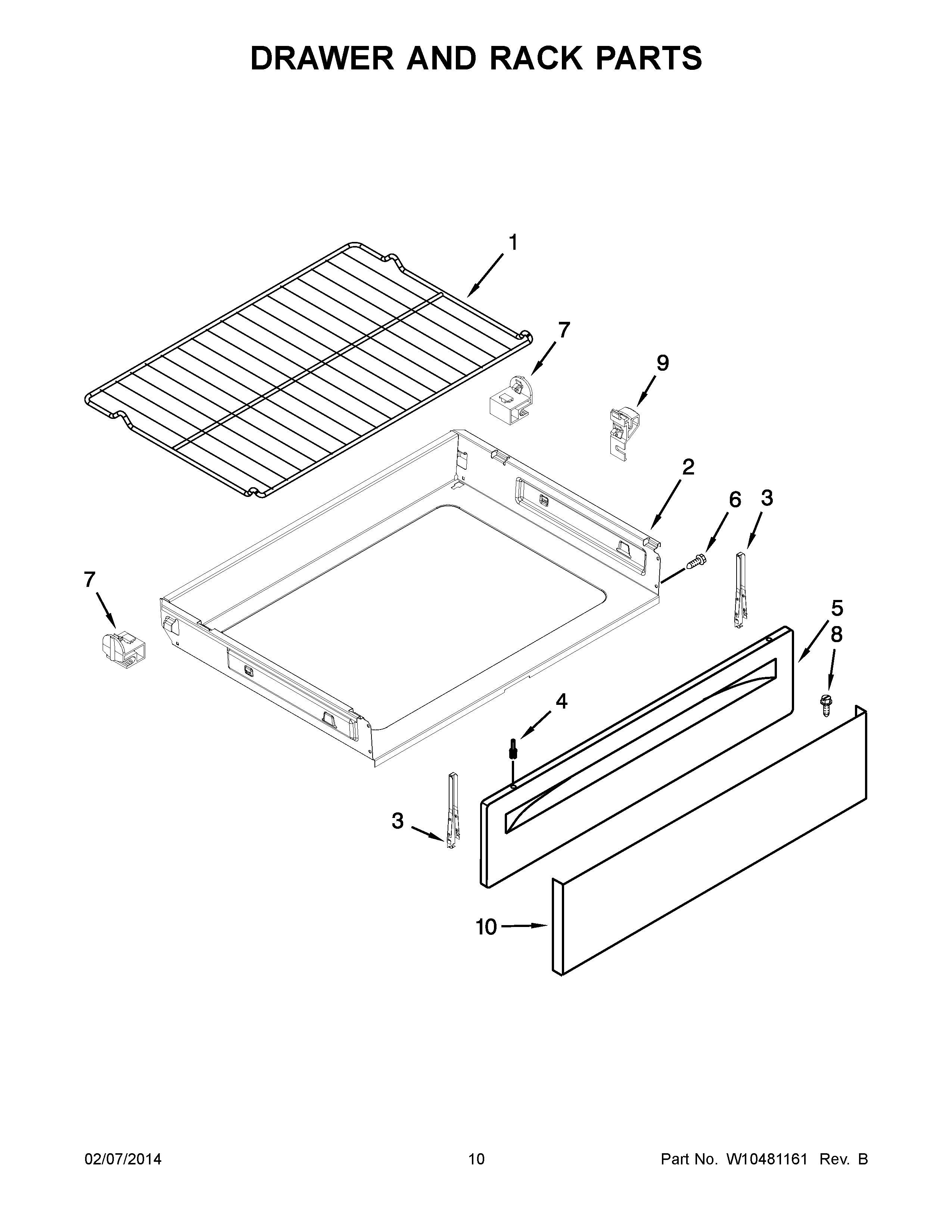

AER5830VAS1 06 – DRAWER AND RACK PARTS

AER5830VAS1 06 – DRAWER AND RACK PARTS

Written by

in

AER5830VAS1 06 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, MOUNTING DRAWER
4RIVET, PUSH (BLACK)
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER FRONT (BLACK)
5Panel, Drawer Frnt (Universal Silver)
6SCREW
7GLIDE, REAR DRAWER
8SCREW
9GLIDE, DRAWER
10PANEL, DRAWER (SS MODEL)
