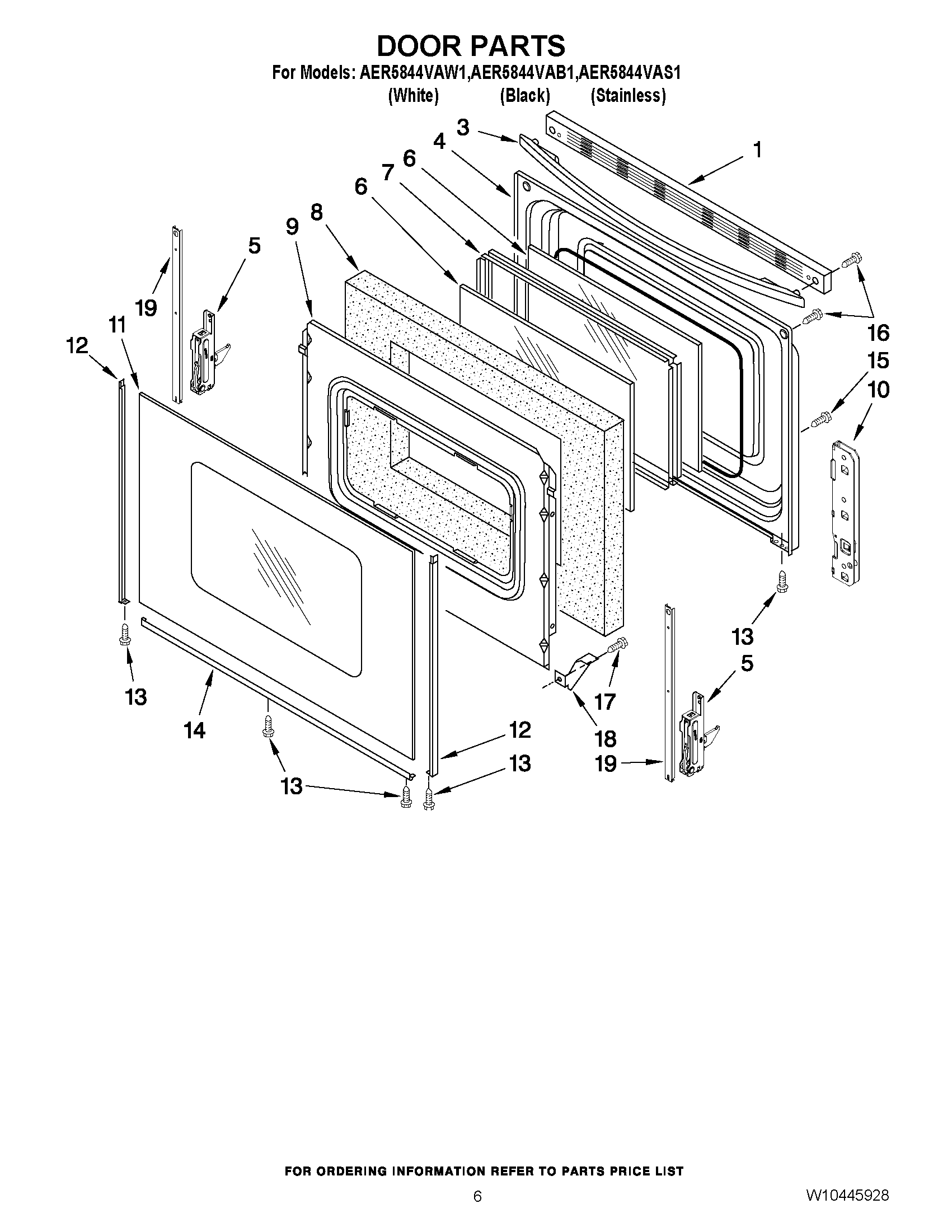

AER5844VAB1 05 – DOOR PARTS

AER5844VAB1 05 – DOOR PARTS

Written by

in

AER5844VAB1 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
3MAY W10144889
3MAY W10144888
3MAY W10144890
4LINER, DOOR
5HINGE, DOOR (PASSIVE)
5HINGE, ACTIVE (WITH SPRING)
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10RECEIVER, HINGE
11Glass, Outer (White)
11Glass, Outer (Black)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
13MAY 3196160
14TRIM, LOWER (WHITE)
14TRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19STRAP, DOOR
