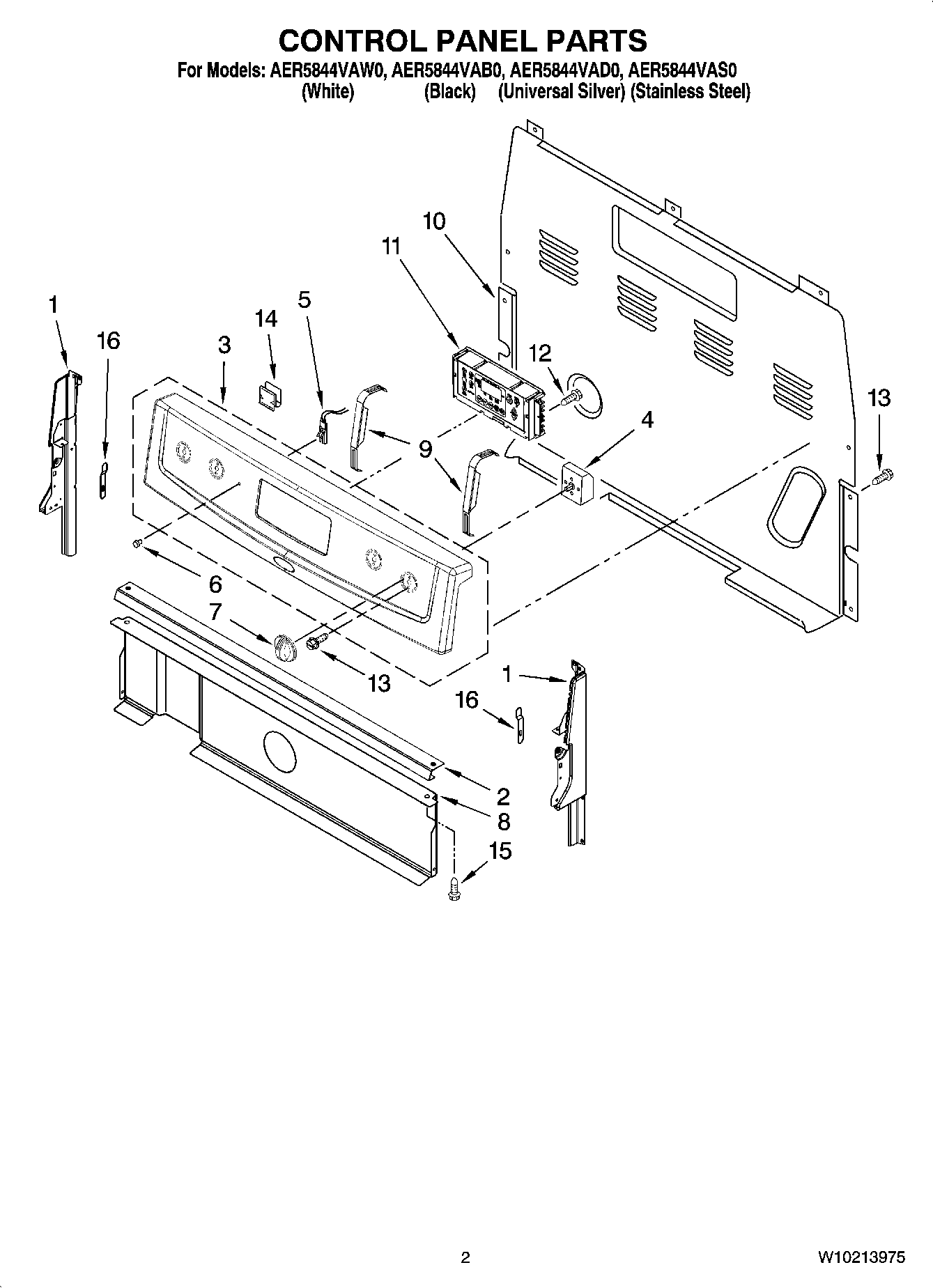

AER5844VAD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10009090
1MAY W10009080
1MAY W10009050
1MAY W10009040
2Bracket, Console
3MAY W10170015
3MAY W10170016
3MAY W10170017
3MAY W10170018
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4Switch, Infinite (LF,RF)
5MAY 8523265
6MAY 3196068
7KNOB, INFINITE (BLACK)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9MAY W10139863
10COVER, UPPER REAR
11MAY W10173500
11MAY W10173501
12SCREW
13SCREW
14MAY 8273564
15Screw (Black)
15Screw (White)
16CLIP, SPRING
