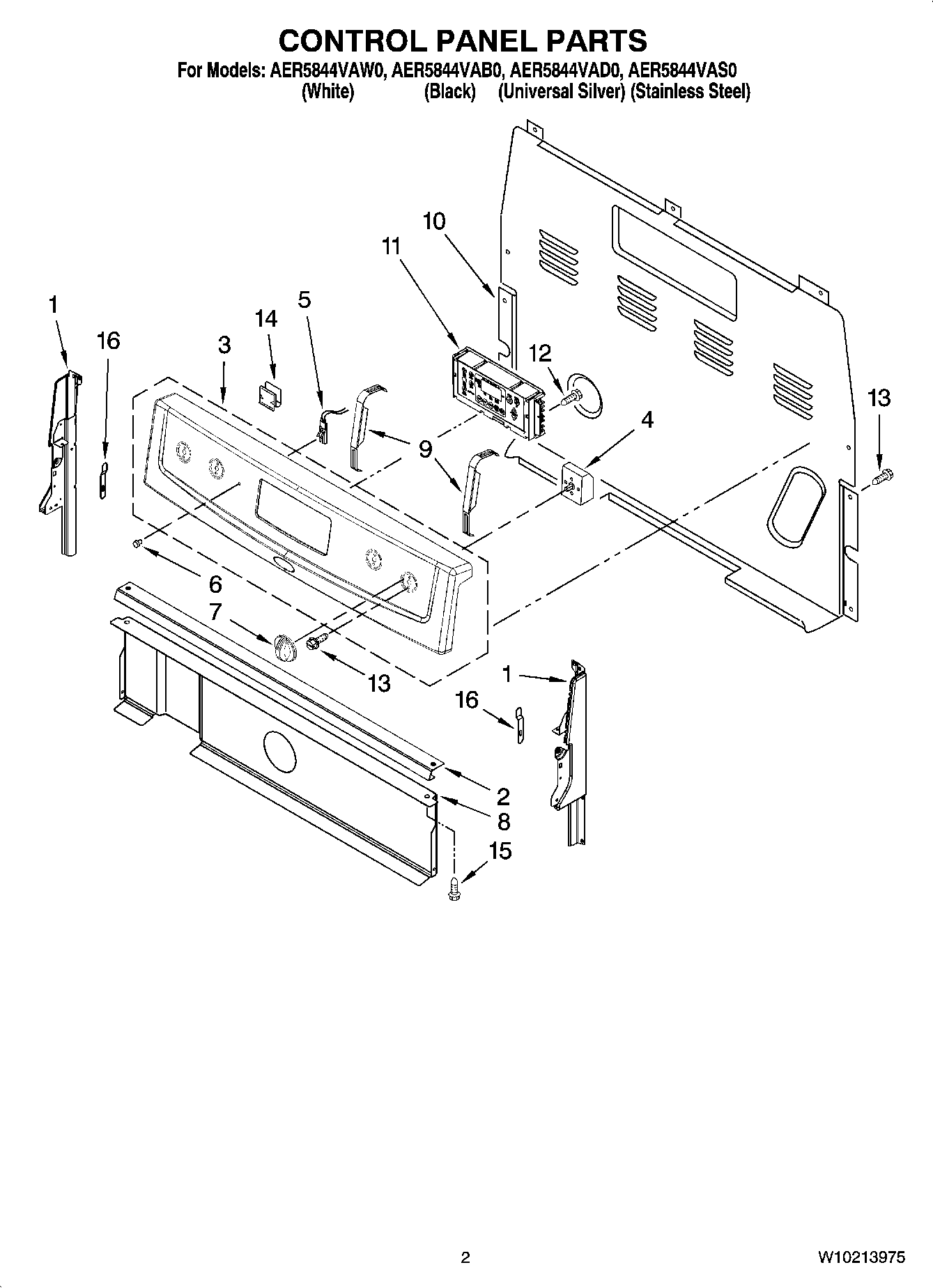

AER5844VAS0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:56:19+00:00AER5844VAS0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10009090 |
| 1 | MAY W10009080 |
| 1 | MAY W10009050 |
| 1 | MAY W10009040 |
| 2 | Bracket, Console |
| 3 | MAY W10170015 |
| 3 | MAY W10170016 |
| 3 | MAY W10170017 |
| 3 | MAY W10170018 |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR) |
| 4 | Switch, Infinite (LF,RF) |
| 5 | MAY 8523265 |
| 6 | MAY 3196068 |
| 7 | KNOB, INFINITE (BLACK) |
| 7 | KNOB, INFINITE (WHITE) |
| 8 | SHIELD, HEAT |
| 9 | MAY W10139863 |
| 10 | COVER, UPPER REAR |
| 11 | MAY W10173500 |
| 11 | MAY W10173501 |
| 12 | SCREW |
| 13 | SCREW |
| 14 | MAY 8273564 |
| 15 | Screw (Black) |
| 15 | Screw (White) |
| 16 | CLIP, SPRING |
