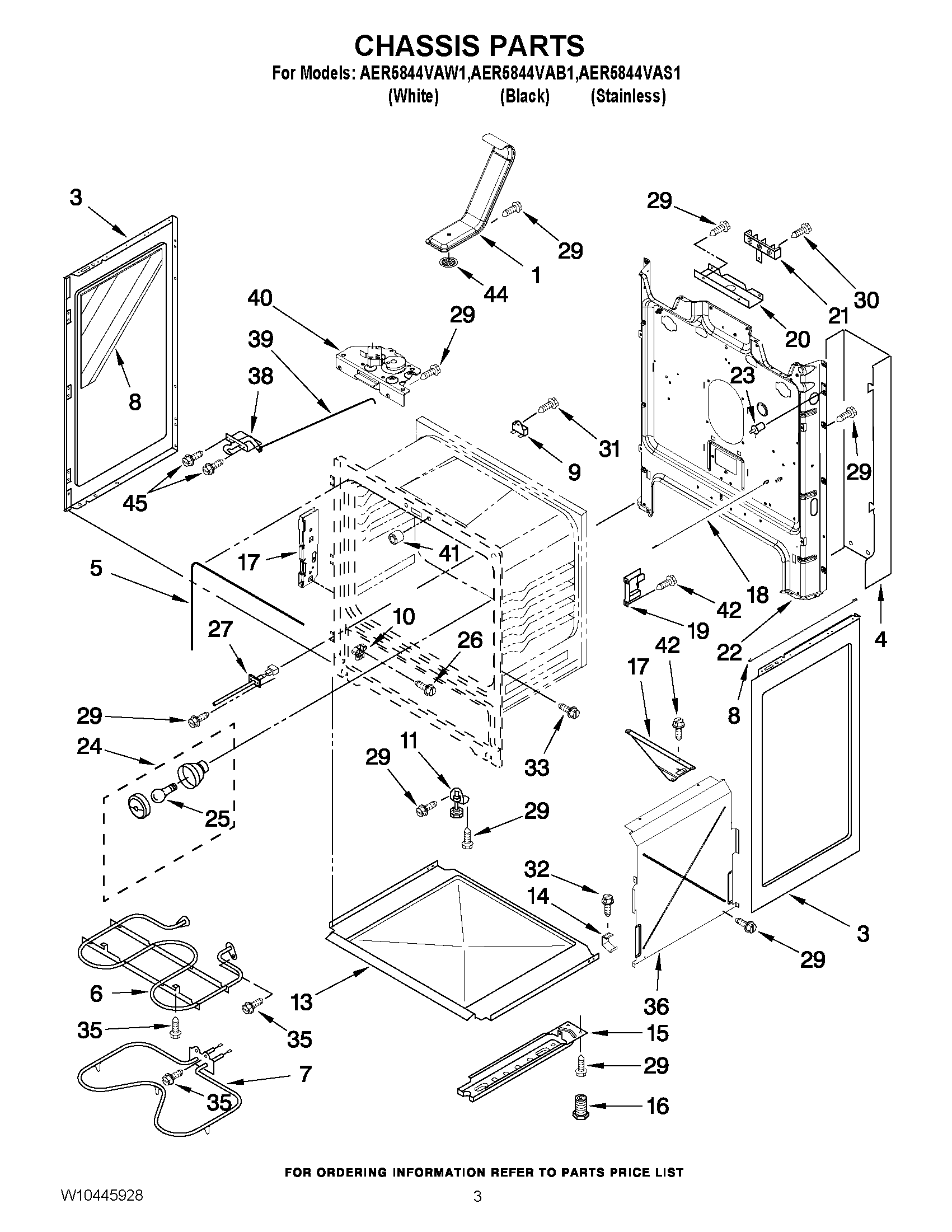

AER5844VAS1 03 – CHASSIS PARTS

AER5844VAS1 03 – CHASSIS PARTS

Written by

in

AER5844VAS1 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10208653
1	TUBE, VENT
3	MAY W10322769
3	MAY W10322770
4	COVER, TERMINAL BLOCK
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	ROD, INSULATION RETAINER
9	FUSE, THERMAL
10	Glide, Drawer
11	ASSEMBLY, FRONT FOOT
13	RETAINER, INSULATION
14	CLIP, PANEL
15	RAIL, BASE
16	FOOT, LEVELING
17	MAY 3192830
18	ROD, DOOR SWITCH
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	KIT, BARE WIRE ADAPTER BLOCK
22	MAY 8274034
23	MAY 9757262
24	MAY 3196701
25	BULB, OVEN LIGHT
26	SCREW
27	SENSOR, OVEN
29	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
35	SCREW
36	RETAINER, INSULATION
38	ASSEMBLY, DOOR LATCH (FRONT)
39	ROD, LATCH
40	ASSEMBLY, DOOR LATCH (REAR)
41	SPACER, DOOR
42	SCREW
44	MAY 9761301
45	SCREW
