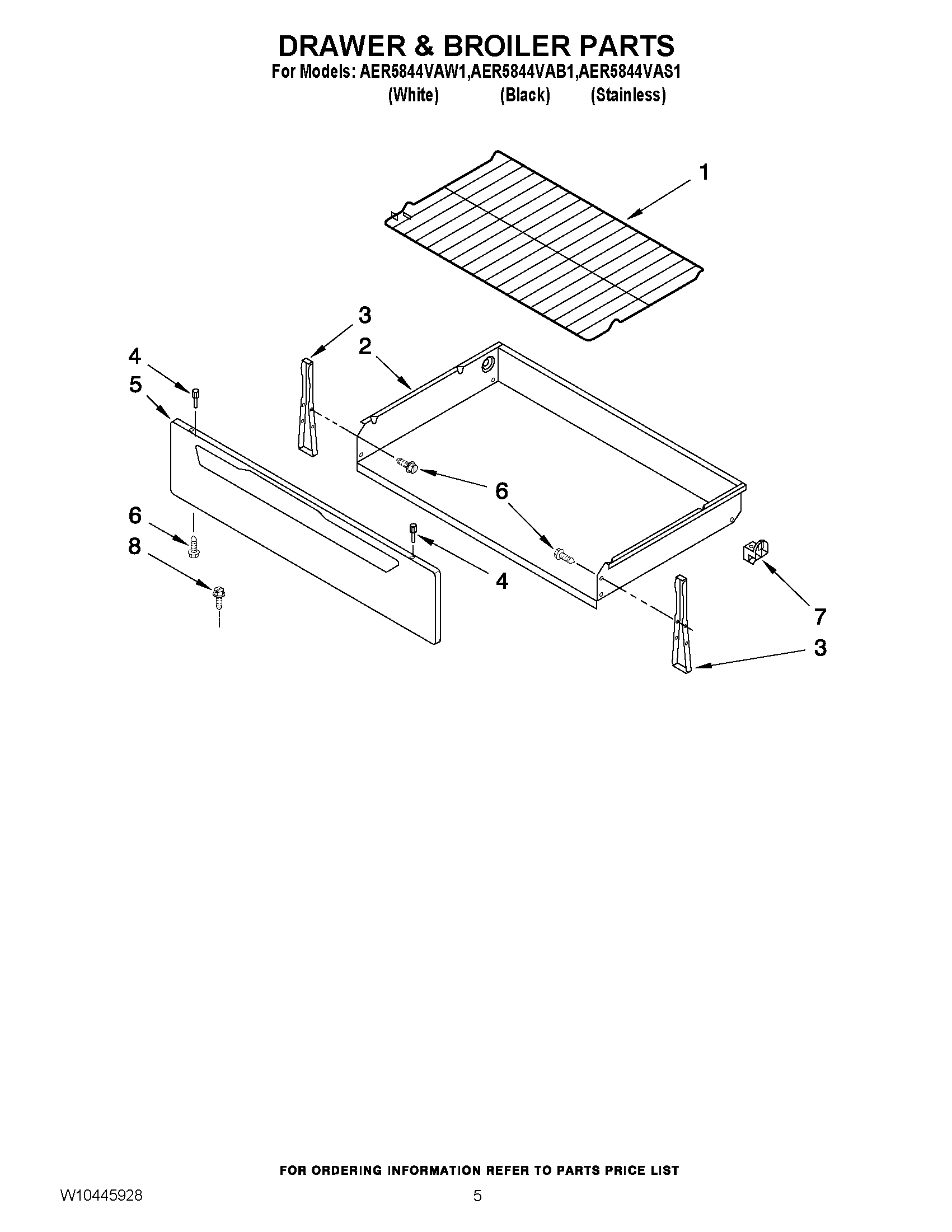

AER5844VAW1 04 – DRAWER & BROILER PARTS

AER5844VAW1 04 – DRAWER & BROILER PARTS

Written by

in

AER5844VAW1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY 9761031
3BRKT-MNTG, DRAWER (STAINLESS)
3WHITE
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5PANEL, DRAWER (SS MODEL)
5PANEL, DRAWER FRONT (BLACK)
5PANEL, DRAWER FRONT (WHITE)
6Screw (Black)
7GLIDE, DRAWER
8SCREW
