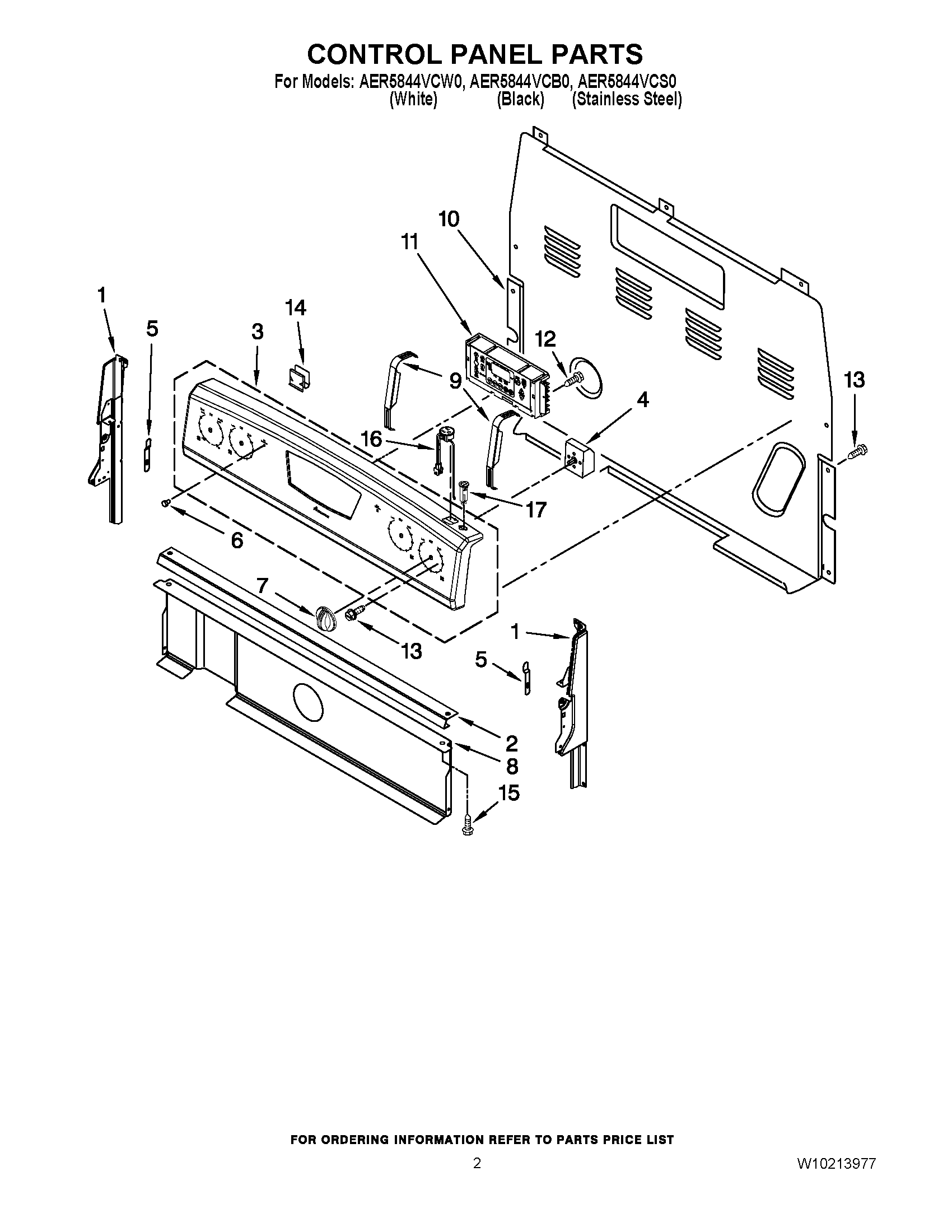

AER5844VCB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
2Bracket, Console
3PANEL, CONTROL (STAINLESS)
3MAY W10170034
3MAY W10170033
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5CLIP, SPRING
6MAY 3196068
7KNOB, INFINITE (WHITE)
7KNOB, INFINITE (BLACK)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11CONTROL, RANGE (WHITE)
11CONTROL, RANGE (BLACK)
12SCREW
13SCREW
14MAY 8273564
15Screw (White)
15Screw (Black)
16RECEPTACLE (WHITE)
17BREAKER, CIRCUIT (WHITE)
