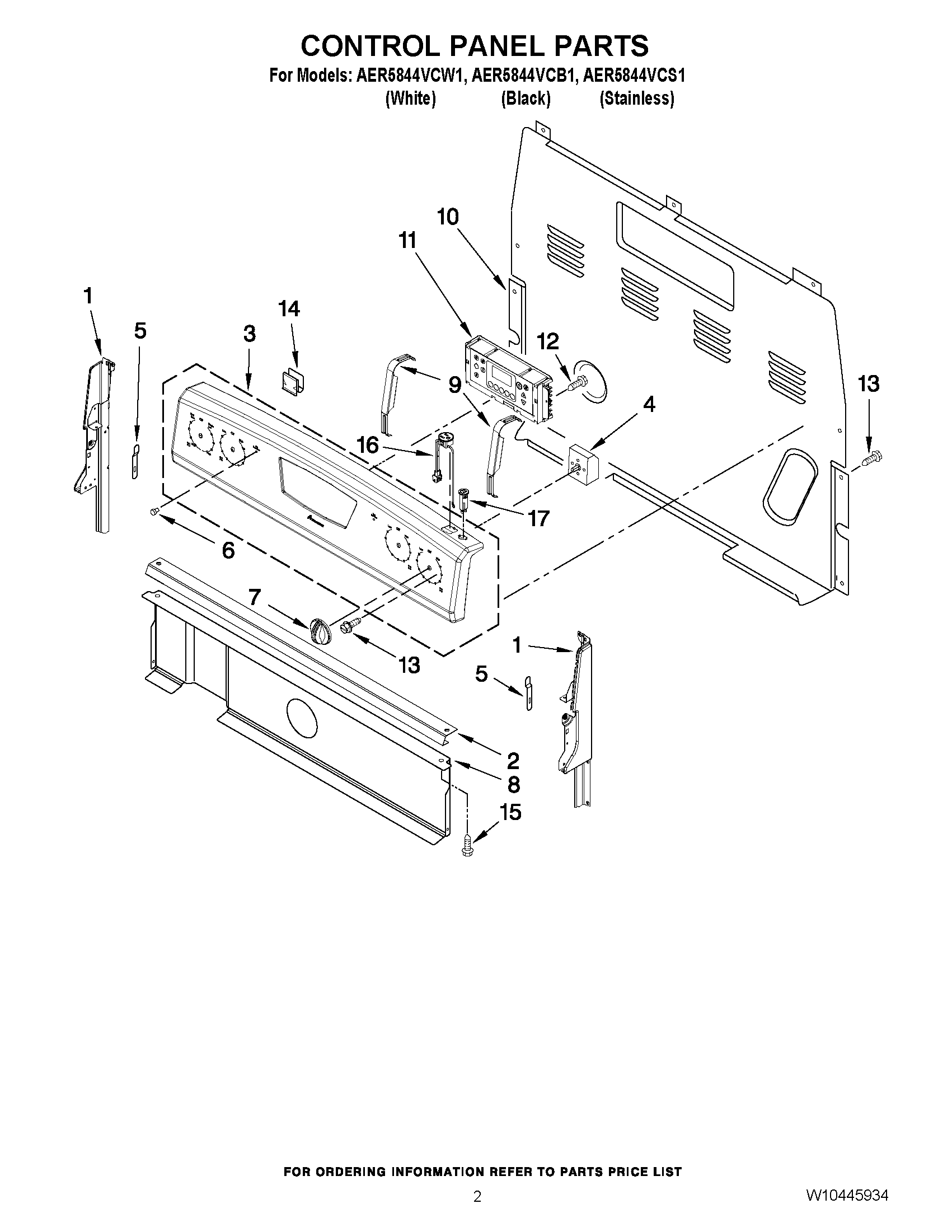

AER5844VCB1 02 – CONTROL PANEL PARTS

AER5844VCB1 02 – CONTROL PANEL PARTS

Written by

in

AER5844VCB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2Bracket, Console
3MAY W10170033
3MAY W10170034
3PANEL, CONTROL (STAINLESS)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5CLIP, SPRING
6MAY 3196068
7KNOB, INFINITE (BLACK)
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, MOUNTING, EOC
10COVER, UPPER REAR
11CONTROL, RANGE (WHITE)
11CONTROL, RANGE (BLACK)
12SCREW
13SCREW
14MAY 8273564
15Screw (White)
15Screw (Black)
16RECEPTACLE (WHITE)
17BREAKER, CIRCUIT (WHITE)
