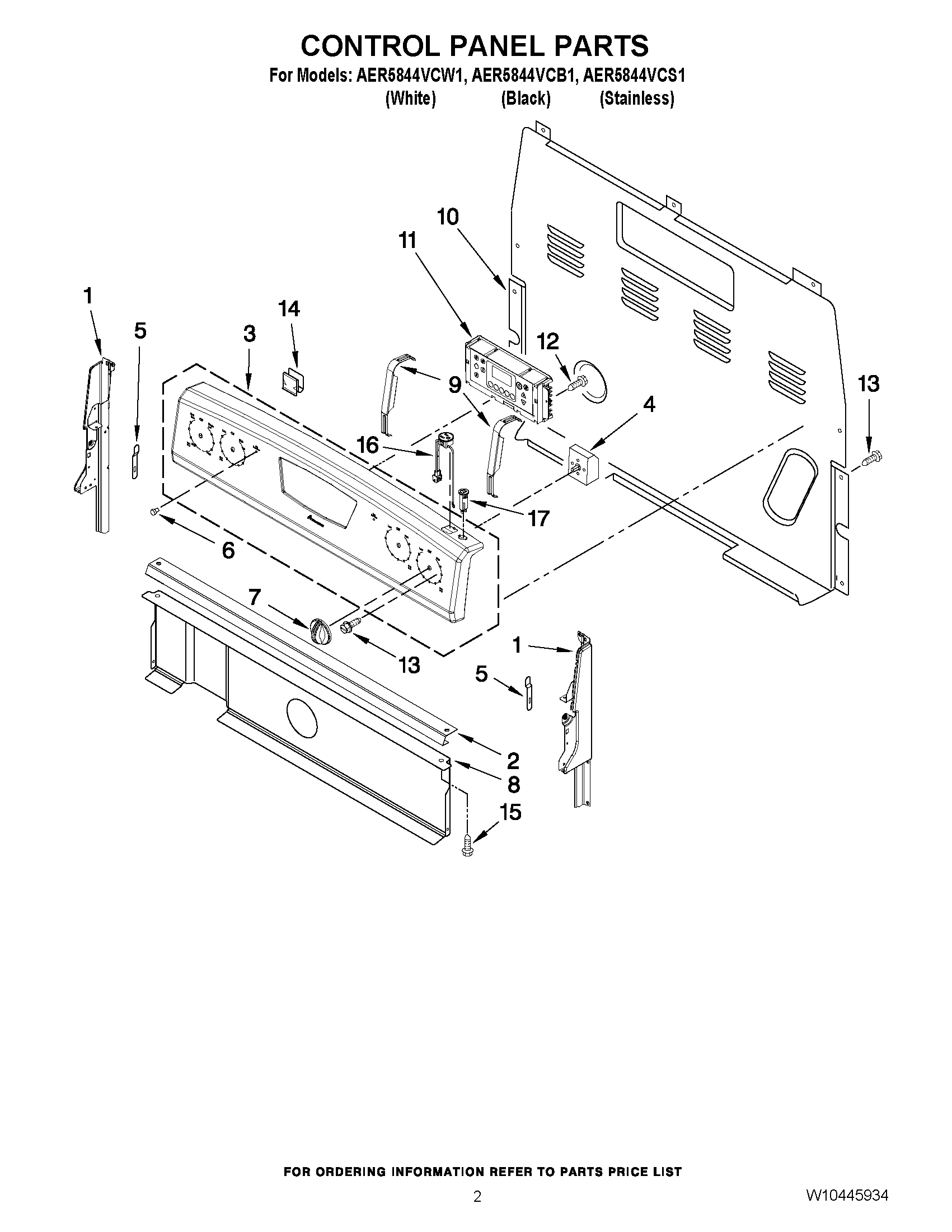

AER5844VCS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	Bracket, Console
3	MAY W10170033
3	MAY W10170034
3	PANEL, CONTROL (STAINLESS)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
5	CLIP, SPRING
6	MAY 3196068
7	KNOB, INFINITE (BLACK)
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	BRACKET, MOUNTING, EOC
10	COVER, UPPER REAR
11	CONTROL, RANGE (WHITE)
11	CONTROL, RANGE (BLACK)
12	SCREW
13	SCREW
14	MAY 8273564
15	Screw (White)
15	Screw (Black)
16	RECEPTACLE (WHITE)
17	BREAKER, CIRCUIT (WHITE)
