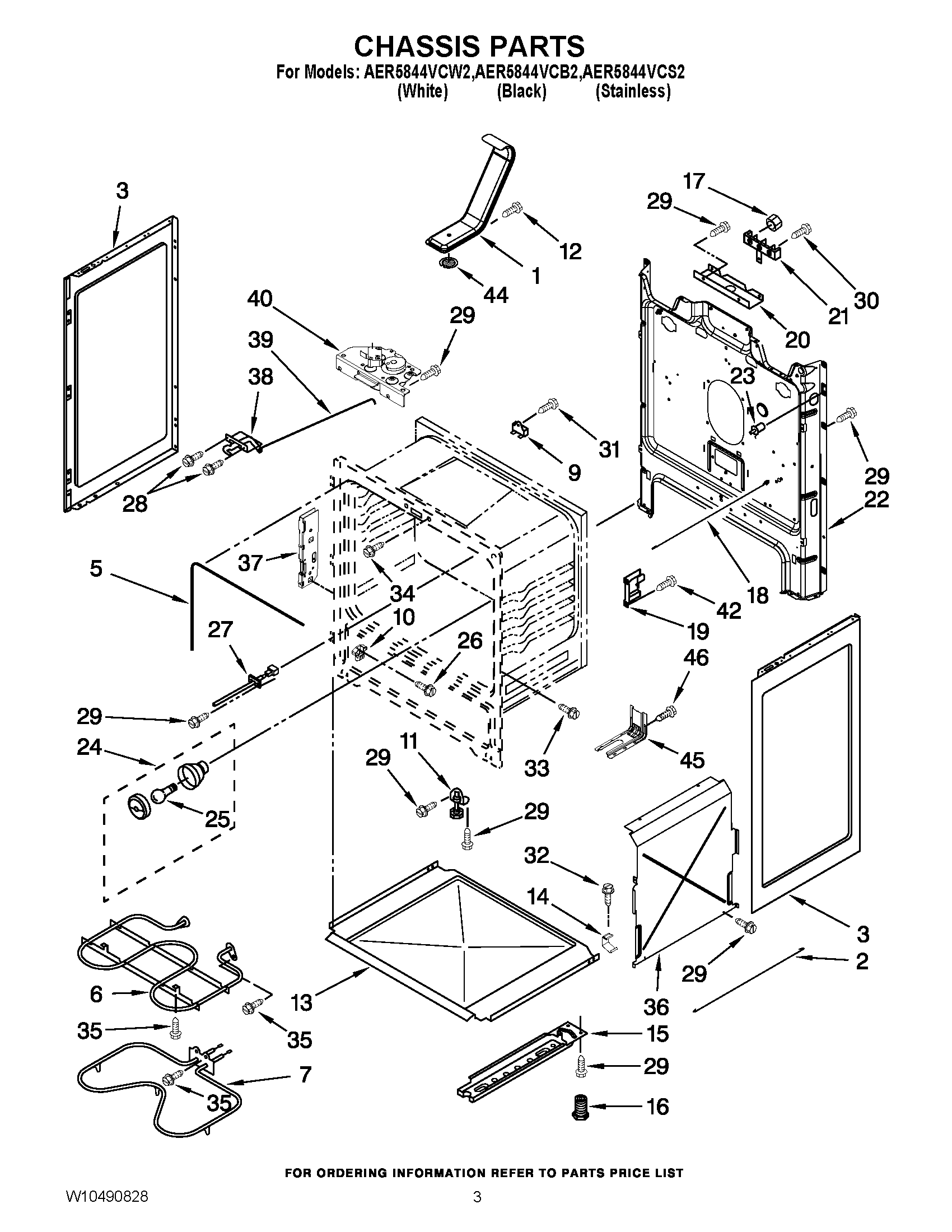

AER5844VCS2 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, FLUE
NI	MAY W10208653
1	TUBE, VENT
2	ROD, INSULATION RETAINER
3	MAY W10322769
3	MAY W10322770
5	MAY 8522416
6	ELEMENT, BROIL
7	ELEMENT, BAKE
9	FUSE, THERMAL
10	GLIDE, DRAWER
11	ASSEMBLY, FRONT FOOT
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (LEFT)
15	ASSEMBLY, BASE RAIL (RIGHT)
16	FOOT, LEVELING
17	WP7103P027-60 Whirlpool Nut
18	ROD, DOOR SWITCH
19	BRACKET, OVEN SUPPORT
20	BRACKET, SERVICE
21	COVER, TERMINAL BLOCK
22	BACK, MAIN
23	MAY 9757262
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
27	SENSOR, OVEN
28	SCREW
30	SCREW
31	SCREW
32	MAY W10031780
33	SCREW
34	SCREW
35	SCREW
36	RETAINER, INSULATION
37	RECEIVER, HINGE
38	ASSEMBLY, DOOR LATCH (FRONT)
39	ROD, LATCH
40	ASSEMBLY, LATCH (REAR)
42	SCREW
44	MAY 9761301
45	BRACKET, ANTI-TIP
46	SCREW, ANTI-TIP KIT
