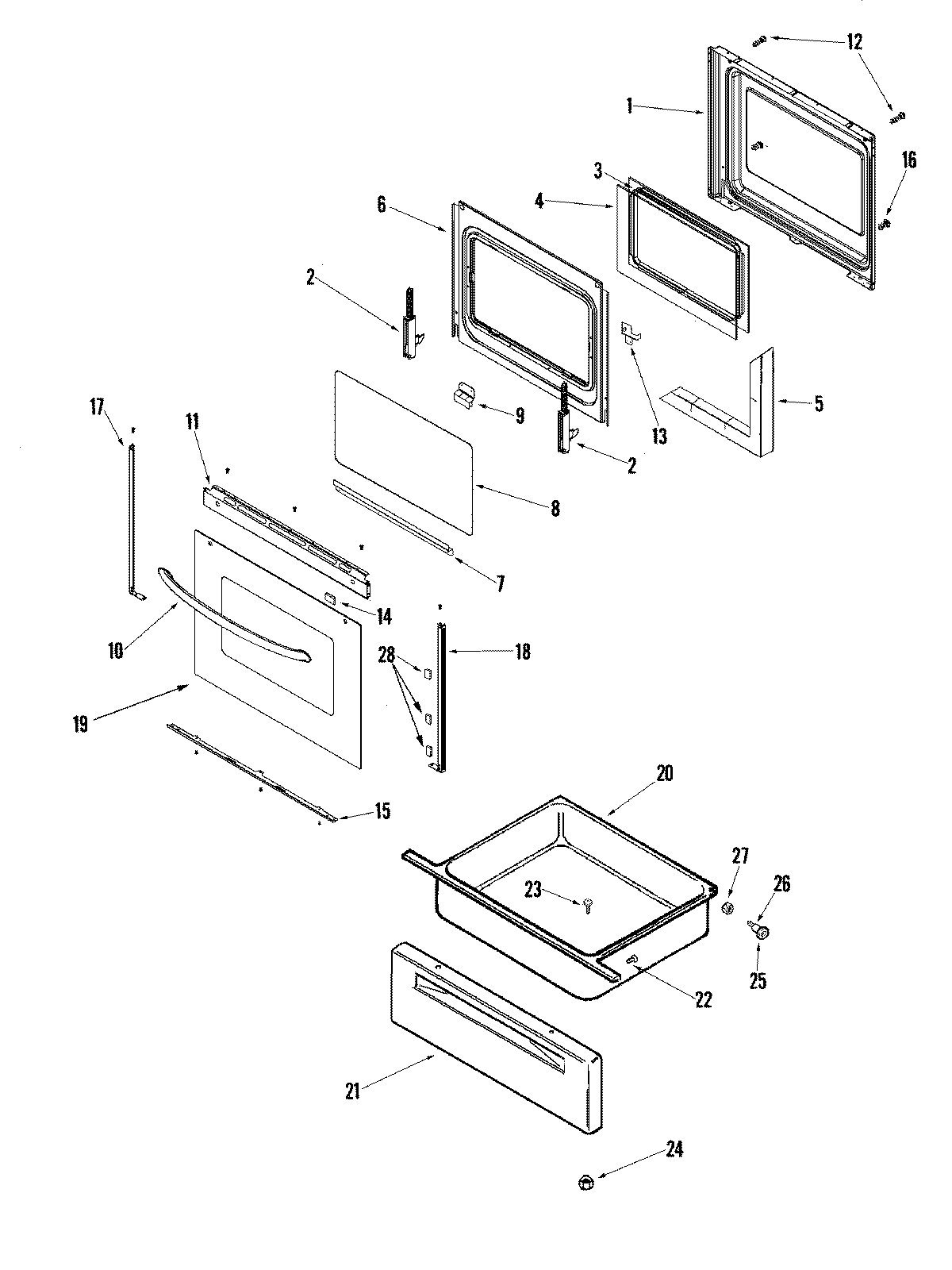

AER5845QAB 04 – DOOR/DRAWER

AER5845QAB 04 – DOOR/DRAWER

Written by

in

AER5845QAB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008742
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10HANDLE, DOOR (BLK)
11WP98008545 Whirlpool Screw
11MAY 74008890
12WP74006515 Whirlpool Washer Screw
13MAY 74008749
13MAY 74008750
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17MAY 74008902
18MAY 74008901
18MAY 74010560
19Glass, Door (Black (Order Item 15 When Replacing Door Glass))
20MAY 74008339
21WP3604F390-51 Whirlpool Shield
21Panel, Drawer (Black)
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
27NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28WP74009025 Whirlpool Double Sided Tape
