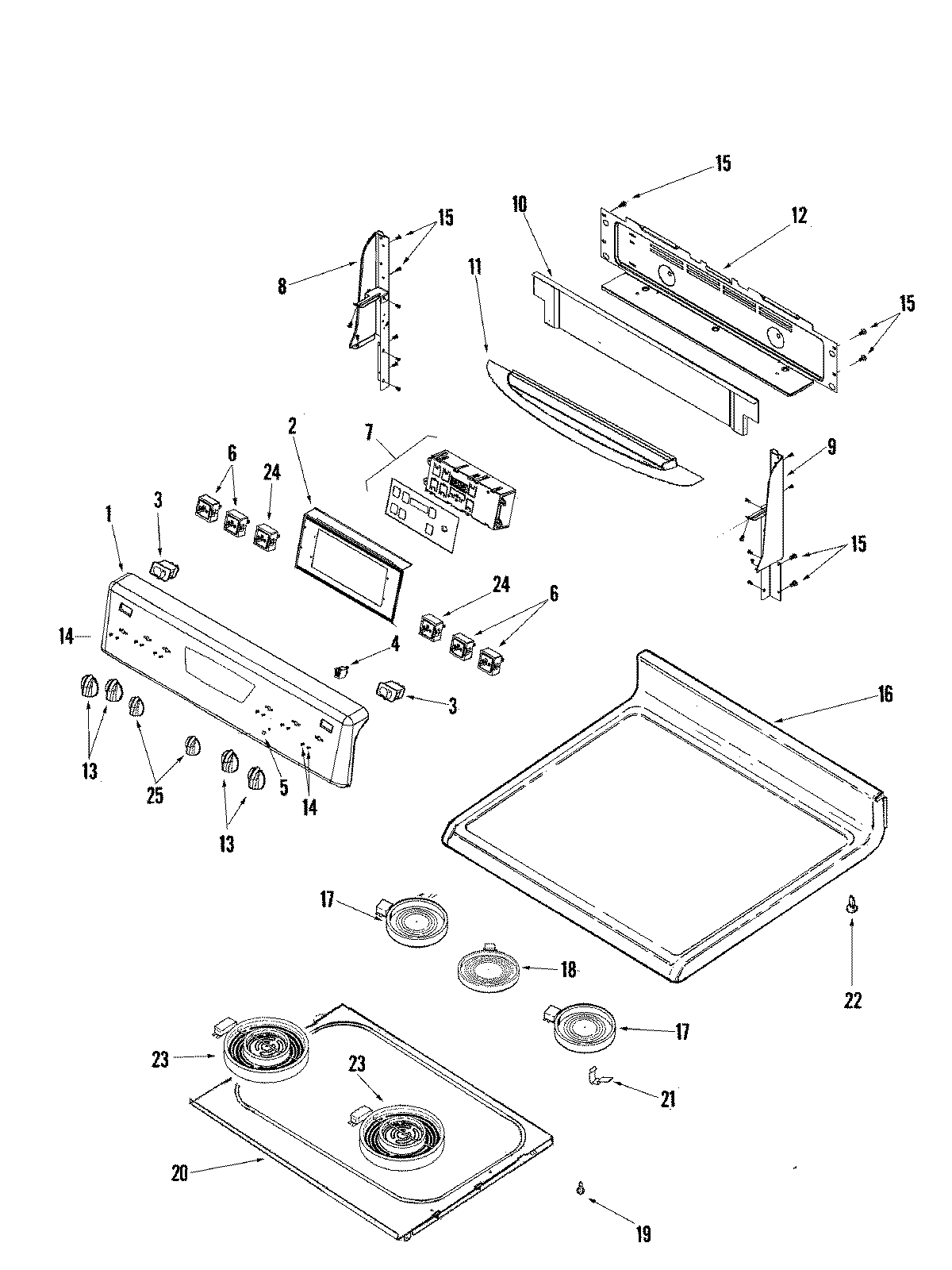

AER5845QAF 03 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
AER5845QAF 03 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74008887
2
MAY 74008716
3
74008717 Whirlpool White Rocker Switch
4
WP74004153 Whirlpool Indicator Light
4
WP903115 Whirlpool Dishwasher Indicator Light
5
WP7730P011-60 Whirlpool Indicator Lens
6
WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7
MAY 74008638
8
Latch Assembly
9
END CAP (RT-WHT)
10
MAY 74008726
10
MAY 74009206
10
MAY 74009207
11
MAY 74008728
11
MAY 74009203
12
MAY 74008730
12
MAY 74008836
14
SCREW
16
MAY 74008535
17
W10823711 Whirlpool Surface Element Left Front and Right Rear
18
MAY 74008898
19
SCREW
20
MAY 74008900
21
SPRING, ELEMENT SUPPORT
22
74008761 Whirlpool Spacer Snap-In
23
W10823692 Whirlpool Dual Radiant Element
24
MAY 74006589
25
MAY 74008911
←
