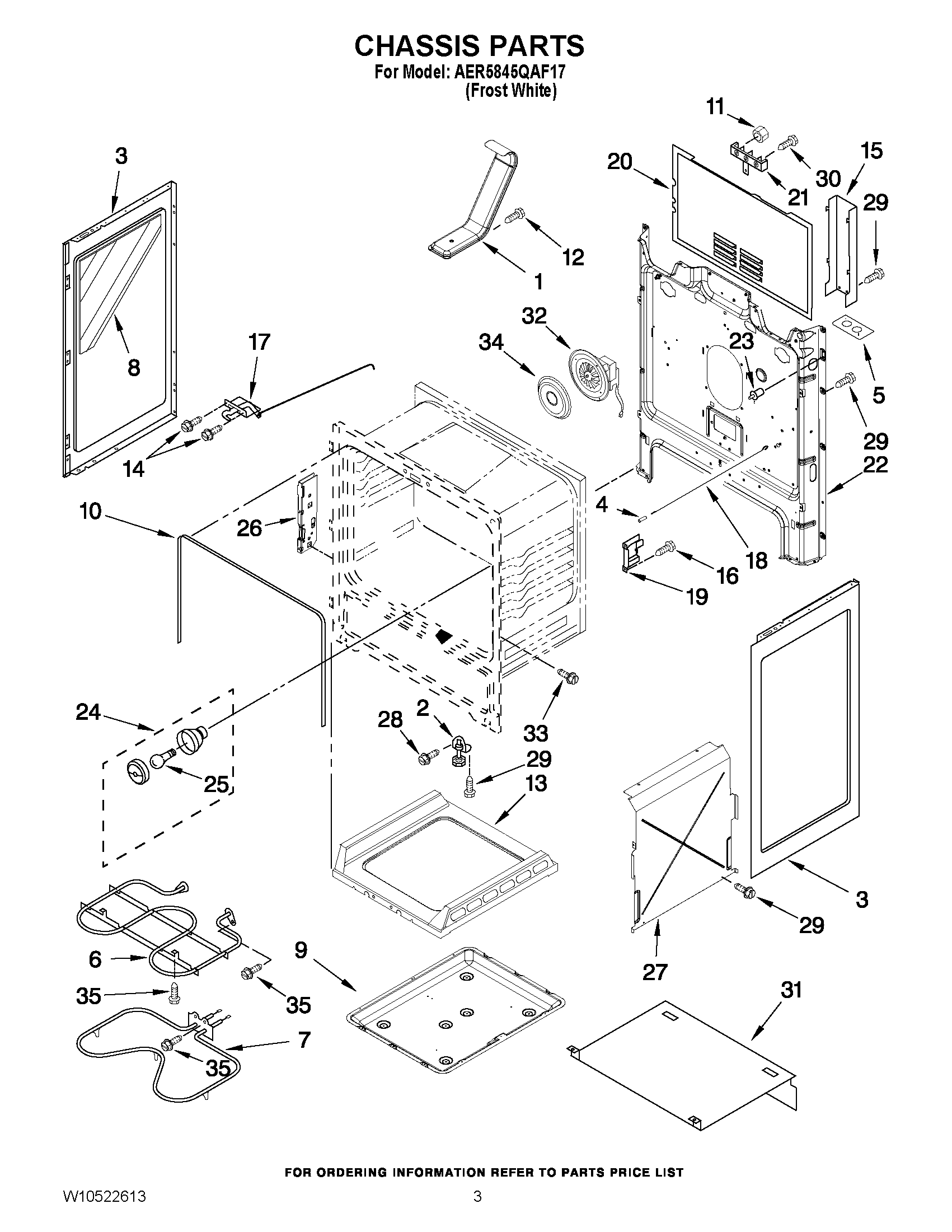

AER5845QAF17 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P457-60
NI	MAY 7002P362-60
NI	MAY 7002P361-60
1	MAY 8026P081-60
2	Leg, Leveling
3	MAY 2618F172-58
4	MAY 8003P035-60
5	PLATE, CONDUIT REINFORCEMENT
6	MAY 7406P355-60
7	MAY 7406P451-60
8	MAY W10182346
9	PAN, BAKE
10	MAY 7201P124-60
11	WP7103P027-60 Whirlpool Nut
12	MAY 3196566
13	MAY 2205F053-19
14	SCREW
15	COVER, WIRE (LWR)
16	SCREW
17	MAY 8002P085-60
18	ROD, DOOR SWITCH
19	MAY 3801P798-51
20	MAY 4005F754-51
21	WPW10245259 Whirlpool Terminal Block
22	MAY 4002F343-51
23	MAY 7403P910-60
24	MAY 7407P181-60
25	MAY 71001867
26	MAY 7106P125-60
27	MAY 3804F311-51
28	Screw
29	SCREW
30	SCREW
31	MAY 3604F396-45
32	Fan Assy, Convect
33	SCREW
34	MAY 3605F305-19
35	SCREW
