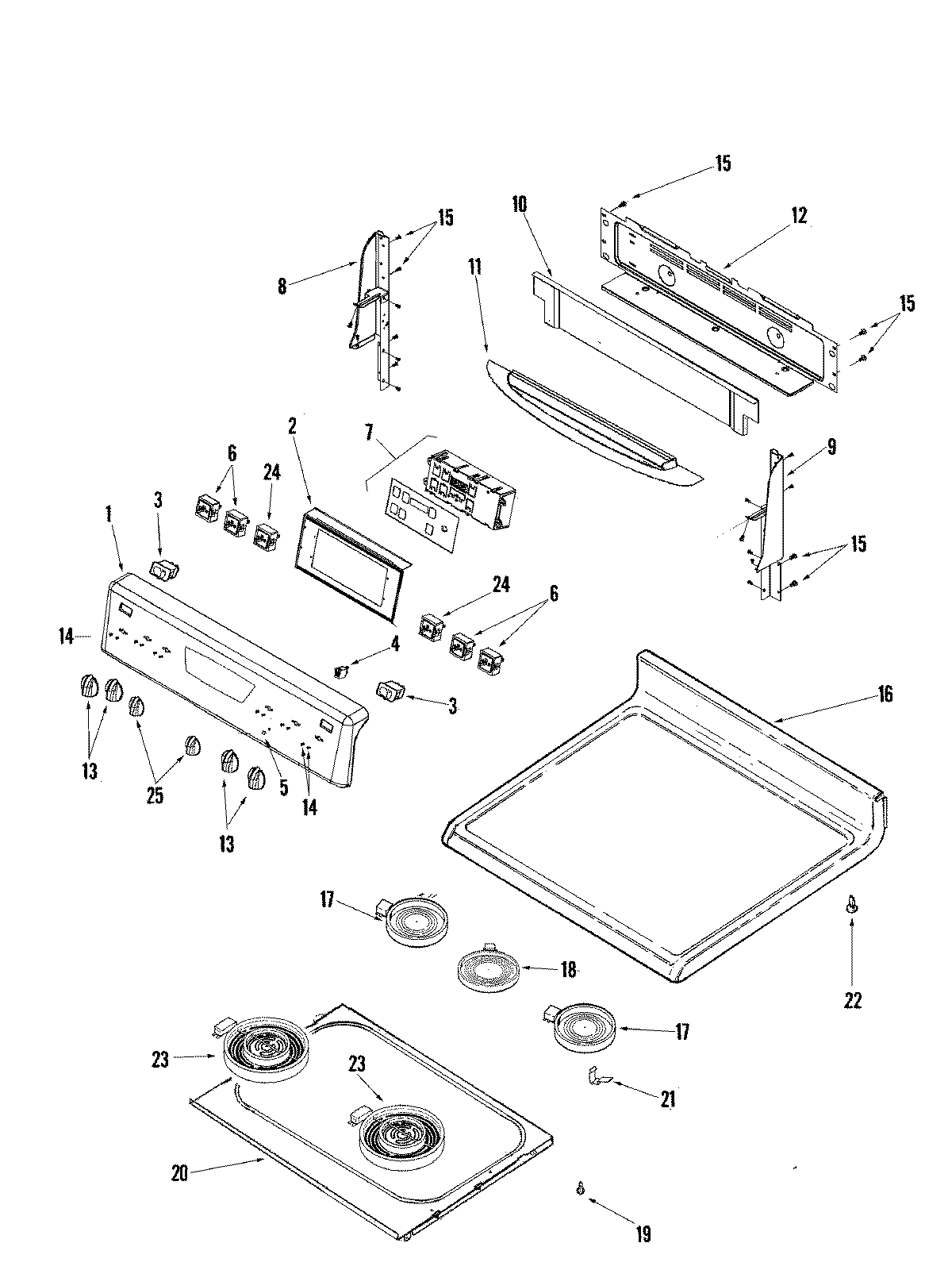

AER5845QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74008888
2MAY 74008716
374008765 Whirlpool Range Oven Rocker Switch Bisque
4WP74004153 Whirlpool Indicator Light
4WP903115 Whirlpool Dishwasher Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74008643
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74008727
10MAY 74009207
11SHIELD, HEAT VISOR (BSQ)
11MAY 74008729
12MAY 74008730
12MAY 74008836
13MAY 74008732
14SCREW
16MAY 74008534
17W10823711 Whirlpool Surface Element Left Front and Right Rear
18MAY 74008898
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24MAY 74006589
25MAY 74008910
