AER5845QAN 04 – DOOR/DRAWER

AER5845QAN 04 – DOOR/DRAWER

Written by

in

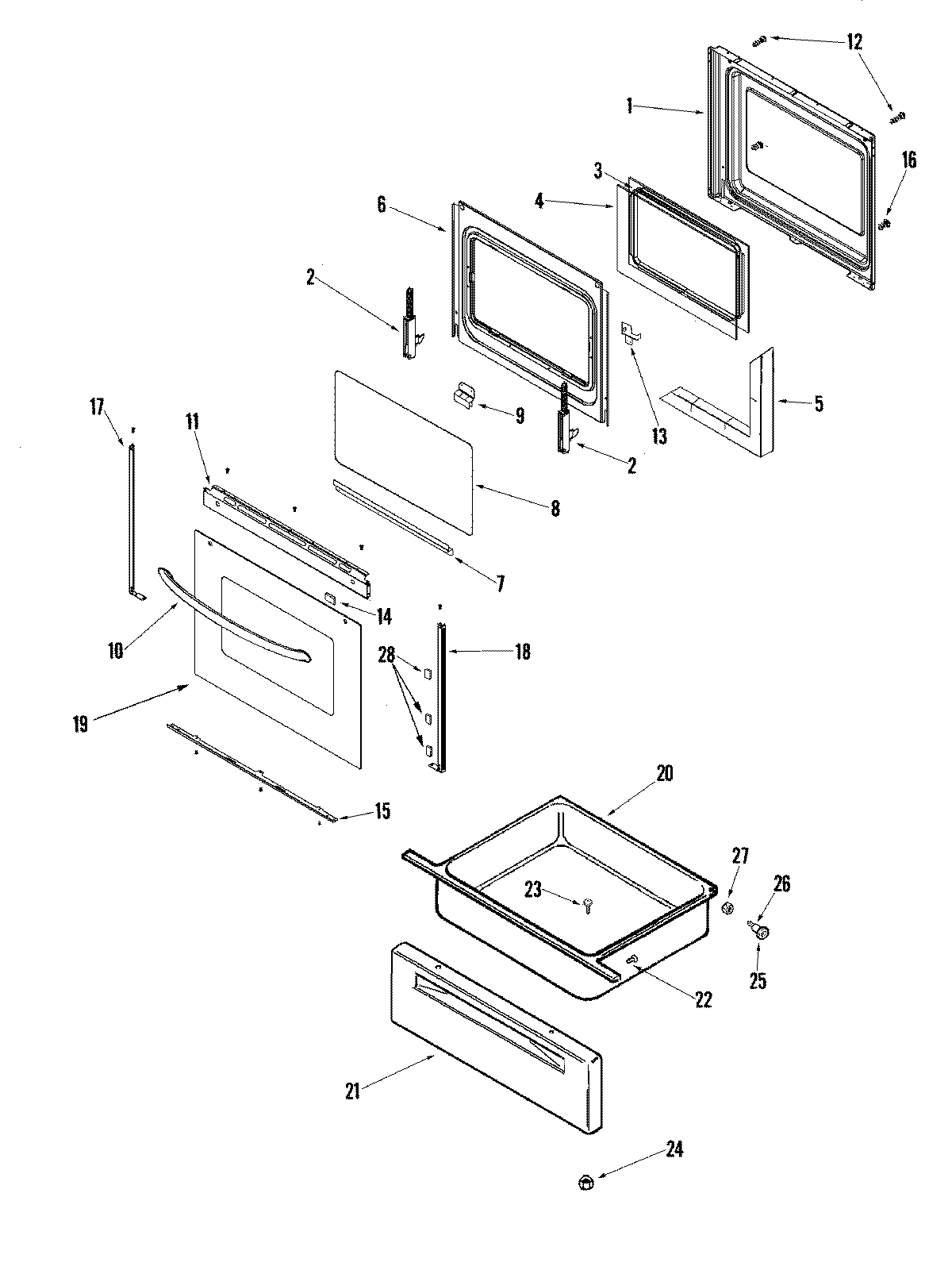

AER5845QAN 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008742
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008323
11WP74009541 Whirlpool Screw Assembly
11MAY 74008748
12WP74006515 Whirlpool Washer Screw
13MAY 74008749
13MAY 74008750
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BSQ)
16SCREW (10-24X5/16-NI)
17MAY 74008754
18MAY 74008752
18TRIM, SIDE (BSQ)
19GLASS, DOOR (BSQ)
20MAY 74008339
21WP3604F390-51 Whirlpool Shield
21MAY 74008756
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
27NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
28WP74009014 Whirlpool Double Tape
